JUMO tecLine pH – kombinuotas pH elektrodas

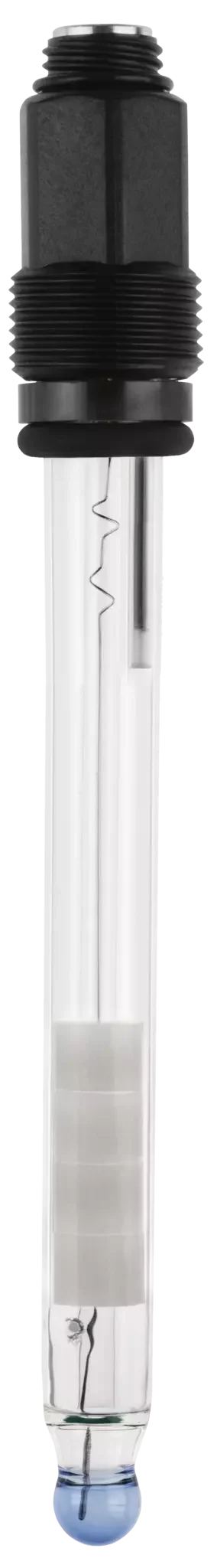

JUMO tecLine pH – combined pH electrode

Process analyzers and sensors, Water analysis

Fields of application

JUMO tecLine pH is an industrial electrode for measuring the pH value of water and aqueous solutions. It is used in drinking water and wastewater treatment systems and for industrial process control. Glass or plastic housing versions are available, adapted to different temperatures and chemical media.



Features:

  • pH measurement range from 0 to 14
  • Glass or plastic housing
  • Ceramic, fiberglass or PTFE diaphragm
  • Operating temperature up to +135 °C
  • Pressure resistance up to 10 bar
  • Integrated Pt100 or Pt1000 temperature sensor available
  • Various electrode lengths and connection types
  • Suitable for industrial and water treatment systems
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Measured parameter

    pH

  • Measurement range

    0-12 or 0-14 pH

  • Operating temperature

    –5 to +135°C

  • Maximum pressure

    10 bar (at 50 °C)

  • Housing material

    Glass, PEI or PSU

  • Types of active glass

    UW, HA, HT

  • Aperture

    Ceramic, fiberglass, PTFE or ring

  • Installation length

    120 or 225 mm

  • Connection

    Pg13.5 (S8 or VP)

  • Temperature sensor

    Pt100 / Pt1000 (optional)

AVAILABLE MODELS

DOCUMENTS

  • Brochure: Liquid Analysis

    10.32 MB

    Download

  • Brochure: Product range – (overview in DIN A4 format)

    5.62 MB

    Download

  • Brochure: Information leaflet: Well monitoring with JUMO products: from sensor to JUMO cloud

    457.81 KB

    Download

  • Brochure: pH measurement in a flue gas desulfurization unit (FGD)

    686.03 KB

    Download

  • Brochure: JUMO AQUIS touch series – modular multi-channel liquid analysis measuring instrument with integrated controller and paperless recorder.

    7.87 MB

    Download

  • Brochure: Water and Wastewater

    9.87 MB

    Download

  • Brochure: Product range

    9.72 MB

    Download

  • Product Checklist: pH / ORP (Redox)

    337.1 KB

    Download

  • Instructions for use: pH/redox electrodes (composite electrodes)

    293.45 KB

    Download

  • Technical Guide: pH Measurement

    2.36 MB

    Download

  • Technical data sheet: JUMO tecLine pH, JUMO tecLine Rd – pH and redox potential measurement electrodes – 201020

    649.22 KB

    Download

  • Certificate: China RoHS-20 – JUMO tecLine pH

    98.49 KB

    Download

  • Data sheet: JUMO tecLine pH, JUMO tecLine Rd with annular gap or perforated membrane

    85.61 KB

    Download

  • Order information: 201020

    125.39 KB

    Download

  • Assembly instructions: KCl connector for glass combination electrodes

    206.99 KB

    Download

  • Installation instructions: Electrode holder for pH and redox electrodes with PTFE annular diaphragm or annular gap diaphragm.

    112.69 KB

    Download

  • EU Declaration of Conformity: JUMO tecLine pH

    164.23 KB

    Download

  • UK Declaration of Conformity: JUMO tecLine pH

    439.32 KB

    Download
