Badger Meter NephNet nešiojamas vandens drumstumo matuoklis

Fields of application

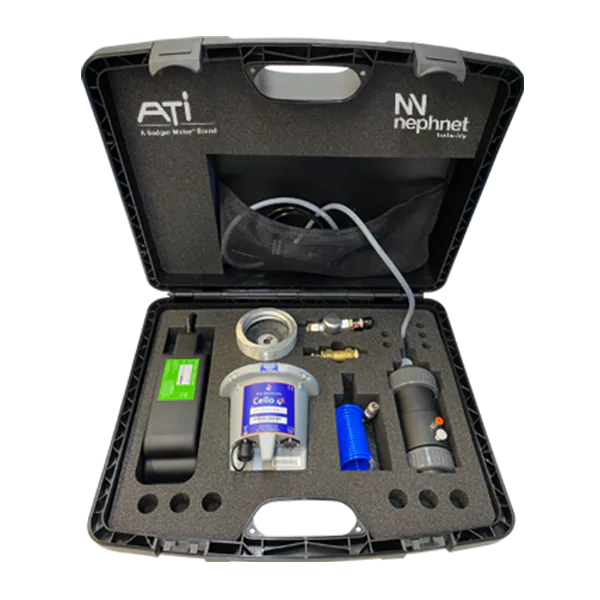

Badger Meter NephNet is a portable water turbidity meter designed for continuous monitoring of water supply network quality. The battery-powered device allows real-time turbidity recording, remote data transmission and rapid detection of water quality changes. Suitable for water supply cleaning control and long-term monitoring.

Features:

Portable, battery-powered turbidity meter

Continuous monitoring of water turbidity

Measuring range up to 400 NTU

High accuracy in measuring low turbidity

Quick connection to water hydrants

Wireless data transfer and alerts

Several versions of the RTU communication module are available

Data viewing on the online platform or app, depending on the version

SPECIFICATIONS
AVAILABLE MODELS
DOCUMENTS

SPECIFICATIONS

Type
Portable water turbidity meter
Model
NephNet
Manufacturer
Badger Meter / ATi
Dedicated
Turbidity monitoring of water supply networks
Measuring principle
Nephelometric, 90° light scattering
Measurement ranges
0–4, 0–40, 0–400 NTU
Factory measurement range
0-20 NTU
Measurement accuracy
±5 % reading or ±0.02 NTU, whichever is greater
Linearity
0.1 % full scale
Response time
95 % in 10 seconds
Sensor temperature
0…+50 °C
Maximum water pressure
6 bar
Sensor power supply
9-36V DC
Sensor output signal
400–2000 mV
Sensor housing
Delrin
Optical cells
Acrylic
Measuring chamber material
PVC
Measuring camera connections
6 mm tube connectors
Communication module versions
ClamNet RTU or Technolog Cello 4S RTU
Data transfer
Cellular connection, Bluetooth connection available
Security class
IP68, depending on RTU version
Available accessories
Hydrant adapter, LCD display, external antenna (depending on version)
RTU version
Cello 4S RTU, ClamNet RTU (Bluetooth)
