JUMO tecLine HD – pramoninis pH elektrodas

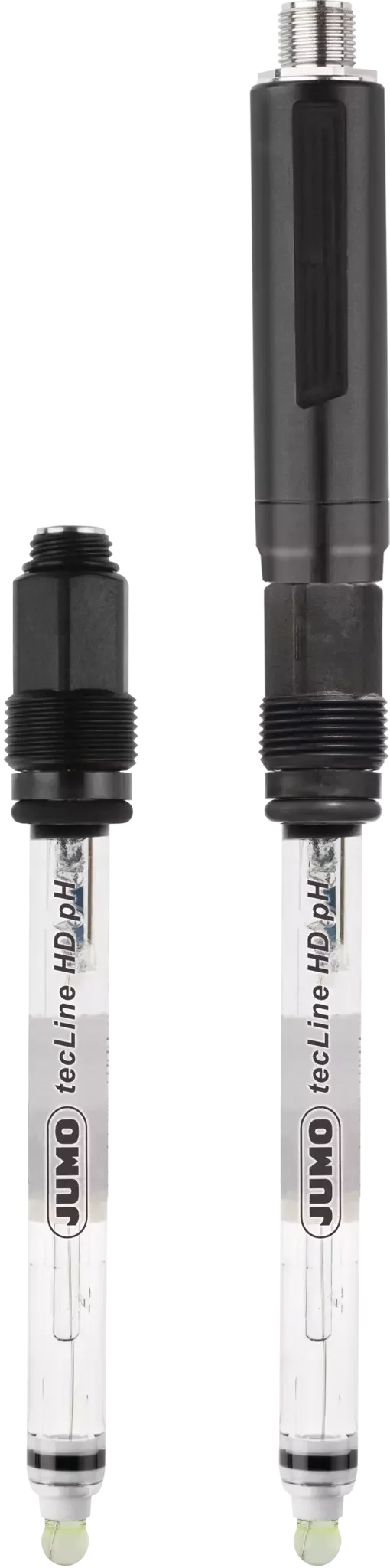

JUMO tecLine HD – industrial pH electrode

Process analyzers and sensors, Water analysis

Fields of application

JUMO tecLine HD is a high-quality industrial pH electrode for measuring the pH of water and complex chemical media. Resistant to contamination, oil and high temperatures, it is ideal for monitoring wastewater treatment, the chemical industry, energy and other technological processes.



Features:

  • pH measurement range from 0 to 14
  • Temperature resistance up to +135 °C
  • Maximum working pressure – 13 bar
  • PTFE ring or hole diaphragm
  • Dual chamber system to prevent contamination
  • Long service life and minimal maintenance
  • Integrated Pt1000 temperature sensor available
  • Compatible with JUMO digiLine technology
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Measured parameter

    pH

  • Measurement range

    0-14 pH

  • Operating temperature

    0–135 °C (PTFE), 0–110 °C (slotted diaphragm)

  • Maximum pressure

    13 bar

  • Housing material

    Glass

  • Membrane

    HT glass, resistant to alkaline media

  • Aperture

    PTFE ring or hole

  • Temperature sensor

    Pt1000 (optional)

  • Installation length

    120 or 225 mm

  • Connection

    Pg13.5, S8 or VarioPin (VP)

  • Security class

    IP66 / IP67

  • Recommended conductivity

    ≥50 µS/cm (PTFE), ≥500 µS/cm (hole)

AVAILABLE MODELS

DOCUMENTS

  • Brochure: Liquid Analysis

    10.32 MB

    Download

  • Brochure: Product range – (overview in DIN A4 format)

    5.62 MB

    Download

  • Brochure: Chemical Industry

    7.93 MB

    Download

  • Brochure: Aquaculture Technologies

    8.42 MB

    Download

  • Brochure: Water and Wastewater

    9.87 MB

    Download

  • Brochure: JUMO digiLine – the intelligent, bus-compatible digital sensor connection system for liquid analysis

    5.24 MB

    Download

  • Brochure: JUMO mTRON T – Your system – Scalable measurement, control and automation system

    7.85 MB

    Download

  • Brochure: Product range

    9.72 MB

    Download

  • Product Checklist: pH / ORP (Redox)

    337.1 KB

    Download

  • Instructions for use: pH/redox electrodes (composite electrodes)

    293.45 KB

    Download

  • Technical Guide: pH Measurement

    2.36 MB

    Download

  • Technical data sheet: JUMO tecLine HD pH/Rd – combined pH and redox electrodes: digital (with reusable JUMO digiLine electronics) or analog.

    563.69 KB

    Download

  • Certificate: China RoHS-20 – JUMO tecLine HD

    98.49 KB

    Download

  • Order information: 201021

    122.01 KB

    Download

  • UK Declaration of Conformity: JUMO tecLine HD„

    179.13 KB

    Download

  • EU Declaration of Conformity: JUMO tecLine HD„

    163.91 KB

    Download

  • Installation instructions: Electrode holder for pH and redox electrodes with PTFE annular diaphragm or annular gap diaphragm.

    112.69 KB

    Download
