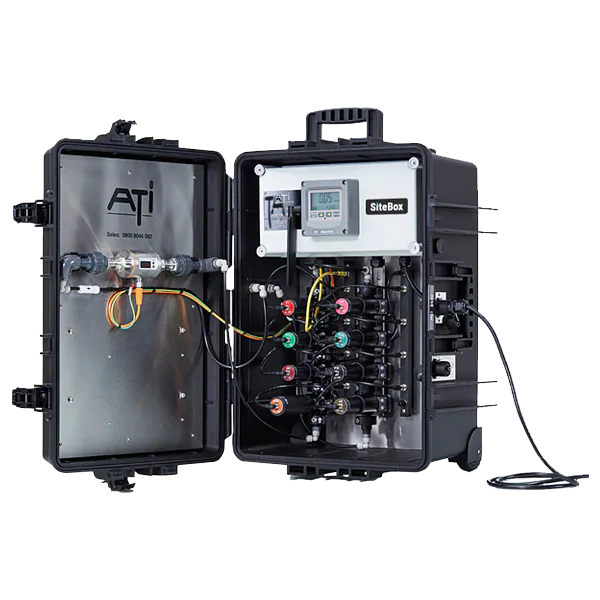

Badger Meter SiteBox portable water quality monitoring station

SPECIFICATIONS

• Type

  Portable multi-parameter water quality monitoring system

• Model

  SiteBox

• Dedicated

  Quality control of drinking and process water

• Number of sensors

  1–8 M-Node sensors

• Number of measurement flows

  1–3

• Available measurement parameters

  Chlorine, turbidity, pH, conductivity, ORP, dissolved oxygen, ozone, fluorides, nitrites, pressure, etc.

• Free chlorine range

  0-5 ppm

• Turbidity range

  0-40 NTU

• pH range

  pH 2-12

• Conductivity range

  0–2000 µS (depending on the selected sensor)

• Dissolved oxygen range

  0-20 ppm

• Data transfer

  RS485/Modbus, Ethernet, digital interface

• Sensor connection protection

  IP67

• Measuring chamber operating pressure

  Up to 6 bar

• Data collection

  Internal memory, SD card

• Operating modes

  Continuous or cyclic measurement

• Control functions

  2 alarm limits, calibration reminders, sensor diagnostics

• Additional options

  Flow switch, remote data transmission

• Available accessories

  M-Node sensors, flow chambers, portable M-Node calibrator

• Power supply

  12-24 V DC, Mains (AC), Battery
