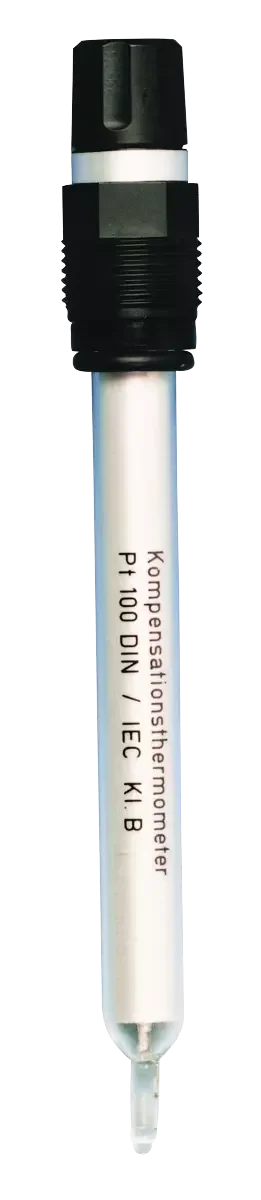

JUMO – temperatūros kompensavimo jutiklis pH matavimams

JUMO – temperature compensated sensor for pH measurements

Process analyzers and sensors, Water analysis

Fields of application

JUMO temperature compensation sensor – a temperature measuring device designed to compensate for temperature effects in pH and other electrochemical measurements. The sensor measures the temperature of the medium and transmits a signal to a controller, which converts the measurement results to a reference temperature of 25 °C. Used in water analysis and industrial process control systems.



Features:

  • Temperature measurement range from -20 to +150 °C
  • Pt100 or Pt1000 measuring elements
  • Accuracy class B according to DIN/IEC
  • Glass housing, resistant to chemical media
  • Pressure resistance up to 10 bar
  • S7, S8 or M12 connections available
  • Standard installation length – 120 mm
  • Suitable for automatic temperature compensation in pH measurement systems
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Device type

    Temperature compensation sensor

  • Measurement range

    –20 to +150°C

  • Measuring element

    Pt100 or Pt1000

  • Accuracy class

    B (DIN/IEC)

  • Wiring diagram

    2 or 3 wires

  • Maximum pressure

    10 bar at +25 °C

  • Pressure at +80 °C

    1 bar

  • S7 connector version

    Working without pressure

  • Housing material

    Glass (DIN 19263)

  • Head material

    PPO plastic

  • Connectors

    S7, S8 (Pg13.5), M12

  • Installation length

    120mm

  • Housing diameter

    12 mm

  • Sealant

    FPM70

  • Applications

    Temperature compensation for pH and electrochemical measurements
