JUMO tecLine HY Redox – higieninis ORP elektrodas

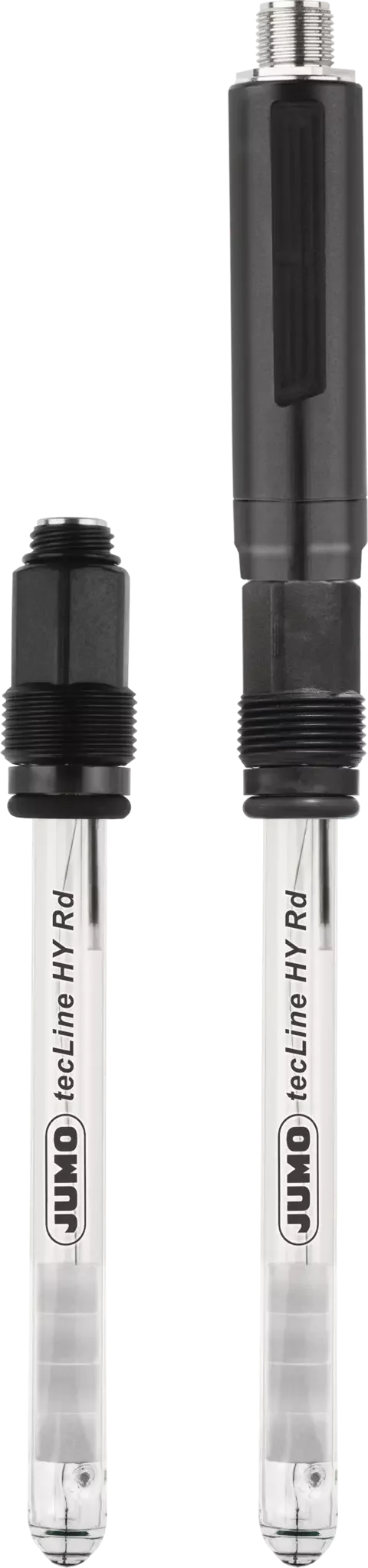

JUMO tecLine HY Redox – hygienic ORP electrode

Process analyzers and sensors, Water analysis

Fields of application

JUMO tecLine HY Redox is a hygienic electrode for measuring the oxidation-reduction potential (ORP) of water and aqueous solutions. It is used in the food, beverage and pharmaceutical industries, in sterilization and fermentation processes. It is resistant to high temperatures, ensuring stable measurement results and a long service life.



Features:

  • ORP measurement range ±1500 mV
  • Platinum or gold measuring tip
  • Operating temperature up to +135 °C
  • Pressure resistance up to 6 bar
  • High quality zirconia diaphragm
  • Suitable for CIP and SIP cleaning and sterilization processes
  • Certified biocompatibility according to EN ISO 10993-5
  • Durable design with integrated salt reservoir
  • Compatible with JUMO digiLine technology
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Measured parameter

    ORP (Redox)

  • Measurement range

    ±1500mV

  • Measuring element

    Platinum (Pt) or gold (Au)

  • Operating temperature

    0-135°C

  • Maximum pressure

    6 bar

  • Housing material

    Glass

  • Aperture

    Zirconia Ceramics

  • Reference system

    Ag/AgCl

  • Installation length

    120 or 225 mm

  • Connection

    S8, Pg13.5

  • Security class

    IP66 / IP67

  • Minimum recommended conductivity

    50 µS/cm

  • Digital link

    JUMO digiLine (optional)

  • Applications

    Food, pharmaceutical industry, sterilization and fermentation

AVAILABLE MODELS

DOCUMENTS

  • Brochure: Aquaculture Technologies

    8.42 MB

    Download

  • Technical Guide: Redox Potential Measurement

    1.1 MB

    Download

  • Technical data sheet: JUMO tecLine HY pH/Rd – combined pH and redox electrodes: digital (with reusable JUMO digiLine electronics) or analog.

    595.99 KB

    Download

  • Certificate: China RoHS-20 – JUMO tecLine HY„

    98.5 KB

    Download

  • Order information: 201027

    118.65 KB

    Download

  • EU Declaration of Conformity: JUMO tecLine HY Rd„

    164.8 KB

    Download
