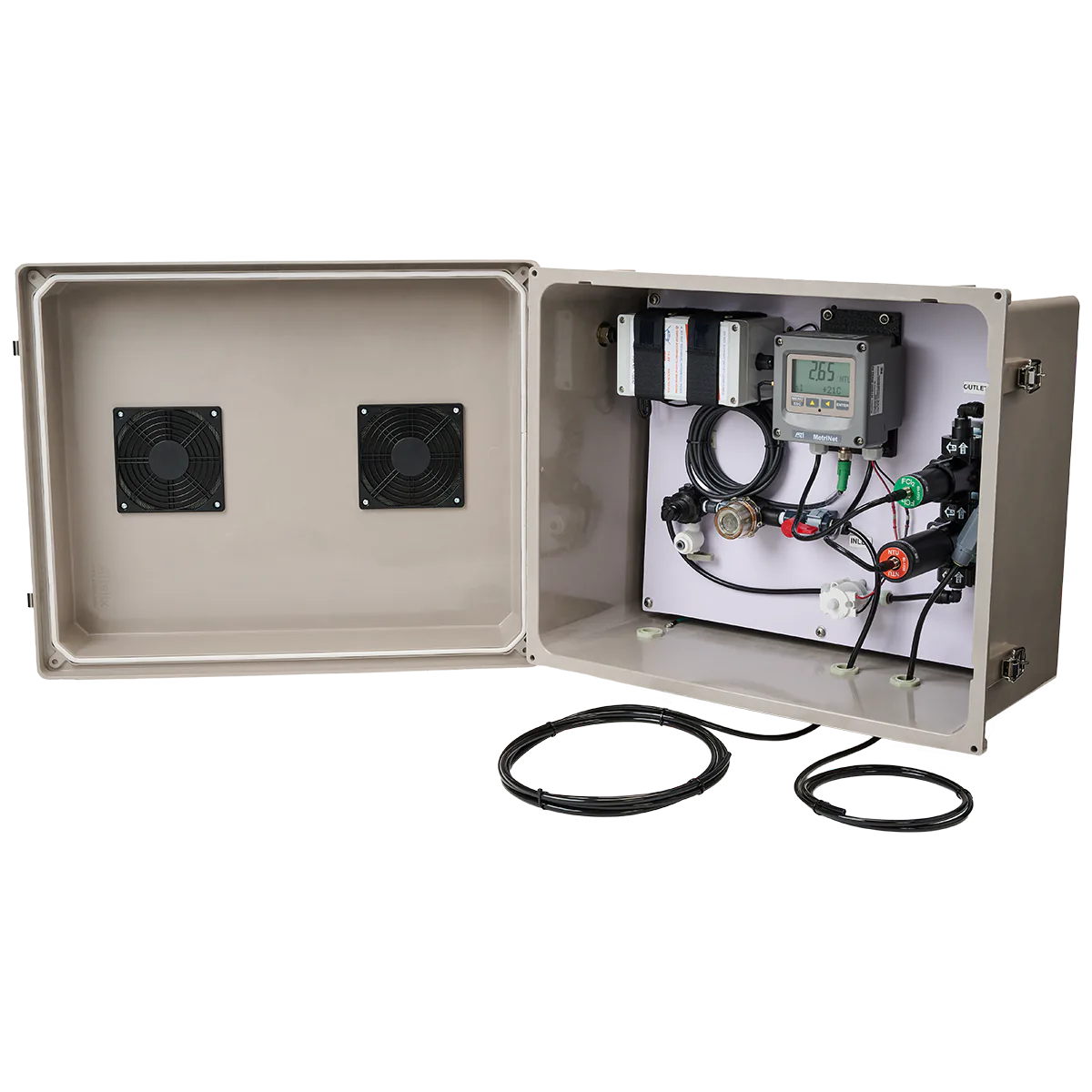

Badger Meter MetriNet Mini vandens kokybės stebėjimo stotelė

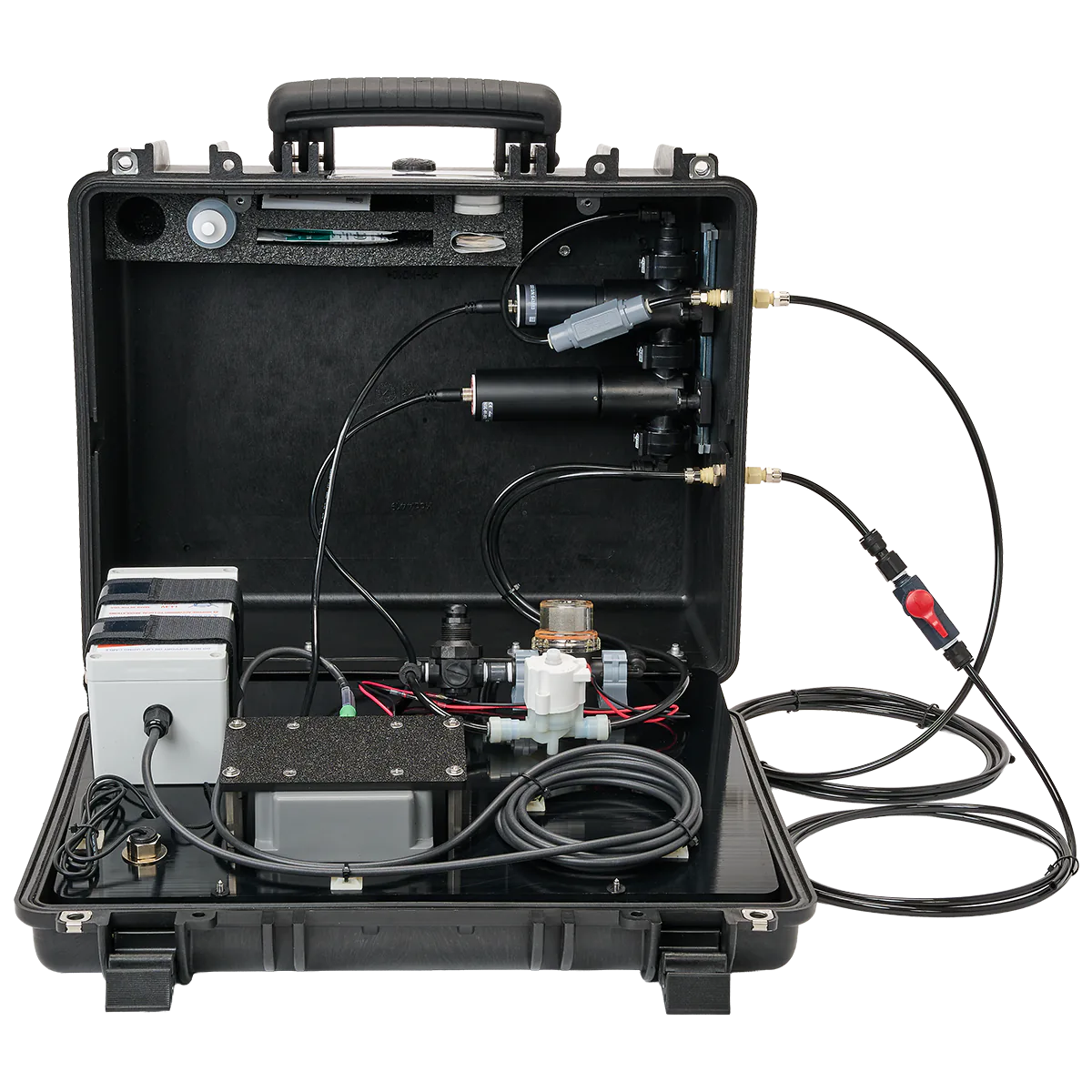

Badger Meter MetriNet Mini vandens kokybės stebėjimo stotelė - Image 2

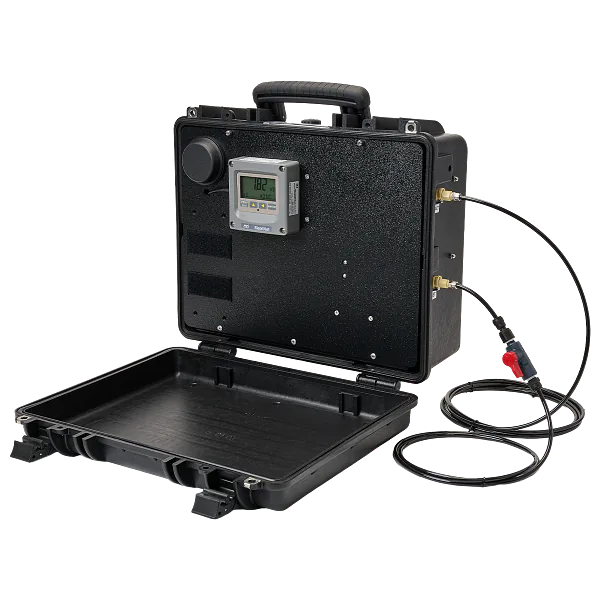

Badger Meter MetriNet Mini vandens kokybės stebėjimo stotelė - Image 3

Badger Meter MetriNet Mini Water Quality Monitoring Station

Optical spectrometric analyzers, Water analysis

Fields of application

Badger Meter MetriNet Mini is a compact water quality monitoring station designed for drinking water disinfection control and water supply network monitoring. The system allows simultaneous measurement of 2 or 3 selected water quality parameters, including turbidity and free or total chlorine concentration. The modular design and different power options ensure flexible use in stationary and mobile systems.



Features:

  • Simultaneous measurement of 2 or 3 water quality parameters
  • Selectable parameters from 15 possible measurement types
  • Monitoring of drinking water turbidity and chlorine concentration
  • Compact, modular design
  • Fixed and mobile installation versions
  • Battery powered available
  • Suitable for continuous monitoring of water supply networks
  • Compatible with M-Node smart sensors
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Type

    Multi-parameter water quality monitoring station

  • Manufacturer

    Badger Meter / ATi

  • Dedicated

    Drinking water quality and disinfection control

  • Recommended measurements

    Turbidity and free or total chlorine

  • Turbidity measurement range

    0-40 NTU

  • Free chlorine measurement range

    0-5 ppm

  • Total chlorine measurement range

    0-5 ppm

  • pH measuring range

    pH 2-12

  • Measured medium

    Drinking and other clean water

  • Data transfer

    Modbus, Modbus TCP/IP, EtherNet/IP or cellular communication, depending on the controller

  • Sensor technology

    Digital M-Node sensors

  • Sensor communication

    RS-485 / Modbus

  • Power supply

    12-24V DC or battery

  • Measurement range

    Programmable, 0.1-60 min.

  • Sample water flow

    About 0.2 l/min.

  • Working sample pressure

    0.7-3.4 bar

  • Sensor connection protection

    IP67

  • Data collection

    Local storage, microSD backup, CSV format

  • Control

    MetriNet Q52 controller

  • Mounting versions

    Above-Ground and Below-Ground

  • Additional measurements are possible

    Chlorine dioxide, combined chlorine, electrical conductivity, dissolved oxygen, ozone, fluorides, hydrogen peroxide, nitrites, ORP, peracetic acid, pressure

  • Available accessories

    M-Node sensors, sample flow chambers, pressure regulator, filters, solenoid valve, antenna extension, mounting kits

  • Compatible software

    BEACON (using appropriate communication and data transmission configuration)

  • Device version

    Stationary, Mobile

  • Number of measured parameters

    2 parameters, 3 parameters

AVAILABLE MODELS

DOCUMENTS

  • User Manual: MetriNet Q52

    8.03 MB

    Download

  • Datasheet: MetriNet Mini

    578.18 KB

    Download
