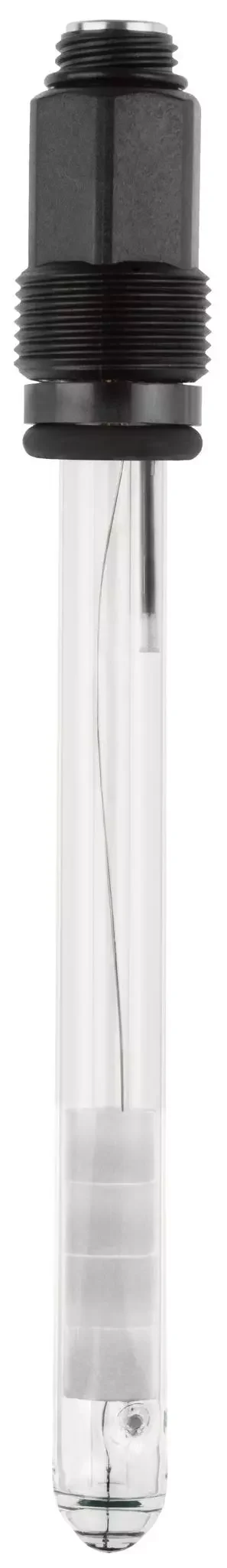

JUMO tecLine Redox – industrial ORP electrode

Process analyzers and sensors, Water analysis

Fields of application

JUMO tecLine Redox is an industrial electrode for measuring the oxidation-reduction potential (ORP) of water and aqueous solutions. It is used for drinking water disinfection, swimming pool water quality control and industrial chemical process monitoring. Available in glass or plastic housing.



Features:

  • ORP measurement range ±2000 mV
  • Platinum or gold measuring tip
  • Operating temperature from -10 to +135 °C
  • Pressure resistance up to 10 bar
  • Glass or plastic housing
  • PTFE, zirconia or fiberglass diaphragm
  • High mechanical resistance and measurement stability
  • Two-chamber KCl/KCl system available
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Measured parameter

    ORP (Redox)

  • Measurement range

    ±2000mV

  • Measuring element

    Platinum or gold

  • Operating temperature

    –10 to +135 °C

  • Maximum pressure

    10 bar

  • Housing material

    Glass, PEI or PSU

  • Aperture

    PTFE, fiberglass, zirconia or annular

  • Electrolyte

    Gel or liquid KCl, depending on model

  • Installation length

    120 or 225 mm

  • Connection

    Pg13.5 (S8)

  • Two-chamber system

    KCl/KCl (optional)

AVAILABLE MODELS

DOCUMENTS

  • Brochure: Liquid Analysis

    10.32 MB

    Download

  • Brochure: Pharmaceuticals and Biotechnology

    6.53 MB

    Download

  • Brochure: Water and Wastewater

    9.87 MB

    Download

  • Product Checklist: pH / ORP (Redox)

    337.1 KB

    Download

  • Instructions for use: pH/redox electrodes (composite electrodes)

    293.45 KB

    Download

  • Technical Guide: Redox Potential Measurement

    1.1 MB

    Download

  • Technical data sheet: JUMO tecLine pH, JUMO tecLine Rd – pH and redox potential measurement electrodes – 201020

    649.22 KB

    Download

  • Certificate: China RoHS-20 – JUMO tecLine

    98.5 KB

    Download

  • Data sheet: JUMO tecLine pH, JUMO tecLine Rd with annular gap or perforated membrane

    85.61 KB

    Download

  • Order information: 201025

    124.12 KB

    Download

  • EU Declaration of Conformity: JUMO tecLine„

    164.65 KB

    Download

  • UK Declaration of Conformity: JUMO tecLine„

    439.51 KB

    Download
