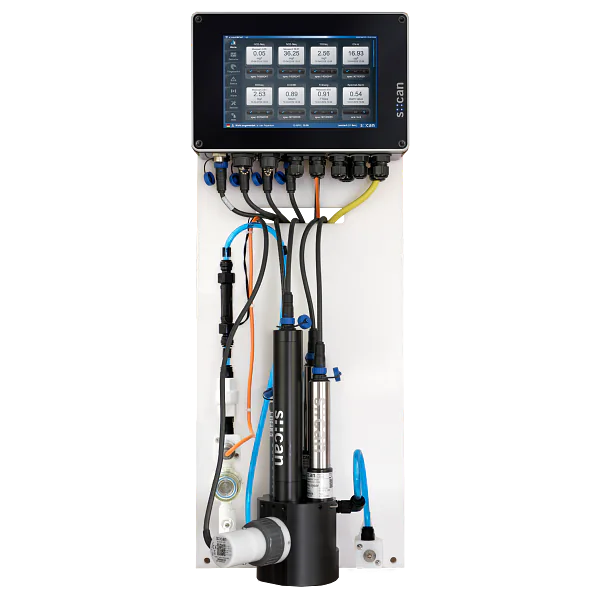

Badger Meter nano::station water quality monitoring station

Optical spectrometric analyzers, Water analysis

Fields of application

Badger Meter nano::station is a compact, modular water quality monitoring station for continuous measurement of drinking water parameters. The system combines optical and physical sensors to monitor turbidity, pH, chlorine, conductivity and other indicators. The factory-assembled design ensures easy installation and quick system start-up.



Features:

  • Compact, modular design
  • Continuous water quality monitoring
  • One optical i::scan sensor
  • Possibility to connect up to 3 additional sensors
  • Measurement of turbidity, pH, chlorine and other parameters
  • Automatic optical sensor cleaning system
  • Optional con::cube V3 or con::lyte controllersEasy connection to water supply system
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Type

    Modular water quality monitoring station

  • Model

    nano::station

  • Manufacturer

    Badger Meter / s::can

  • Dedicated

    Monitoring of drinking, tap and clean surface water

  • Number of measured parameters

    3, 4, 6 or 8 depending on configuration

  • Optical sensor

    i::scan

  • Additional physical sensors

    Digital M-Node sensors

  • Optical measurements

    Turbidity (FTU/NTU), color, UV254, TOC, DOC, light transmittance

  • Other possible measurements

    pH, ORP, conductivity, temperature, free and total chlorine, chlorine dioxide, hydrogen peroxide, peracetic acid

  • Controller

    con::cube V3 or con::lyte

  • Data management

    moni::tool software with con::cube

  • Assembly

    Wall-mounted, on a compact panel

  • Panel dimensions

    750 × 280 mm

  • System weight

    About 11 kg with all equipment

  • Panel material

    PE

  • Ambient temperature

    -10…+45 °C

  • Inlet pressure

    Up to 6 bar, depending on sensors

  • Water flow

    More than 0.4 l/min.

  • Process connection

    G 1/4 (EU) or 1/4 NPT (US)

  • Pipe dimensions

    6 mm inner / 8 mm outer diameter

  • Automatic cleaning

    i::scan cleaning brush

  • Available accessories

    Pressure sensor, flow detector, additional physical sensors, flow limiter, maintenance kit
