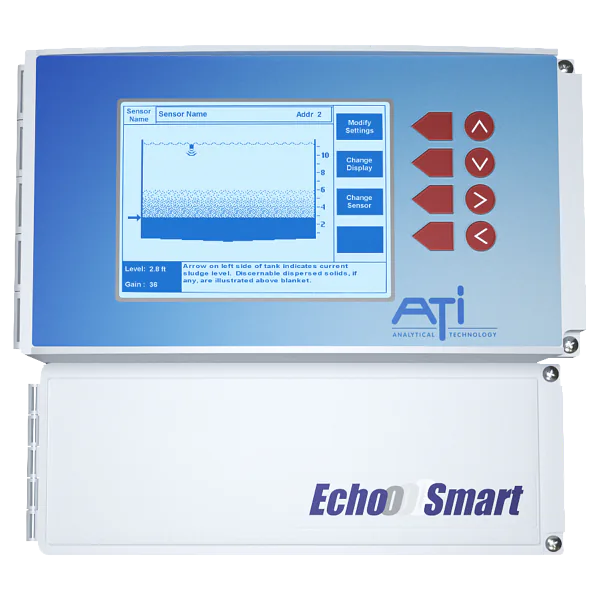

Badger Meter EchoSmart ultrasonic sludge level meter

SPECIFICATIONS

• Type

  Ultrasonic sludge layer level monitoring system

• Model

  EchoSmart

• Manufacturer

  Badger Meter / ATi

• Dedicated

  Monitoring of sludge layer in wastewater treatment tanks and clarifiers

• Measuring principle

  Underwater ultrasonic

• Measurement range

  0.305–10 m

• Measurement resolution

  3.05 mm at 3.05 m distance

• Turbidity range

  0-50 NTU with appropriate sensor selection

• Number of sensors

  Up to 16 with one controller

• Sensor versions

  Standard, self-cleaning, with turbidity measurement

• Sensor operating temperature

  +1…+52 °C

• Controller operating temperature

  -40…+60 °C

• Power supply

  100-240 V AC, 50/60 Hz; optional 24 V DC

• Sensor power supply

  15V DC

• Data transfer

  RS-485 / Modbus RTU, 4-20mA

• Wireless connection

  Optional RF network module

• Controller screen

  Graphic LCD, 320 × 240 pixels

• Security class

  Controller IP65; sensor IP68

• Assembly

  Fixed or flexible sensor mounting

• Calibration

  Factory calibration, additional calibration is usually not required

• Controller dimensions

  235 × 229 × 115mm

• Additional options

  4 alarm relays, RF communication module, Modbus–4–20 mA converter

• Available accessories

  Sensor mounting brackets, Multi-Flex flexible mounting, protective covers, additional controls and power modules

• Sensor version

  Standard sensor, Self-cleaning sensor, Sensor with turbidity measurement
