JUMO – viengubi ir dvigubi Redox (ORP) elektrodai

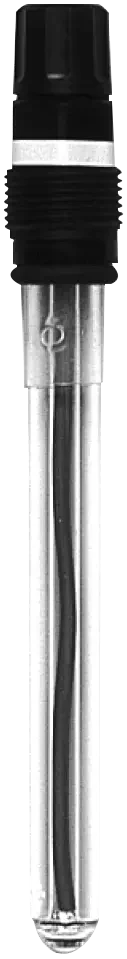

JUMO – single and double Redox (ORP) electrodes

Process analyzers and sensors, Water analysis

Fields of application

JUMO Redox electrodes are single and double metal electrodes for measuring the oxidation-reduction potential (ORP) of water and aqueous solutions. They are used for monitoring industrial processes, water quality and chemical reactions. The double electrodes are also suitable for amperometric titration, and special antimony versions are used for pH measurement in fluoride-containing media.



Features:

  • ORP measurement range ±2000 mV
  • Platinum or gold measuring elements
  • Single and double electrode options
  • Operating temperature up to +135 °C
  • Pressure resistance up to 6 bar
  • Glass or plastic housing
  • Standard installation length – 120 mm
  • Available versions with Pg13.5 threaded connection
  • Used in conjunction with a separate reference electrode
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Measured parameter

    ORP (Redox), optionally pH

  • ORP measurement range

    ±2000mV

  • Antimony electrode pH range

    0-10 pH

  • Measuring elements

    Platinum (Pt), gold (Au), antimony (Sb)

  • Operating temperature

    0 to +135 °C (Pt and Au)

  • Maximum pressure

    6 bar at +25 °C

  • Pressure at +80 °C

    1 bar

  • Housing material

    Glass or plastic

  • Electrode types

    Single or double

  • Standard length

    120mm

  • Diameter

    12 mm

  • Connection

    Plug or Pg13.5 threaded

  • Head material

    WTO

  • Sealant

    FPM70

  • Additional equipment

    Separate reference electrode
