JUMO ecoLine / JUMO BlackLine Redox – ORP elektrodas

JUMO ecoLine / JUMO BlackLine Redox – ORP electrode

Process analyzers and sensors, Water analysis

Fields of application

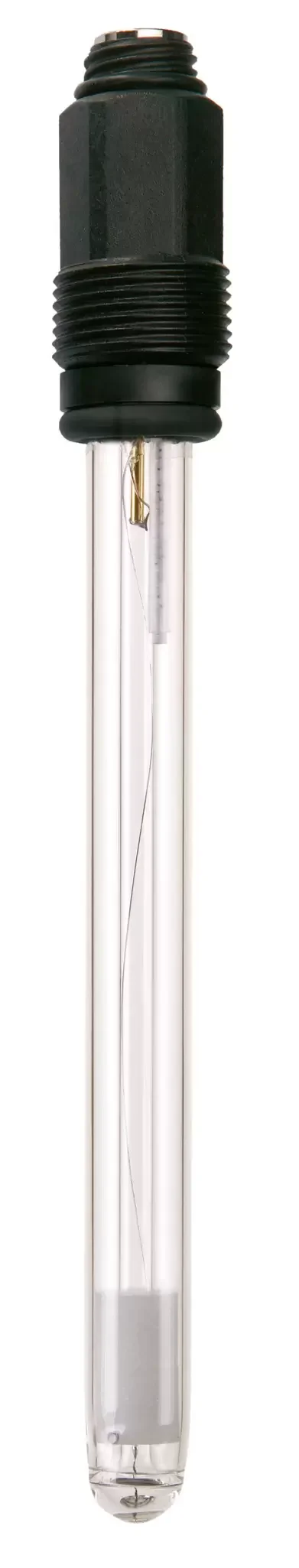

JUMO ecoLine / JUMO BlackLine Redox – combined ORP electrode for measuring the oxidation-reduction potential of water and aqueous solutions. Used for drinking water quality control, swimming pools, aquariums, greenhouses and surface water monitoring. Available in glass or plastic housing.



Features:

  • ORP measurement range ±2000 mV
  • Durable platinum measuring tip
  • Glass or plastic housing
  • Ceramic or fiberglass diaphragm
  • Operating temperature from 0 to +60 °C
  • Maximum working pressure – 6 bar
  • Versions with integrated cable available
  • Easy maintenance and fast measurement results
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Measured parameter

    ORP (Redox)

  • Measurement range

    ±2000mV

  • Measuring element

    Platinum tip

  • Temperature

    0-60°C

  • Pressure

    0-6 bar

  • Housing material

    Glass, PEI or PPO

  • Installation length

    120mm

  • Connection

    Pg13.5 or cable gland

  • Cable connector

    BNC (optional)

AVAILABLE MODELS

DOCUMENTS

  • Product Checklist: pH / ORP (Redox)

    337.1 KB

    Download

  • Instructions for use: pH/redox electrodes (composite electrodes)

    293.45 KB

    Download

  • Technical Guide: Redox Potential Measurement

    1.1 MB

    Download

  • Technical data sheet: JUMO ecoLine / JUMO BlackLine combination pH and redox electrodes

    350.2 KB

    Download

  • Certificate: China RoHS-20 – JUMO ecoLine / JUMO BlackLine

    98.5 KB

    Download

  • Order information: 201010

    127.46 KB

    Download

  • EU Declaration of Conformity: JUMO ecoLine / JUMO BlackLine Redox

    164.96 KB

    Download

  • UK Declaration of Conformity: JUMO ecoLine / JUMO BlackLine Redox

    434.25 KB

    Download
