JUMO dTRANS AS 02 – daugiakanalis matavimo keitiklis ir reguliatorius

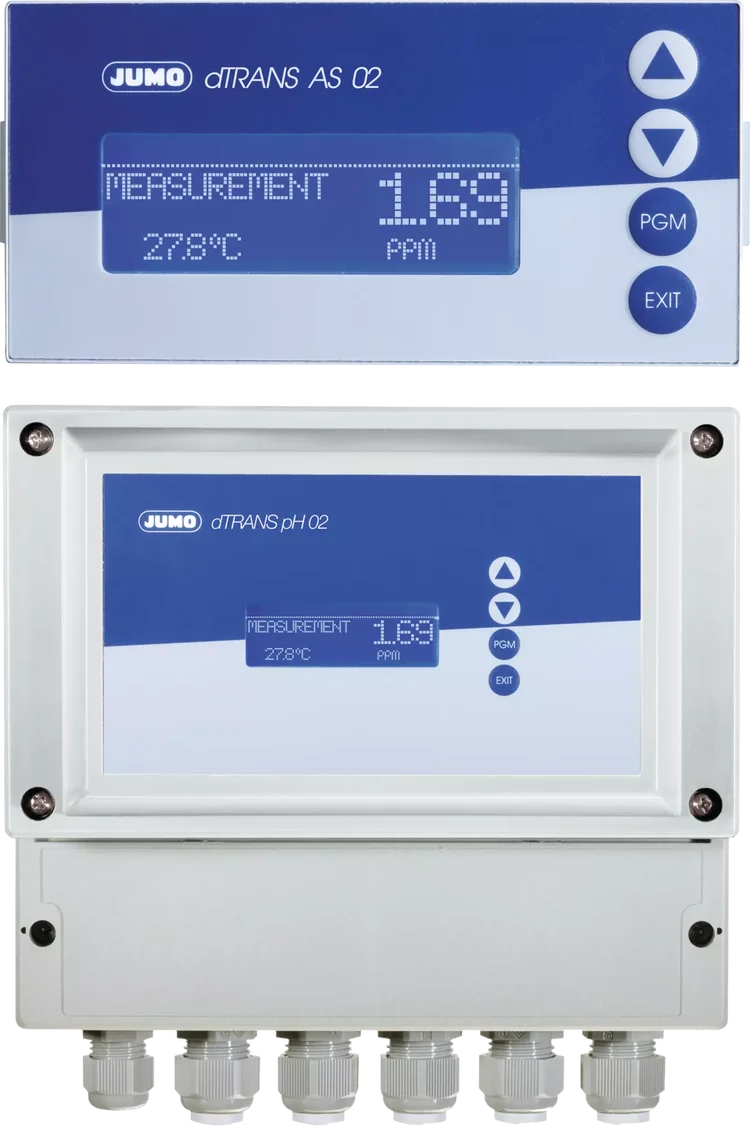

JUMO dTRANS AS 02 – multi-channel measuring transducer and controller

Process analyzers and sensors, Water analysis

Fields of application

JUMO dTRANS AS 02 is a universal, multifunctional measuring transducer and controller for measuring standard analog signals and temperatures and controlling technological processes. It is used in water and wastewater treatment, chemical industry and automation systems. With compatible sensors, it allows you to monitor chlorine, ozone, pH, ORP, liquid level and other parameters.



Features:

  • Processing of standard 0/4-20 mA and 0-10 V signals
  • Compatible with Pt100, Pt1000, NTC and PTC temperature sensors
  • P, PI, PD and PID control functions
  • Graphical LCD display with measurement trend display
  • Up to 3 analog outputs and 7 relays
  • Automatic temperature compensation
  • Integrated calibration log and diagnostic functions
  • RS422/485 (Modbus) or PROFIBUS-DP interfaces (optional)
  • Modular design with 3 additional module slots
  • Mounted in the control panel or on the wall
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Device type

    Measuring transducer and regulator

  • Measured parameters

    Temperature, standard analog signals

  • Compatible measurements

    Chlorine, ozone, pH, ORP, conductivity, liquid level, flow

  • Analog inputs

    0/4-20mA, 0-10V

  • Temperature sensors

    Pt100, Pt1000, NTC, PTC

  • Main temperature input range

    -50 to +250 °C (Pt100/Pt1000)

  • Analog signal measurement accuracy

    0.25 % range (main input)

  • Main entrances

    1 universal, 2 digital

  • Analog outputs

    Up to 3 (depending on configuration)

  • Relay outputs

    Up to 7 (depending on configuration)

  • Regulation functions

    P, PI, PD, PID

  • Communication interfaces

    RS422/485 (Modbus), PROFIBUS-DP (optional)

  • Display

    Graphic LCD, 122 × 32 pixels

  • Power supply

    110-230V AC or 20-30V AC/DC

  • Ambient temperature

    –5 to +55°C

  • Security class

    IP65 front (panel version), IP65 wall version

  • Assembly

    On the control panel or on the wall

  • Panel version dimensions

    96 × 48 × 95mm

  • Additional functions

    Calibration log, mathematical and logical functions, cleaning timer

AVAILABLE MODELS

DOCUMENTS

  • Brochure: JUMO dTRANS pH / CR / AS 02 – compact transmitter/controller series for liquid analysis

    2.46 MB

    Download

  • Brochure: Product range – (overview in DIN A4 format)

    5.62 MB

    Download

  • Brochure: Food Technology

    3.87 MB

    Download

  • Brochure: Chemical Industry

    7.93 MB

    Download

  • Brochure: Water and Wastewater

    9.87 MB

    Download

  • Brochure: Shipbuilding Industry

    6.75MB

    Download

  • Brochure: Product range

    9.72 MB

    Download

  • Operating instructions: JUMO dTRANS xx 02 – surface mounted

    981.42 KB

    Download

  • Operating instructions: JUMO dTRANS AS 02, standard signal and temperature converter/controller

    2.03 MB

    Download

  • Data sheet: JUMO dTRANS AS 02 - Standard signal and temperature converter/controller – 202553

    515 KB

    Download

  • Certification: UL 61010-1 - JUMO dTRANS pH 02, JUMO dTRANS CR 02 and JUMO dTRANS AS 02

    379.42 KB

    Download

  • Certificate: China RoHS-20 – JUMO dTRANS AS 02

    98.49 KB

    Download

  • Order information: 202553

    131.18 KB

    Download

  • EU Declaration of Conformity: JUMO dTRANS AS 02

    167.07 KB

    Download

  • UK Declaration of Conformity: JUMO dTRANS AS 02

    679.41 KB

    Download

  • Interface description: PROFIBUS DP – JUMO dTRANS pH02, CR02, AS02

    523.13 KB

    Download

  • Interface description: Modbus – JUMO dTRANS pH02, CR02, AS02

    1.78 MB

    Download
