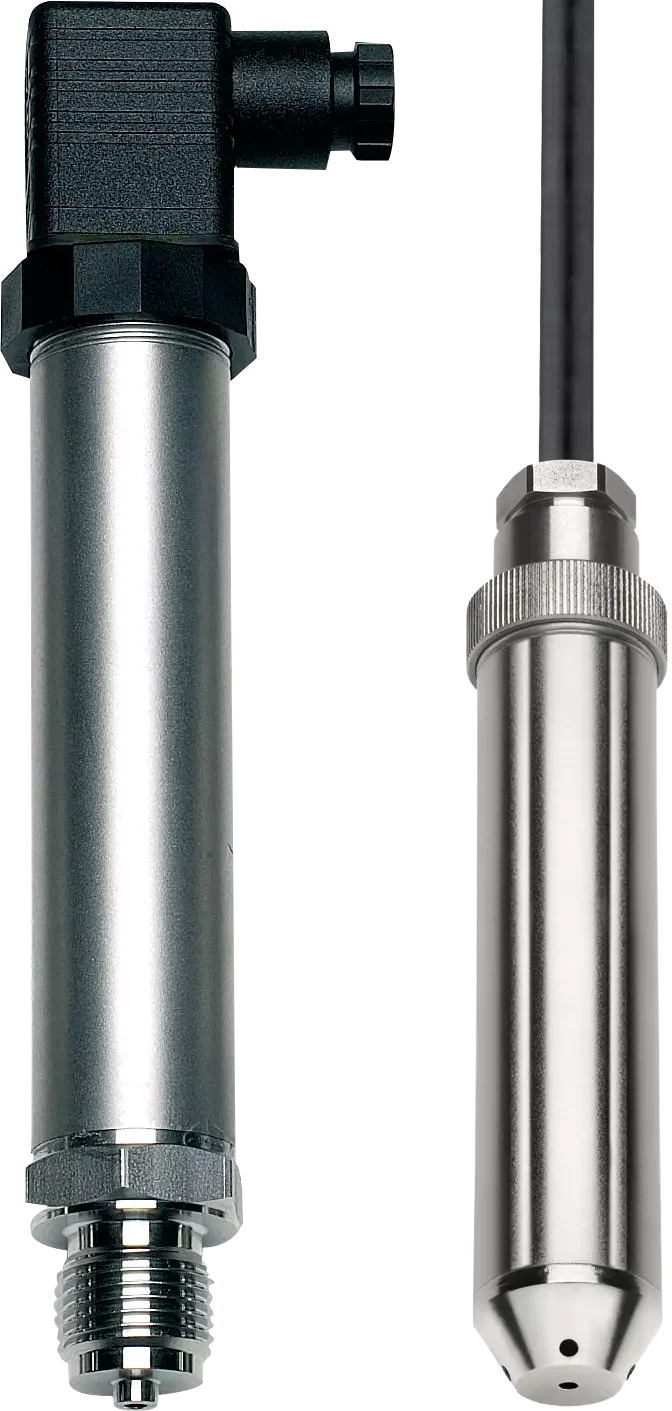

JUMO dTRANS p33 pressure transmitter for Ex zones

SPECIFICATIONS

• Type

  Pressure transmitter / hydrostatic level probe for Ex zones

• Type number

  404753

• Measured pressure

  Relative or absolute pressure

• Measuring principle

  Piezoresistive silicon sensor

• Measurement range

  According to the selected product variation: relative from 0…0.25 to 0…600 bar, absolute from 0…0.6 to 0…25 bar

• Measured medium

  Aggressive and non-aggressive gases, vapors, liquids and dusts

• Accuracy

  ≤ 0.5 % MSP

• Hysteresis

  ≤ 0.1 % MSP

• Long-term stability

  ≤ 0.5 % MSP per year

• Output signal

  4-20 mA, 2-wire

• Power supply

  11-28 V DC from intrinsically safe circuit

• Medium temperature

  -40…+85 °C

• Process connection

  G 1/4, G 1/2, NPT connections, front connections, DIN 11851, Clamp, VARIVENT and level probe connections

• Process connection material

  Stainless steel

• Wetted parts

  Stainless steel 316L/316Ti; also 630 in high pressure versions

• Housing material

  Stainless steel 304

• Electrical connection

  Shielded cable, M12 × 1, DIN EN 175301-803 form A or terminal head

• Security class

  IP65, for level probe versions IP68

• Vibration resistance

  Up to 10g, 15-2000Hz

• Shock resistance

  Up to 100 g/1 ms

• Overload limit

  Up to 4 × measuring range end value for ranges <100 bar; 2 × from 100 bar

• Burst pressure

  Up to 10 × range end value, maximum 2000 bar

• Certificates

  ATEX; optionally UKEX / EAC Ex; certain hygienic process connections have EHEDG certification.

• Additional options

  IP68 level probe version, electropolished wetted parts, oil and grease free version, TAG number, calibration certificate, technical passport.
