JUMO pH Glass Electrodes – stiklinis pH elektrodas

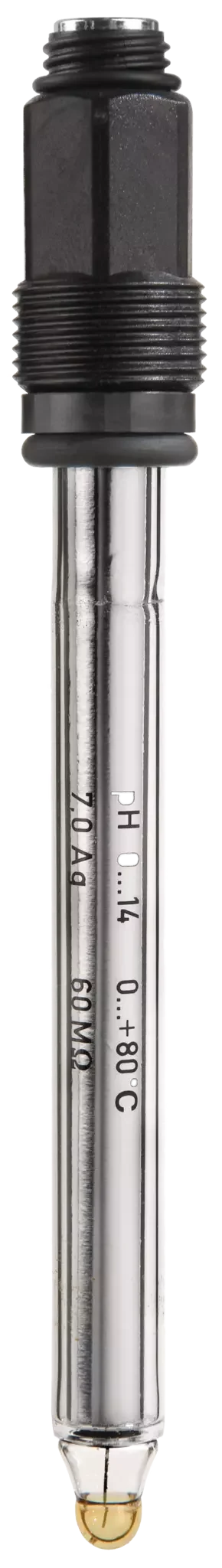

JUMO pH Glass Electrodes – glass pH electrode

Process analyzers and sensors, Water analysis

Fields of application

JUMO pH Glass Electrodes – glass pH electrodes for measuring the acidity of water and various liquid media in combination with a separate reference electrode. Used in laboratories, water treatment systems and industrial process control. Available with UW, C and HT glass membranes, adapted to different chemical media and temperatures.



Features:

  • pH measurement range from 0 to 14, depending on the membrane
  • UW glass – for universal aqueous solutions
  • C glass – for fluoride-containing media
  • HT glass – for high temperatures and alkaline media
  • Operating temperature up to +135 °C
  • Pressure resistance up to 6 bar with Pg13.5 connection
  • Glass body, standard length 120 mm
  • S7 and S8 connectors available
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Measured parameter

    pH

  • Measuring principle

    Potentiometric, with separate reference electrode

  • Membrane types

    UW, C, HT

  • Glass range

    UW: 0–12 pH (short-term up to 14)

    C: 0–11 pH

    HT: 0-14 pH

  • Glass temperature

    UW: 0 to +80 °C

    C: 0 to +50 °C

    HT: 0 to +135 °C

  • Maximum pressure

    6 bar at 25 °C; 1 bar at 80 °C (Pg13.5)

  • Housing material

    Glass (DIN 19263)

  • Sensor diameter

    12 mm

  • Installation length

    120 or 225 mm

  • Connection

    S7 or S8 (Pg13.5)

  • Connector head material

    WTO

  • Sealing material

    FPM70

  • Applications

    Laboratories, water analysis, industrial processes

AVAILABLE MODELS

DOCUMENTS

  • Product Checklist: pH / ORP (Redox)

    337.1 KB

    Download

  • Technical Guide: pH Measurement

    2.36 MB

    Download

  • Data sheet: JUMO pH glass electrode – 201081

    187.96 KB

    Download

  • Certificate: China RoHS-20 – JUMO glass pH electrodes

    98.99 KB

    Download

  • Order information: 201081

    111.69 KB

    Download

  • EU Declaration of Conformity: JUMO pH Glass Electrodes

    164.13 KB

    Download
