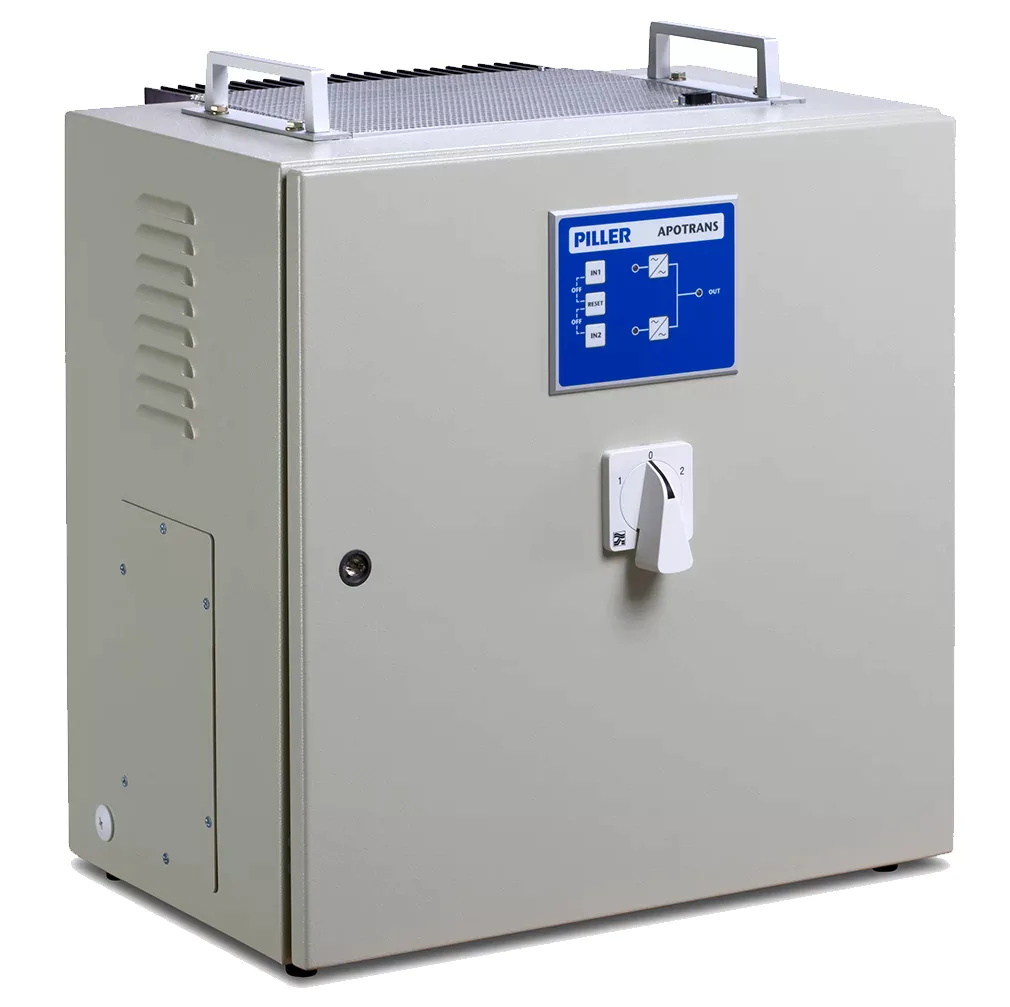

Piller APOTRANS AT 25–63 A – static transfer switch (STS)
Static Transfer Switches, UPS
Fields of application
PILLER APOTRANS AT 25–63 A – low-current four-pole three-phase static transfer switches (STS) that automatically switch critical loads to a backup source if the main source deviates from the norm or disappears. Designed for server rooms, distribution cabinets and critical IT equipment where a backup source is required up to the load.
Features:
Four-pole three-phase switching, safely switches the neutral as well
Fuse-free: large thyristors with high short-circuit resistance
Switching time typically within 3 ms per phase
Fully redundant monitored electronics, thyristors monitored in all operating modes
Natural air cooling, low noise, high efficiency
Integrated manual bypass and quick-change components
Adjustable operating criteria, event memory, convenient control panel
Remote monitoring, integration with building management system, three housing options
SPECIFICATIONS
AVAILABLE MODELS
DOCUMENTS
SPECIFICATIONS
Manufacturer
PILLAR
Series
APOTRANS AT
Device type
Thyristor static switch (STS)
Rated current
25–63 A
Piles
4 poles, three-phase
Construction
Fuseless
Switching time
Typically 3 ms per phase
Housings
Three options: wall-mounted small cabinet with three-phase sockets, underfloor installation or in a 19" cabinet
Cooling
Natural air
Manual bypass
Integrated
Control
Control panel, adjustable operating criteria, event memory
Connection
Various communication options, remote monitoring, integration with building management system
Return to main source
Automatic or manual when the source stabilizes
Service
Quick-change components
Dimensions and weight
According to the selected housing variant (specified by the manufacturer)
Applications
Server rooms, data centers, critical IT infrastructure
