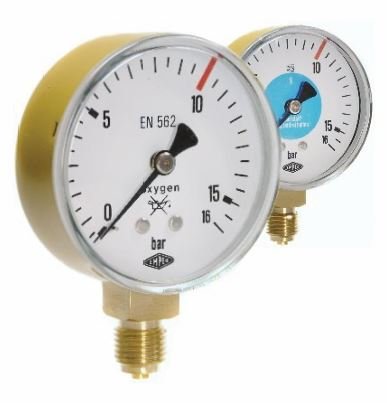

EMPEO welding pressure gauge according to ISO 5171 for gas pressure and flow control in welding equipment. Available in 50 and 63 mm models, special scales for acetylene, oxygen, argon/CO₂ and universal.
Features:
Complies with ISO 5171
Ø50 and Ø63 mm models
G 1/4 process connection
Copper alloy measuring system
Oil and grease-free construction
Accuracy class 2.5, alternatively 1.6
SPECIFICATIONS
AVAILABLE MODELS
DOCUMENTS
SPECIFICATIONS
Type
Welding pressure gauge
Models
S 50.16 / SR 50.11 / S 63.16 / SR 63.11
Standard
ISO 5171
Nominal diameter
50mm or 63mm
Housing
Black steel
Protection
Pressure relief/blow-out end
Window
Polycarbonate
Measurement system
Copper alloy
Process connection
G 1/4
Connector position
Bottom or rear, depending on the model
Accuracy class
2.5; alternatively 1.6
Construction
Without oil and fat.
Scale/medium
0–2.5/1.5 bar – acetylene, 0–4/2 bar – without gas marking, 0–6/3.5 bar – without gas marking, 0–10/6 bar – without gas marking, 0–16/10 bar – oxygen, 0–16/10 bar – without gas marking, 0–25/16 bar – without gas marking, 0–40 bar – without gas marking, 0–40 bar – acetylene, 0–60/40 bar – without gas marking, 0–100/60 bar – without gas marking, 0–160 bar – without gas marking, 0–315/200 bar – without gas marking, 0–315/200 bar – oxygen, 0–315/200 bar – argon/CO₂, 0–16 / 0–32 l/min – 4 or 10 bar, 2 capillary scales, 0–28 / 0–30 l/min – CO₂/argon
