EMPEO standartinis manometras

EMPEO standard pressure gauge

Manometers, Pressure sensors

Fields of application

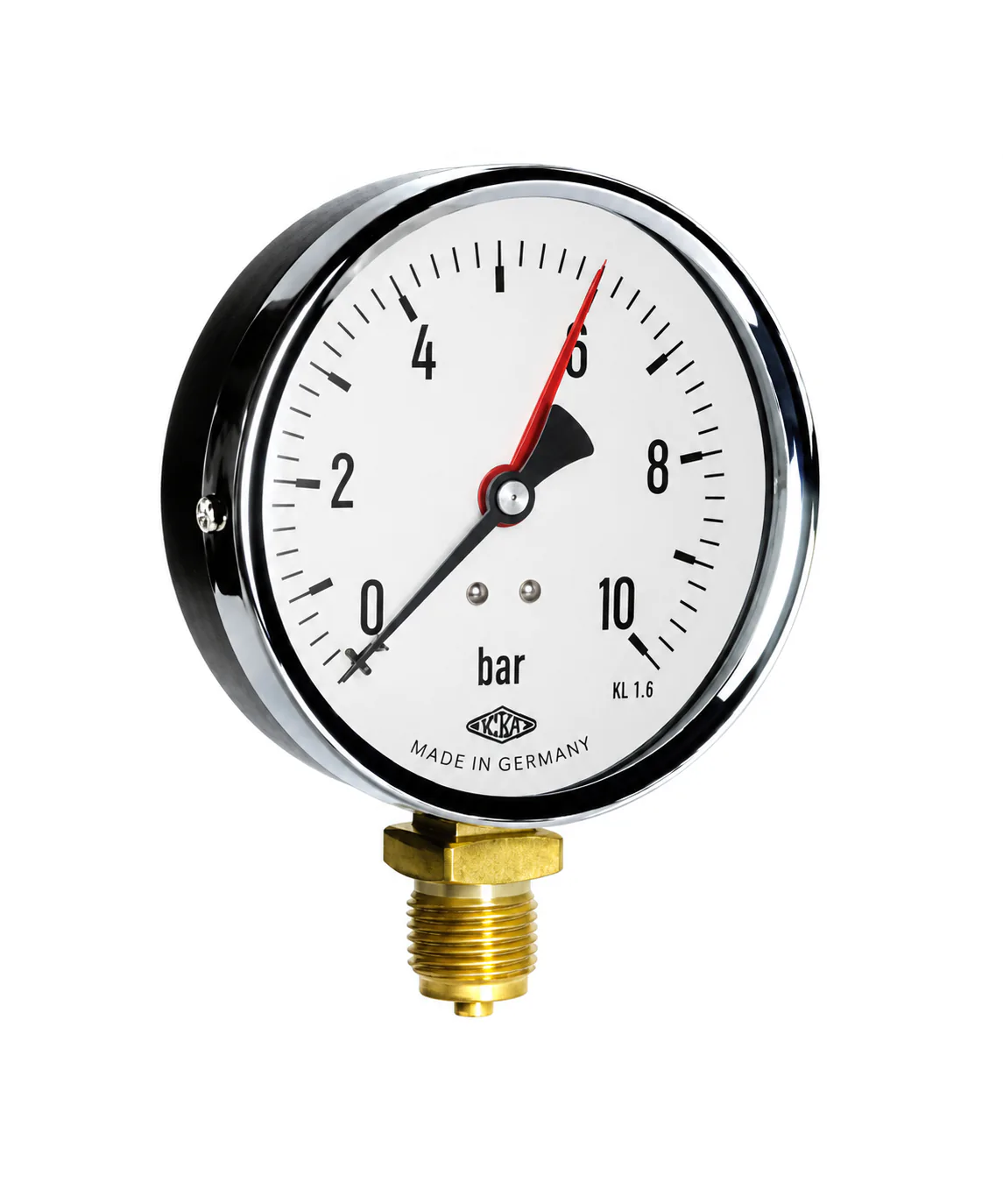

EMPEO standard Bourdon type pressure gauge for measuring pressure in liquids and gases. Available in sizes 40-80 mm, bottom, rear and panel mount versions and a wide range of positive, vacuum and combined pressure ranges.



Features:

  • Accuracy class 1.6
  • Copper alloy measuring system
  • Black painted steel body
  • Sizes 40 / 50 / 54 / 63 / 80 mm
  • Bottom, rear and panel mount versions
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Type

    Standard Bourdon type pressure gauge

  • Standard

    EN 837-1

  • Accuracy class

    1,6

  • Housing material

    Steel, black painted

  • Measurement system

    Copper alloy

  • Nominal diameter

    40 / 50 / 54 / 63 / 80 mm

  • Process connection

    For Ø40 mm models – G 1/8
    For Ø50–80 mm models – G 1/4

  • Connection

    Bottom or rear, depending on the model

  • Pressure range

    According to the selected variation

  • Construction

    Without oil and fat.

  • Model

    40.11 – Ø40, lower, R 40.11 – Ø40, rear, 50.11 – Ø50, lower, R 50.11 – Ø50, rear, 54.11 – Ø54, lower, chrome ring, R 54.11 – Ø54, rear, chrome ring, 63.11 – Ø63, lower, R 63.11 – Ø63, rear, R 63.12 – Ø63, panel, U-clamp, 63.14 – Ø63, lower, chrome ring, R 63.14 – Ø63, rear, chrome ring, R 63.14G – Ø63, rear, front flange, 80.11 – Ø80, lower, R 80.11 – Ø80, rear, 80.11B – Ø80, lower, rear mounting flange, R 80.11G – Ø80, rear, front flange
