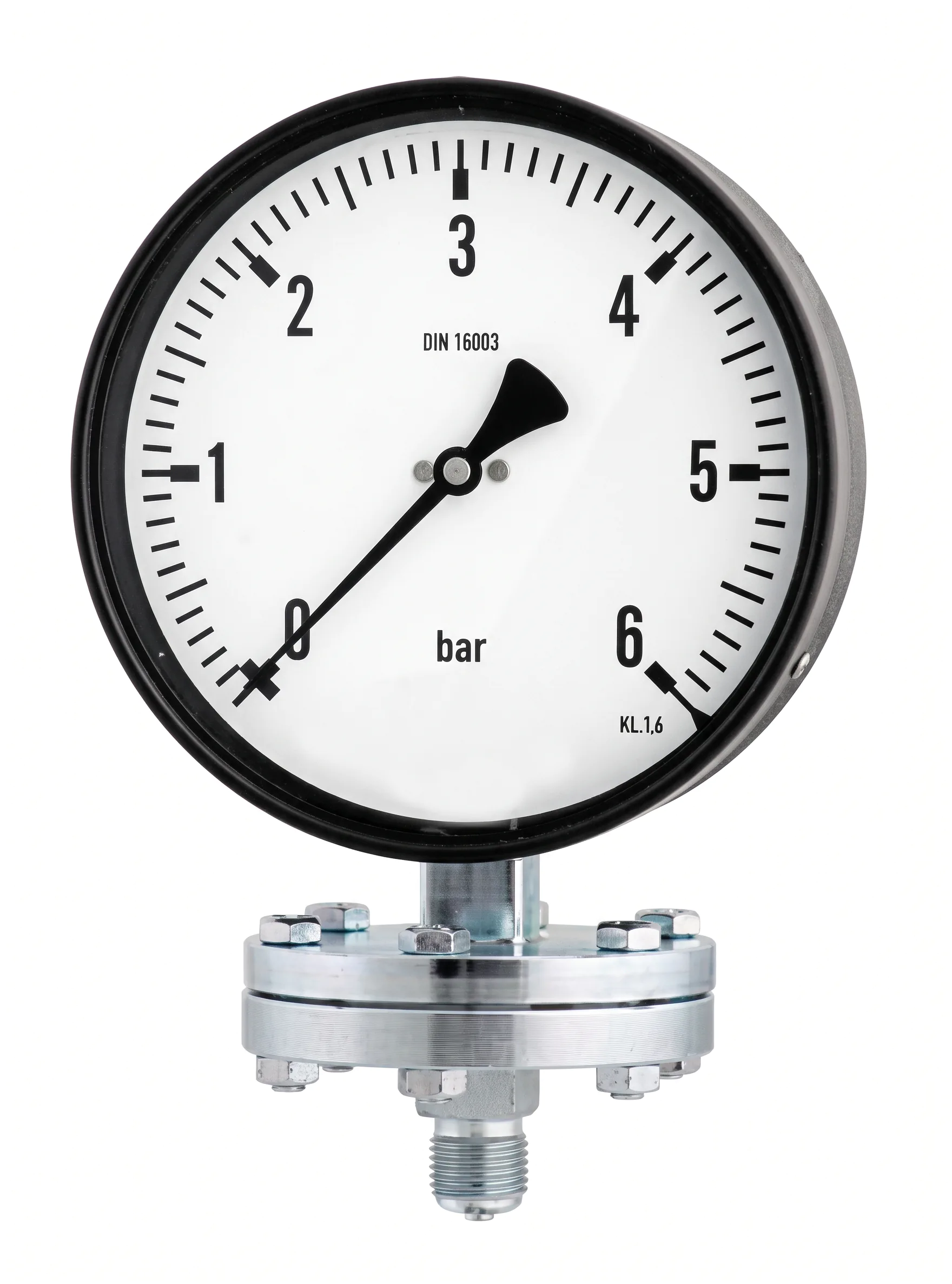

EMPEO diaphragm pressure gauge with horizontal diaphragm for positive, vacuum and combined pressure measurement. This family of pressure gauges includes standard, stainless steel and glycerine-filled versions. The diaphragm pressure gauges are listed in the catalogue for ranges from approximately 0-10 mbar to 0-25 bar, and the designs can be adapted to different media.
Features:
Membrane measuring principle
Accuracy class 1.6
Nominal sizes 100 mm and 160 mm
Process connection G 1/2, lower
Versions with steel or stainless steel wetted parts
Versions without filler or with glycerin
Glycerin versions are designed for more challenging conditions, such as vibrations or pressure pulsations
Vacuum, combined, bar and mbar ranges available
SPECIFICATIONS
AVAILABLE MODELS
DOCUMENTS
SPECIFICATIONS
Type
Diaphragm pressure gauge
Models
PL 100 - Ø100 mm, without filler, steel bottom flange
PL 160 - Ø160 mm, without filler, steel bottom flange
NPL 100 - Ø100 mm, without filler, stainless steel bottom flange
NPL 160 - Ø160 mm, without filler, stainless steel bottom flange
PLGL 100 - Ø100 mm, glycerine filled, steel bottom flange
PLGL 160 - Ø160 mm, glycerine filled, steel bottom flange
