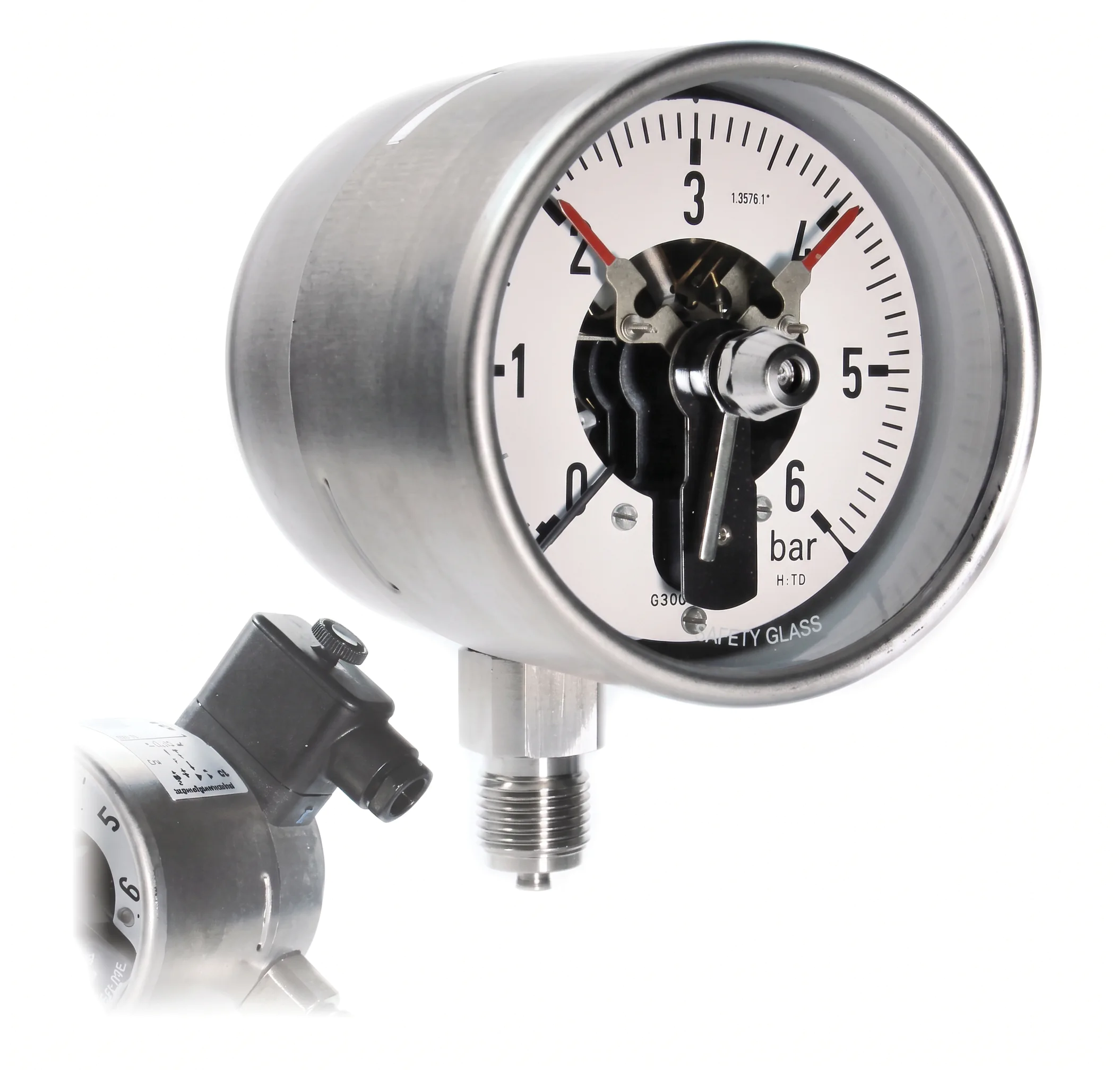

EMPEO contact pressure gauge is designed for pressure measurement and transmission of an electrical signal when a set limit is reached. Available in versions with magnetic or inductive contact, as well as oil-filled versions for operation under vibration.
Features:
Magnetic or inductive contact
1, 2 or 3 pin versions
Ø100 or Ø160 mm
G 1/2 bottom connection
Accuracy class 1.0
SPECIFICATIONS
AVAILABLE MODELS
DOCUMENTS
SPECIFICATIONS
Type
Contact pressure gauge
Models
K 120 - Ø100 mm, magnetic contact, without filler
K 160 - Ø160 mm, magnetic contact, without filler
KOE 120 - Ø100 mm, magnetic contact, filled with special oil
KOE 160 - Ø160 mm, magnetic contact, filled with special oil
KI 120 - Ø100 mm, inductive contact, without filler
KI 160 - Ø160 mm, inductive contact, without filler
KIOE 120 - Ø100 mm, inductive contact, oil filled
KIOE 160 - Ø160 mm, inductive contact, oil filled.
Measurement system
Copper alloy
Housing
Stainless steel with bayonet ring
Accuracy class
1,0
Nominal diameter
100mm or 160mm
Contacts
1 contact, 2 contacts, 3 contacts
Model
K 120, K 160, KOE 120, KOE 160, KI 120, KI 160, KIOE 120, KIOE 160
