Fields of application

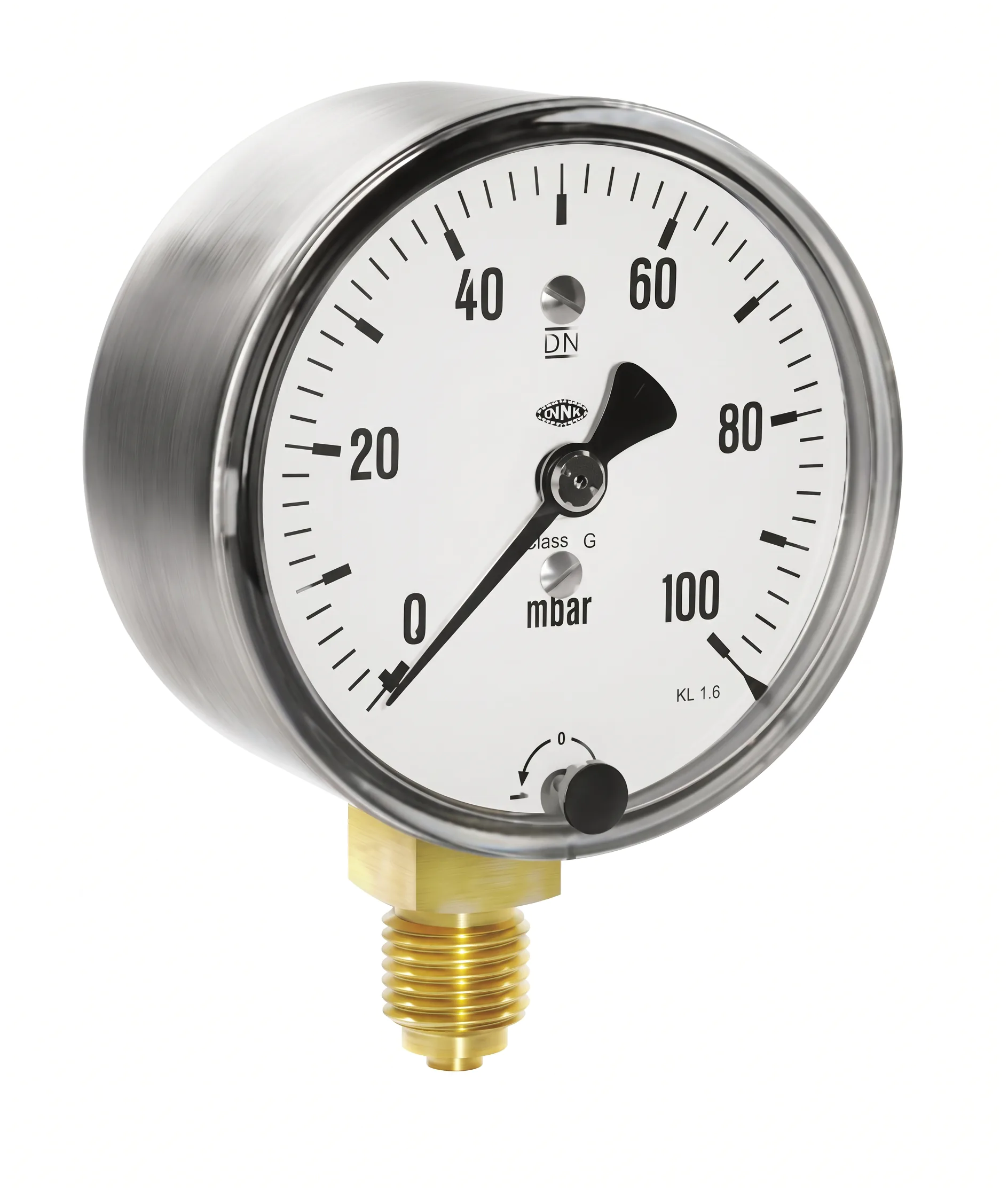

The EMPEO capsule manometer is designed to measure very low positive and negative gas pressures. The measuring ranges are from 25 to 600 mbar.
Features:
- For very low pressures and vacuum
- Stainless steel body
- Copper alloy measuring system
- Accuracy class 1.6
- Bottom or rear connection versions
- SPECIFICATIONS
-
AVAILABLE MODELS
- DOCUMENTS
SPECIFICATIONS
Type
Capsule manometer
Models
KP 63.11 / KPR 63.11 - Ø63 mm, G 1/4
KP 80.11 / KPR 80.11 - Ø80 mm, G 1/2
KP 120 / KPR 120 - Ø100 mm, G 1/2
KP 160 / KPR 160 - Ø160 mm, G 1/2
Measured pressure
Positive or negative very low pressure
Measured medium
Gases that are non-aggressive, non-crystallizing and compatible with materials in contact with the medium
Measurement system
Copper alloy
Housing
Stainless steel
Accuracy class
1,6
Connector position
Bottom or rear
Box/structure
Depending on the model, there is a polycarbonate or glass window, a front ring or a bayonet housing.
Model
KP 63.11, KPR 63.11, KP 80.11, KPR 80.11, KP 120, KPR 120, KP 160, KPR 160
