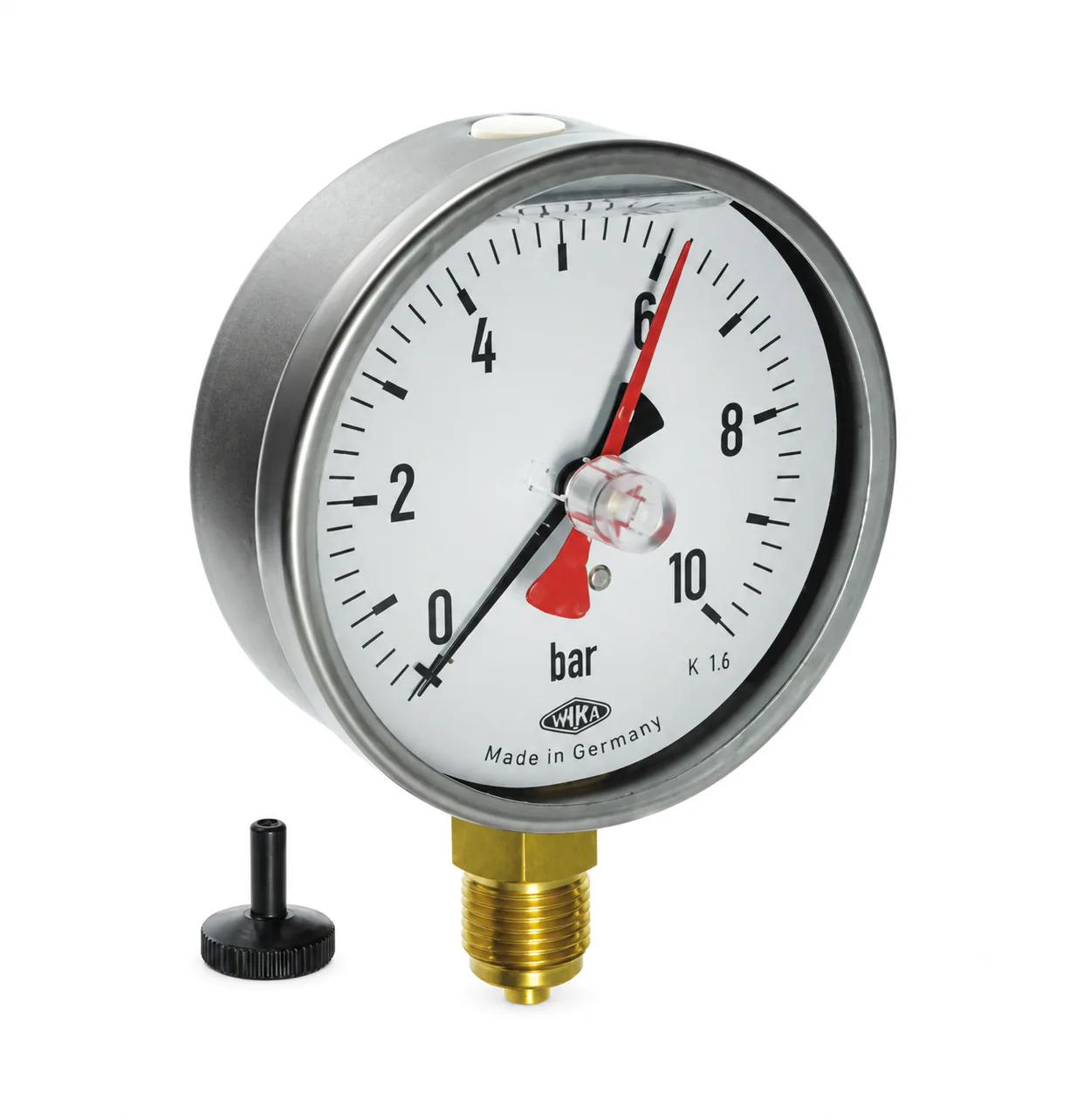

EMPEO glicerininis manometras

EMPEO glycerine manometer

Manometers, Pressure sensors

Fields of application

EMPEO glycerine-filled pressure gauge for measuring the pressure of liquid and gaseous media. The filled version is particularly suitable for systems with vibrations, pressure pulsations and high dynamic pressure. The medium must be compatible with copper alloys. The pressure gauges comply with EN 837-1 and are of accuracy class 1.6.



Features:

  • Nominal diameter: 50 mm
  • Glycerin-filled housing
  • Stainless steel body
  • Polycarbonate window
  • Copper alloy measuring system
  • Process connection: G 1/4
  • Accuracy class: 1.6
  • Bottom, rear or panel mount versions
  • Designed for systems exposed to vibrations and pressure pulsations
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Type

    Glycerin-filled manometer

  • Models

    GL 50.13 / GLR 50.13 / GLR 50.12

  • Standard

    EN 837-1

  • Nominal size

    50mm

  • Housing

    Stainless steel

  • Filler

    Glycerin

  • Window

    Polycarbonate

  • Measurement system

    Copper alloy

  • Process connection

    G 1/4

  • Installation options

    GL 50.13 – bottom connection
    GLR 50.13 – end connection
    GLR 50.12 – panel mounting with 3-piece front ring and U-shaped clamp.

  • Model

    GL 50.13 – bottom connection, GLR 50.13 – rear connection, GLR 50.12 – panel mounting
