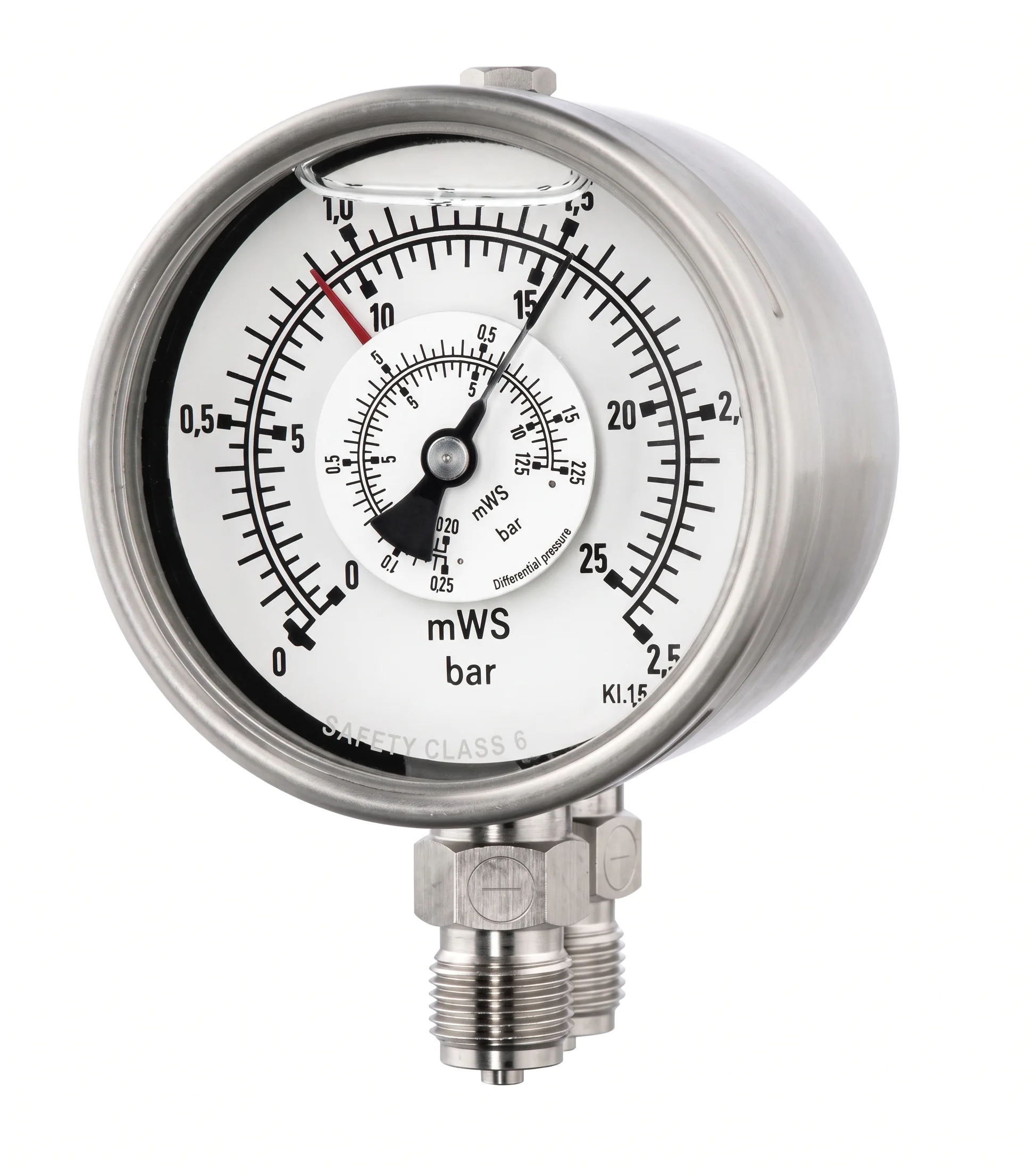

The EMPEO differential pressure gauge is designed to measure two pressures and determine their difference. The device has two separate pressure connections, marked + and −. The D and DN models allow you to monitor both pressures and their difference, while the DI 160 and DNI 160 directly indicate the differential pressure with a single arrow. In the DN and DNI versions, the measuring system is made of stainless steel.
Features:
Measuring the difference between two pressures
Two independent Bourdon tube systems
Two process connections: 2 × G 1/2
Bottom connections
Nominal sizes: 100 mm and 160 mm
Accuracy class: 1.6
D / DI – Copper alloy measurement system
DN / DNI – stainless steel measuring system
Glass window
DI 160 and DNI 160 – direct display of differential pressure
SPECIFICATIONS
AVAILABLE MODELS
DOCUMENTS
SPECIFICATIONS
Type
Differential pressure gauge
Models
D 100 - Ø100 mm, copper alloy measuring system, pointer and moving pointer scale
D 160 - Ø160 mm, copper alloy measuring system, pointer and moving pointer scale
DN 100 - Ø100 mm, stainless steel measuring system, pointer and moving pointer scale
DN 160 - Ø160 mm, stainless steel measuring system, pointer and moving pointer scale
DI 160 - Ø160 mm, single pointer for direct display of differential pressure
DNI 160 - Ø160 mm, stainless steel measuring system, single pointer for direct display of differential pressure.
Measuring principle
Two independent Bourdon tube measuring systems
Process connection
2 × G 1/2, lower
Measured size
Difference between two pressures / differential pressure
Pressure connections
2 × G 1/2
Position of connectors
Bottoms, one behind the other
Accuracy class
1,6
Housing
Black polyamide 6B
Measuring system material
D / DI – copper alloy
DN / DNI – stainless steel
Overpressure protection
None
Recommended minimum differential pressure for D/DN models
Not less than 20 % scale end values
DI/DNI static pressure
Should not exceed the next higher measurement range
