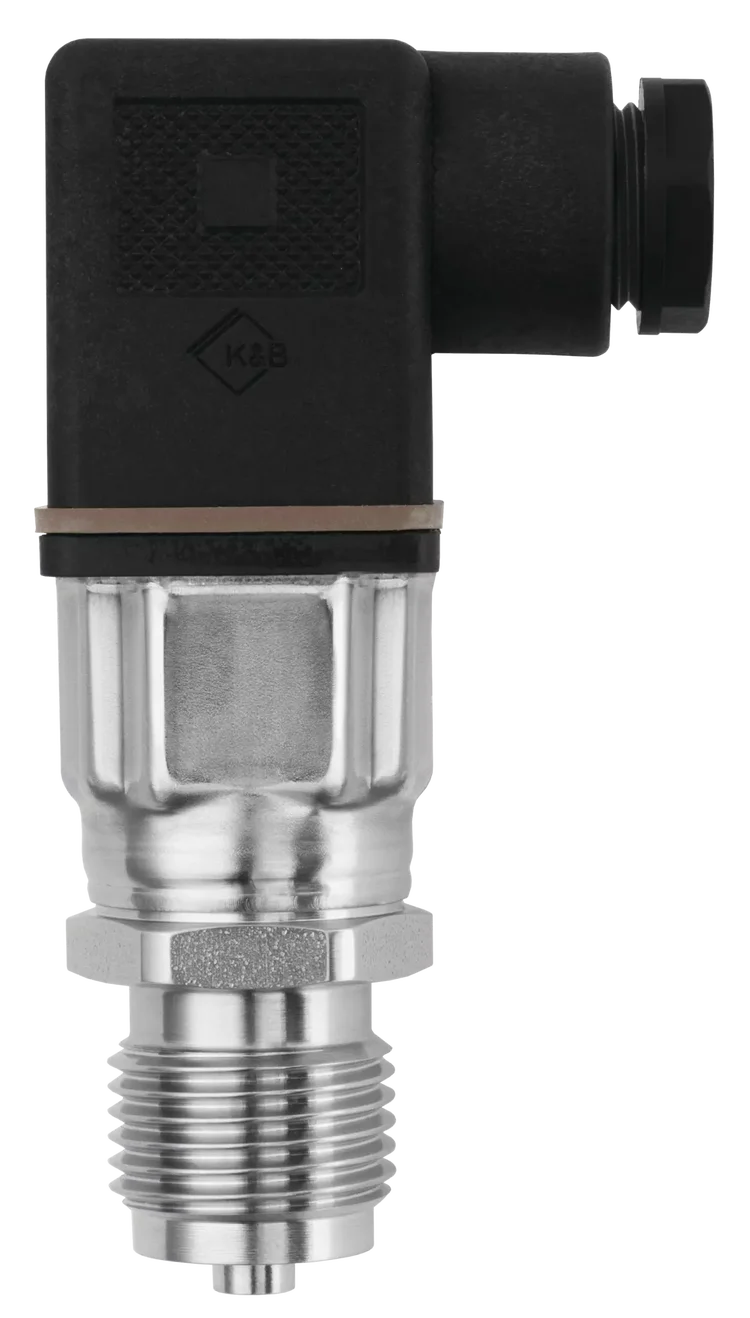

JUMO MIDAS S07 MA compact pressure transmitter

SPECIFICATIONS

• Type

  OEM compact pressure transmitter for marine systems

• Type number

  401021

• Measured pressure

  Relative or absolute

• Measuring principle

  Silicon sensor with stainless steel separating membrane

• Measurement range

  According to the selected product variation; up to 0…100 bar relative and 0…25 bar absolute pressure according to the datasheet ordering table

• Measured medium

  Liquids; designed for use in harsh environments

• Medium temperature

  Standard version -40…+125 °C; H2 ready version -40…+120 °C

• Accuracy

  0.2–0.3 %, depending on the range

• Output signal

  4-20 mA, 2-wire; 0-10 V DC; 1-5 V DC; 1-6 V DC

• Process connection

  G 1/8, G 1/4, G 3/8, G 1/2, 1/4-18 NPT, G 1/4 DIN 3852-11, 7/16-20 UNF

• Process connection material

  Stainless steel; 1.4404 / 1.4435 version available

• Membrane material

  Stainless steel 316 L

• Housing material

  Stainless steel 304

• Electrical connection

  Fixed cable, M12 or DIN EN 175301-803 form A

• Security class

  IP65–IP67 depending on electrical connection and pressure type; M12 version – IP66

• Ambient temperature

  Cable version -40…+100 °C, M12 and DIN connector versions up to -40…+125 °C

• Shock resistance

  50 g / 11 ms or 100 g / 1 ms

• Permissible humidity

  Operating up to 100 % RH, including condensation on the housing

• Certificates/approvals

  DNV, UL / UL Listed, H2 ready

• Additional options

  Throttle in the pressure channel, oil and grease free version, increased pressure channel, test report, H2 ready version
