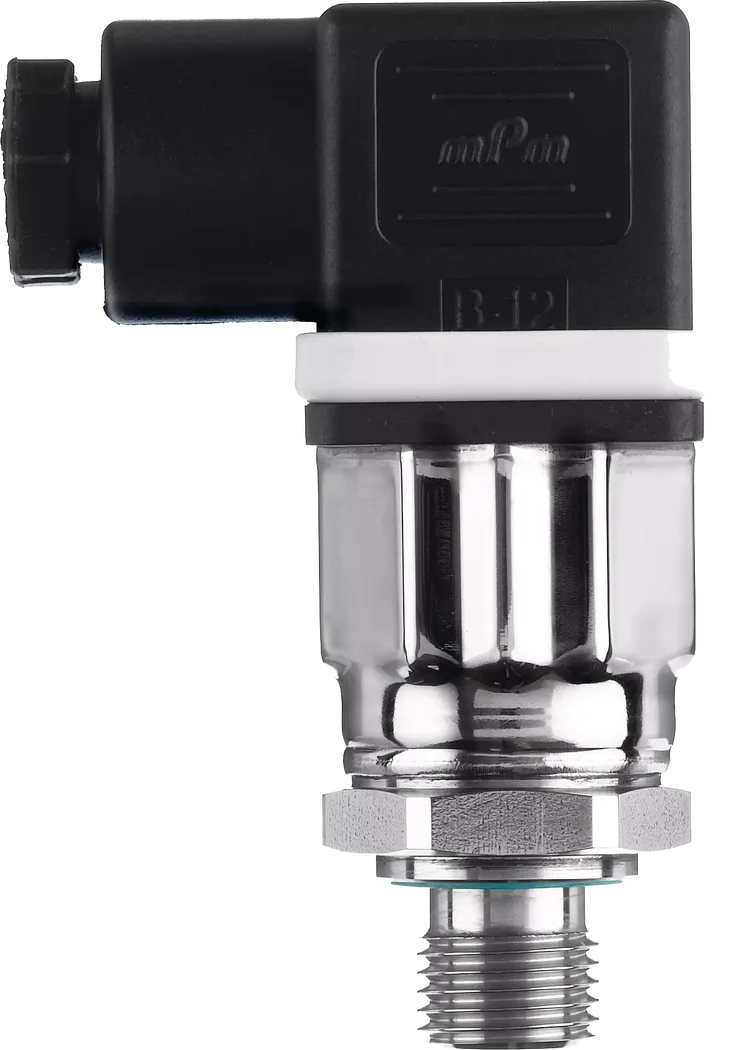

JUMO MIDAS S06 compact low pressure transmitter

SPECIFICATIONS

• Type

  OEM compact low pressure transmitter

• Type number

  401011

• Measured pressure

  Relative pressure

• Measuring principle

  Piezoresistive silicon sensor with stainless steel separating membrane

• Measurement range

  Depending on the selected product variation: from 0…100 mbar to 0…0.6 bar, as well as bidirectional ranges -100…+100 mbar and -400…+400 mbar

• Accuracy/linearity

  0.3–0.35 %, depending on the measurement range

• Measured medium

  Suitable for industrial and aggressive media; can also be used for level measurement

• Medium temperature

  0…+80 °C – for 100, 160, 250 mbar and -100…+100 mbar ranges
  -20…+100 °C – for ranges from 0.4 bar

• Output signal

  4-20 mA, 2-wire; 0.5-4.5 V DC; 0-10 V DC; 1-5 V DC; 1-6 V DC

• Separation membrane material

  Stainless steel 316 L

• Process connection material

  Stainless steel 304

• Housing material

  Stainless steel 304

• Process connection

  G 1/8, G 1/4, G 1/2, 1/4-18 NPT, G 1/4 DIN 3852-11, 7/16-20 UNF or 7/16-20 UNF female connection

• Electrical connection

  Cable, QUICKON, M12 × 1, DIN 72585 bayonet or DIN EN 175301-803 form A

• Security class

  IP66 with cable, QUICKON or M12 × 1; IP67 with bayonet connection; IP65 with DIN EN 175301-803 connection

• Vibration resistance

  Up to 20g, 10-2000Hz

• Shock resistance

  50 g / 11 ms or 100 g / 1 ms

• Permissible number of pressure cycles

  More than 10 million

• Additional options

  UL approval, throttle in the pressure channel, oil and grease-free version, increased pressure channel, railway version, technical passport.
