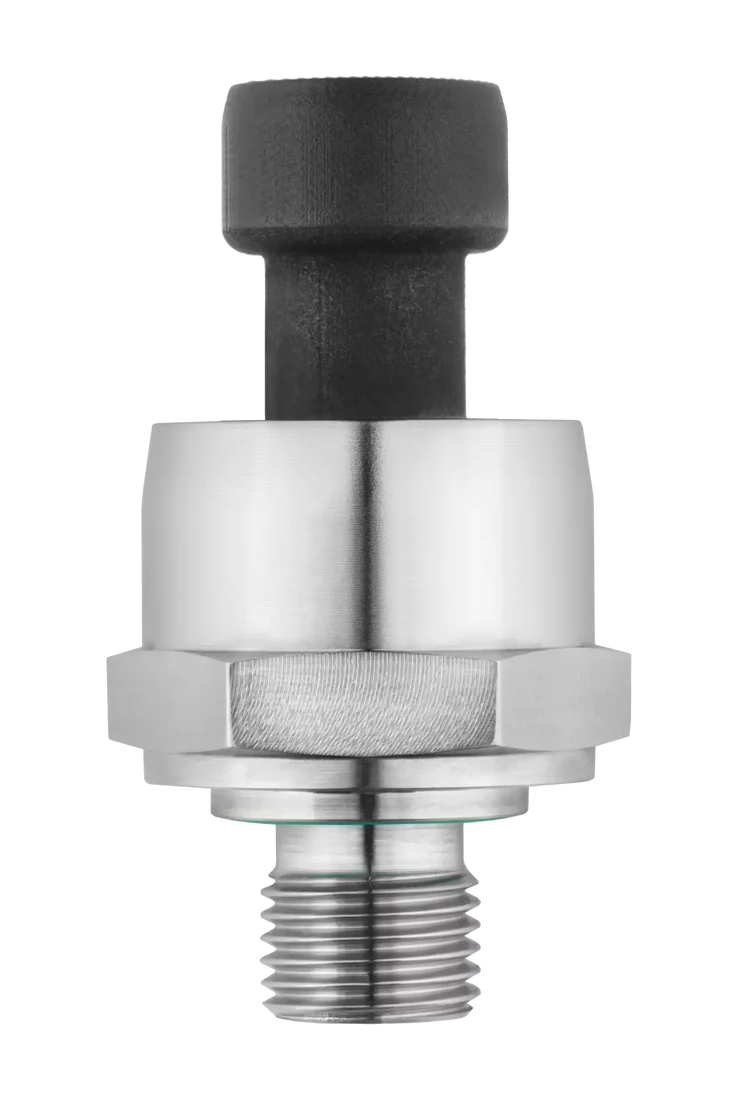

JUMO MIDAS H20 HP compact high-pressure transmitter

SPECIFICATIONS

• Type

  OEM compact high pressure transmitter

• Type number

  401020

• Measured pressure

  Relative pressure

• Measuring principle

  Thin-film measurement technology

• Measurement range

  Standard 0…100 to 0…1000 bar; in the standard G 1/4 configuration of the site according to the selected variation 0…100 to 0…400 bar

• Measured medium

  Liquids and gases

• Medium temperature

  -40…+125 °C

• Accuracy/linearity

  0.5–1 %, depending on version

• Output signal

  4-20 mA, 2-wire; 0.5-4.5 V DC; 0-10 V DC; 1-5 V DC; 1-6 V DC

• Process connection

  1/4-18 NPT; G 1/4 according to DIN 3852-11; 7/16-20 UNF

• Process connection material

  Stainless steel

• Electrical connection

  Cable; M12 × 1; Metri-Pack Series 150; DIN EN 175301-803 form A; AMP Superseal; Deutsch DT04

• Security class

  Up to IP69K, depending on the selected electrical connection

• Electrical resistance

  Up to 500 V AC

• Mechanical resistance

  High resistance to vibration, shock and pressure peaks

• Construction

  Compact, from approx. 35 mm in length

• Certificates/approvals

  UL and ECE type approval available

• Additional options

  Throttle in the pressure channel; UL approval; oil and grease-free version
