JUMO MIDAS C08 kompaktiškas slėgio siųstuvas

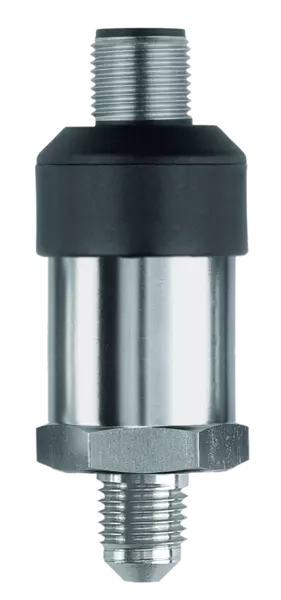

JUMO MIDAS C08 compact pressure transmitter

Compact pressure transmitters, Pressure sensors

Fields of application

The JUMO MIDAS C08 is a compact OEM pressure transmitter for measuring relative pressure in liquids and gases. The ceramic measuring element ensures long-term stability, and the robust design offers high vibration resistance. Suitable for compressors, pneumatic equipment, machine construction, commercial transport and building engineering systems.

Features:

  • Relative pressure measurement up to 60 bar
  • Long-term stability < 0.2 % per year
  • Ceramic Al₂O₃ measuring element
  • High vibration resistance – up to 50 g
  • Medium temperature up to +125 °C
  • Compact OEM design
  • QUICKON quick connection technology available
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Type

    OEM compact pressure transmitter

  • Type number

    401002

  • Measured pressure

    Relative pressure

  • Measuring principle

    Piezoresistive, thick-film ceramic measuring element

  • Measurement range

    Depending on the selected product variation, up to -1…+60 bar

  • Measured medium

    Liquids and gases

  • Medium temperature

    -20…+125 °C

  • Output signal

    4-20mA; 0.5-4.5V DC; 0-10 V DC; 1 to (5)6 V DC

  • Measuring element material

    Ceramic

  • Process connection

    G 1/4, G 1/2, 1/4-18 NPT, G 1/4 DIN 3852-11, 7/16-20 UNF

  • Process connection material

    Stainless steel

  • Sealant

    According to the selected configuration

  • Security class

    IP67 or IP65, depending on electrical connection

  • Electrical connection

    Cable, QUICKON, M12 × 1, DIN 72585 bayonet, DIN EN 175301-803 form A

  • Additional options

    Throttle in the pressure channel, UL, oil and grease-free version, increased pressure channel, test report
