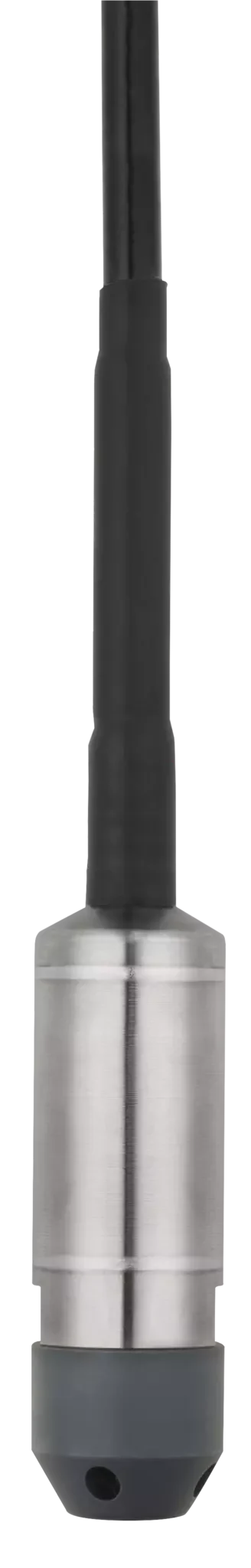

JUMO MAERA S29 SW

SPECIFICATIONS

• Type

  Submersible hydrostatic level gauge

• Type number

  404393

• Measured size

  Liquid level/hydrostatic pressure

• Measuring principle

  Piezoresistive silicon sensor with separating membrane and synthetic pressure transmission fluid

• Measurement range

  Depending on the selected product variation, up to 1…100 mH₂O / 0.1…10 bar

• Mounting position

  Vertical, hanging by a cable

• Measured medium

  Liquids; water, sewage, well water, rainwater, sea water, diesel, heating oil, chlorinated swimming pool water and other compatible media

• Medium temperature

  According to the latest datasheet -10…+60 °C; the sensor cannot freeze in the medium.

• Output signal

  4-20 mA, 2-wire

• Response time

  t90 = 2ms

• Power supply

  For standard 000 version 16-28 V DC, nominally 24 V DC

• Process connection

  Front flush connection with protective cap; Ø95 mm protective cage version also available for stainless steel version

• Process connection material

  Titanium Grade 2 or stainless steel 316L

• Measuring membrane

  Titanium Grade 2 or stainless steel 316L

• Housing material

  Titanium Grade 2 or stainless steel 316L

• Cable material

  FEP for titanium version or PUR for stainless steel version; both UV resistant

• Cable length

  Our standard package is 5 m; the manufacturer allows other lengths upon request

• Security class

  IP68

• Housing diameter

  About 27mm

• Weight without cable

  Titanium version approx. 109 g, stainless steel version approx. 200 g

• Reverse polarity protection

  Yes

• Certification options

  ATEX, IECEx, UKEX, DNV; marine approval available for titanium version

• Additional versions

  For explosive environments, shipping or combined shipping + Ex version.
