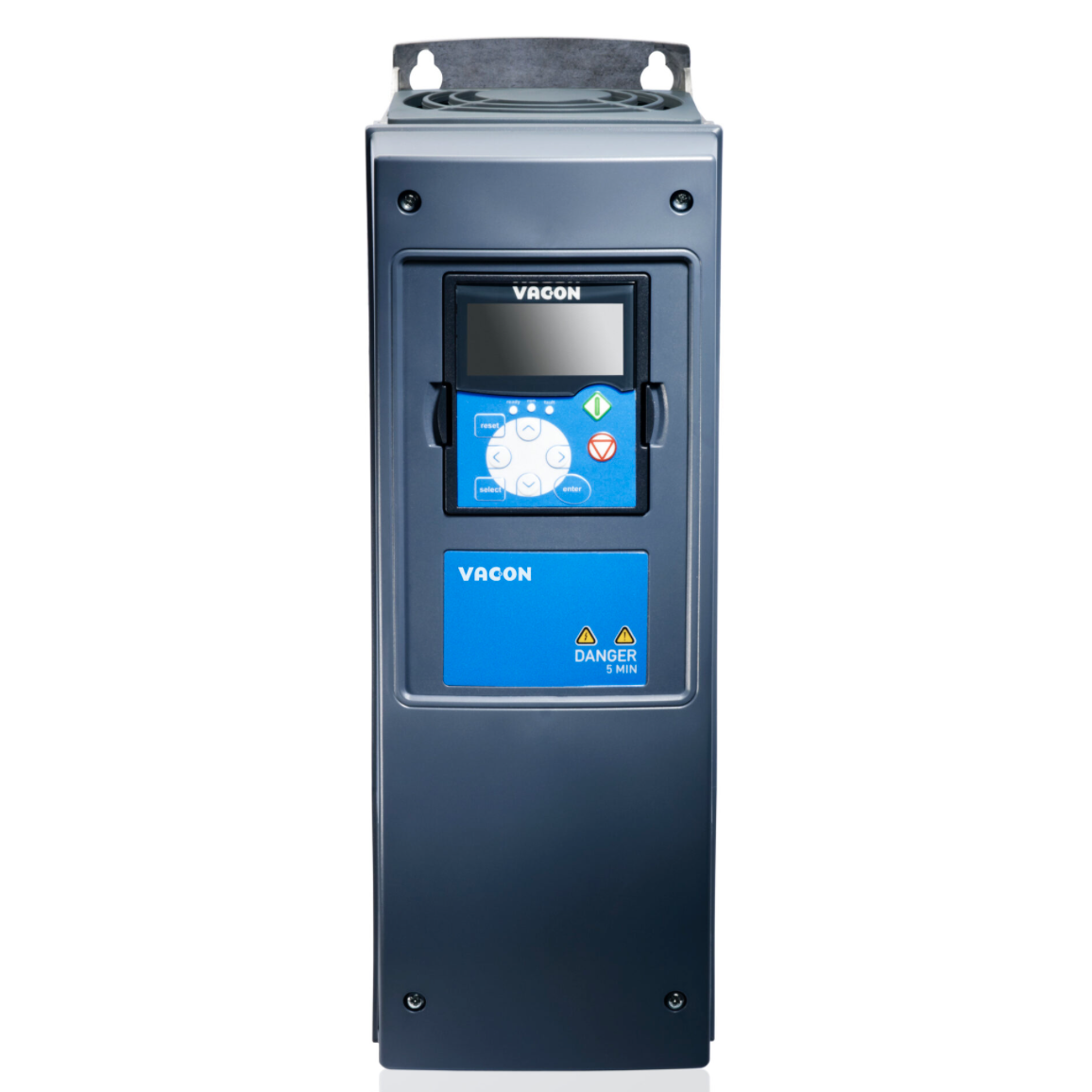

VACON NXP

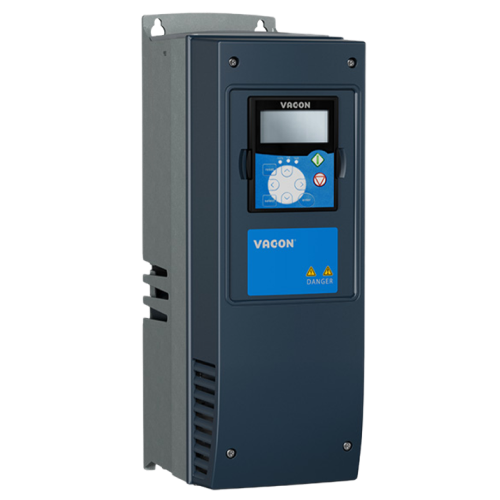

VACON NXP - Paveikslėlis 2

VACON NXP

Dažnio keitikliai

Taikymo sritys

VACON NXP dažnio keitikliai užtikrina tikslų variklio valdymą ir aukštą našumą visose sąlygose, pritaikyti iki 2 MW galios.

Savybės:

  • Platus galios ir įtampos diapazonas iki 2 MW

  • Universalus pritaikymas įvairiems poreikiams

  • Asinchroninių ir nuolatinių magnetų variklių valdymas

  • Jūrų klasifikavimo sertifikatai

  • Funkcinės saugos priemonės

  • SPECIFIKACIJOS
  • GALIMI MODELIAI
  • DOKUMENTAI

SPECIFIKACIJOS

  • Dokumentacija

    VACON NXC/NXP Brošiūra

  • Paskirtis

    visoms aplikacijoms, ypač liftams, kranams, kėlimo technikai.

  • Meniu atvaizdavimas

    grafinis

  • Galia

    1.1 ÷ 2000 kW

  • Įėjimo įtampa

    380 ÷ 690 V

  • Nominali srovė

    261 ÷ 2150A

  • Įėjimas

    2 x AI
    6 x DI
    10V, ref.
    24V in

  • Išėjimas

    1 x AO
    1 x DO
    2 x RO + TI

  • Dinaminis valdymas

    su stabdžio rezistoriaus funkcija

  • Išėjimo dažnis

    0 ÷ 320Hz, skiriamoji geba: 0.01Hz

  • Leistina perkrova

    Inom x 1.5 maks.

  • Valdymas

    Atviros kilpos vektoriaus valdymas (5-150% bazinio greičio)
    Rampos greitis (pagreitėjimas ir lėtėjimas): 0.1 ÷ 3000 s

  • Aplinkos temperatūra

    –10 °C (no frost)…+50 °C: IH (≥FR10 + 40 °C) 95% RH

  • Apsaugos klasė

    IP21, IP54

  • Elektromagnetinis suderinamumas

    RFI filtras, C2 kategorija pagal EN61800-3

  • Komunikacijos

    ModBus RS485 (standartas), Ethernet (standartas) CANopen, Device NET, Profibus DP

GALIMI MODELIAI

Prekės kodas IP klasė Įtampa Galia Srovė Kaina
NXP00032-A2H1SSS-A1A2000000 IP21 208 ÷ 240 V 0,55kW 3.7A
NXP00032-A5H1SSS-A1A2000000 IP54 208 ÷ 240 V 0,55kW 3.7A
NXP00035-A2H1SSS-A1A2000000 IP21 380 ÷ 500 V 1,1kW 3.3A
NXP00035-A5H1SSS-A1A2000000 IP54 380 ÷ 500 V 1,1kW 3.3A
NXP00042-A2H1SSS-A1A2000000 IP21 208 ÷ 240 V 0,75kW 4.8A
NXP00042-A5H1SSS-A1A2000000 IP54 208 ÷ 240 V 0,75kW 4.8A
NXP00045-A2H1SSS-A1A2000000 IP21 380 ÷ 500 V 1,5kW 4.3A
NXP00045-A5H1SSS-A1A2000000 IP54 380 ÷ 500 V 1,5kW 4.3A
NXP00046-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 3kW 4.5A
NXP00046-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 3kW 4.5A
NXP00055-A2H1SSS-A1A2000000 IP21 380 ÷ 500 V 2,2kW 5.6A
NXP00055-A5H1SSS-A1A2000000 IP54 380 ÷ 500 V 2,2kW 5.6A
NXP00056-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 4kW 5.5A
NXP00056-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 4kW 5.5A
NXP00072-A2H1SSS-A1A2000000 IP21 208 ÷ 240 V 1,1kW 6.6A
NXP00072-A5H1SSS-A1A2000000 IP54 208 ÷ 240 V 1,1kW 6.6A
NXP00075-A2H1SSS-A1A2000000 IP21 380 ÷ 500 V 3kW 7.6A
NXP00075-A5H1SSS-A1A2000000 IP54 380 ÷ 500 V 3kW 7.6A
NXP00076-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 5,5kW 7.5A
NXP00076-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 5,5kW 7.5A
NXP00082-A2H1SSS-A1A2000000 IP21 208 ÷ 240 V 1,5kW 7.8A
NXP00082-A5H1SSS-A1A2000000 IP54 208 ÷ 240 V 1,5kW 7.8A
NXP00095-A2H1SSS-A1A2000000 IP21 380 ÷ 500 V 4kW 9A
NXP00095-A5H1SSS-A1A2000000 IP54 380 ÷ 500 V 4kW 9A
NXP00106-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 7,5kW 10A
NXP00106-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 7,5kW 10A
NXP00112-A2H1SSS-A1A2000000 IP21 208 ÷ 240 V 2,2kW 11A
NXP00112-A5H1SSS-A1A2000000 IP54 208 ÷ 240 V 2,2kW 11A
NXP00122-A2H1SSS-A1A2000000 IP21 208 ÷ 240 V 3kW 12.5A
NXP00122-A5H1SSS-A1A2000000 IP54 208 ÷ 240 V 3kW 12.5A
NXP00125-A2H1SSS-A1A2000000 IP21 380 ÷ 500 V 5,5kW 12A
NXP00125-A5H1SSS-A1A2000000 IP54 380 ÷ 500 V 5,5kW 12A
NXP00136-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 11kW 13.5A
NXP00136-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 11kW 13.5A
NXP00165-A2H1SSS-A1A2000000 IP21 380 ÷ 500 V 7,5kW 16A
NXP00165-A5H1SSS-A1A2000000 IP54 380 ÷ 500 V 7,5kW 16A
NXP00172-A2H1SSS-A1A2000000 IP21 208 ÷ 240 V 4kW 17.5A
NXP00172-A5H1SSS-A1A2000000 IP54 208 ÷ 240 V 4kW 17.5A
NXP00186-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 15kW 18A
NXP00186-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 15kW 18A
NXP00225-A2H1SSS-A1A2000000 IP21 380 ÷ 500 V 11kW 23A
NXP00225-A5H1SSS-A1A2000000 IP54 380 ÷ 500 V 11kW 23A
NXP00226-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 18,5kW 22A
NXP00226-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 18,5kW 22A
NXP00252-A2H1SSS-A1A2000000 IP21 208 ÷ 240 V 5,5kW 25A
NXP00252-A5H1SSS-A1A2000000 IP54 208 ÷ 240 V 5,5kW 25A
NXP00276-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 22kW 27A
NXP00276-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 22kW 27A
NXP00312-A2H1SSS-A1A2000000 IP21 208 ÷ 240 V 7,5kW 31A
NXP00312-A5H1SSS-A1A2000000 IP54 208 ÷ 240 V 7,5kW 31A
NXP00315-A2H1SSS-A1A2000000 IP21 380 ÷ 500 V 15kW 31A
NXP00315-A5H1SSS-A1A2000000 IP54 380 ÷ 500 V 15kW 31A
NXP00346-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 30kW 34A
NXP00346-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 30kW 34A
NXP00385-A2H1SSS-A1A2000000 IP21 380 ÷ 500 V 18,5kW 38A
NXP00385-A5H1SSS-A1A2000000 IP54 380 ÷ 500 V 18,5kW 38A
NXP00416-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 37,5kW 41A
NXP00416-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 37,5kW 41A
NXP00455-A2H1SSS-A1A2000000 IP21 380 ÷ 500 V 22kW 46A
NXP00455-A5H1SSS-A1A2000000 IP54 380 ÷ 500 V 22kW 46A
NXP00482-A2H1SSS-A1A2000000 IP21 208 ÷ 240 V 11kW 48A
NXP00482-A5H1SSS-A1A2000000 IP54 208 ÷ 240 V 11kW 48A
NXP00526-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 45kW 52A
NXP00526-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 45kW 52A
NXP00612-A2H1SSS-A1A2000000 IP21 208 ÷ 240 V 15kW 61A
NXP00612-A5H1SSS-A1A2000000 IP54 208 ÷ 240 V 15kW 61A
NXP00615-A2H1SSS-A1A2000000 IP21 380 ÷ 500 V 30kW 61A
NXP00615-A5H1SSS-A1A2000000 IP54 380 ÷ 500 V 30kW 61A
NXP00626-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 55kW 62A
NXP00626-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 55kW 62A
NXP00725-A2H0SSS-A1A2000000 IP21 380 ÷ 500 V 37kW 72A
NXP00725-A5H0SSS-A1A2000000 IP54 380 ÷ 500 V 37kW 72A
NXP00752-A2H0SSS-A1A2000000 IP21 208 ÷ 240 V 18,5kW 75A
NXP00752-A5H0SSS-A1A2000000 IP54 208 ÷ 240 V 18,5kW 75A
NXP00806-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 75kW 80A
NXP00806-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 75kW 80A
NXP00875-A2H0SSS-A1A2000000 IP21 380 ÷ 500 V 45kW 87A
NXP00875-A5H0SSS-A1A2000000 IP54 380 ÷ 500 V 45kW 87A
NXP00882-A2H0SSS-A1A2000000 IP21 208 ÷ 240 V 22kW 88A
NXP00882-A5H0SSS-A1A2000000 IP54 208 ÷ 240 V 22kW 88A
NXP01006-A2L0SSS-A1A2000000 IP21 525 ÷ 690 V 90kW 100A
NXP01006-A5L0SSS-A1A2000000 IP54 525 ÷ 690 V 90kW 100A
NXP01055-A2H0SSS-A1A2000000 IP21 380 ÷ 500 V 55kW 105A
NXP01142-A2H0SSS-A1A2000000 IP21 208 ÷ 240 V 30kW 114A
NXP01142-A5H0SSS-A1A2000000 IP54 208 ÷ 240 V 30kW 114A
NXP01256-A2L0SSF-A1A2000000 IP21 525 ÷ 690 V 110kW 125A
NXP01256-A5L0SSF-A1A2000000 IP54 525 ÷ 690 V 110kW 125A
NXP01402-A2H0SSS-A1A2000000 IP21 208 ÷ 240 V 37kW 140A
NXP01402-A5H0SSS-A1A2000000 IP54 208 ÷ 240 V 37kW 140A
NXP01405-A2H0SSS-A1A2000000 IP21 380 ÷ 500 V 75kW 140A
NXP01405-A5H0SSS-A1A2000000 IP54 380 ÷ 500 V 75kW 140A
NXP01446-A2L0SSF-A1A2000000 IP21 525 ÷ 690 V 132kW 144A
NXP01446-A5L0SSF-A1A2000000 IP54 525 ÷ 690 V 132kW 144A
NXP01685-A2H0SSS-A1A2000000 IP21 380 ÷ 500 V 90kW 170A
NXP01685-A5H0SSS-A1A2000000 IP54 380 ÷ 500 V 90kW 170A
NXP01702-A2H0SSS-A1A2000000 IP21 208 ÷ 240 V 45kW 170A
NXP01702-A5H0SSS-A1A2000000 IP54 208 ÷ 240 V 45kW 170A
NXP01706-A2L0SSF-A1A2000000 IP21 525 ÷ 690 V 160kW 170A
NXP01706-A5L0SSF-A1A2000000 IP54 525 ÷ 690 V 160kW 170A
NXP02052-A2H0SSS-A1A2000000 IP21 208 ÷ 240 V 55kW 205A
NXP02052-A5H0SSS-A1A2000000 IP54 208 ÷ 240 V 55kW 205A
NXP02055-A2H0SSS-A1A2000000 IP21 380 ÷ 500 V 110kW 205A
NXP02055-A5H0SSS-A1A2000000 IP54 380 ÷ 500 V 110kW 205A
NXP02086-A2L0SSF-A1A2000000 IP21 525 ÷ 690 V 200kW 208A
NXP02086-A5L0SSF-A1A2000000 IP54 525 ÷ 690 V 200kW 208A
NXP02612-A2H0SSF-A1A2000000 IP21 208 ÷ 240 V 75kW 261A
NXP02612-A5H0SSF-A1A2000000 IP54 208 ÷ 240 V 75kW 261A
NXP02615-A2H0SSF-A1A2000000 IP21 380 ÷ 500 V 132kW 261A
NXP02615-A5H0SSF-A1A2000000 IP54 380 ÷ 500 V 132kW 261A
NXP03002-A2H0SSF-A1A2000000 IP54 208 ÷ 240 V 90kW 300A
NXP03002-A5H0SSF-A1A2000000 IP21 208 ÷ 240 V 90kW 300A
NXP03005-A2H0SSF-A1A2000000 IP21 380 ÷ 500 V 160kW 300A
NXP03005-A5H0SSF-A1A2000000 IP54 380 ÷ 500 V 160kW 300A
