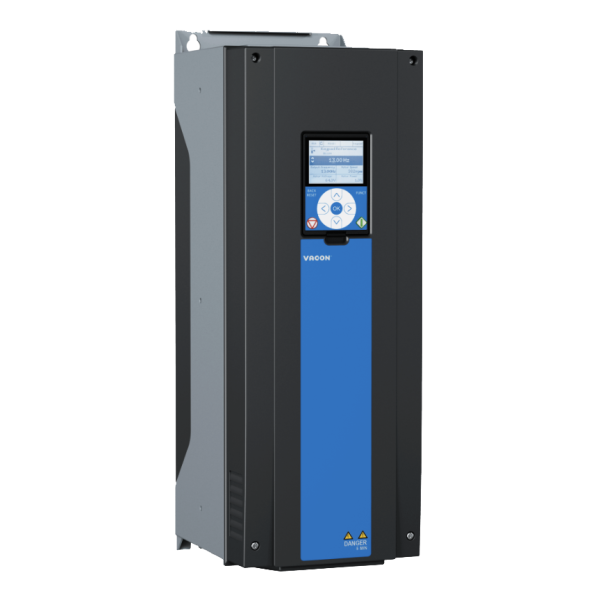

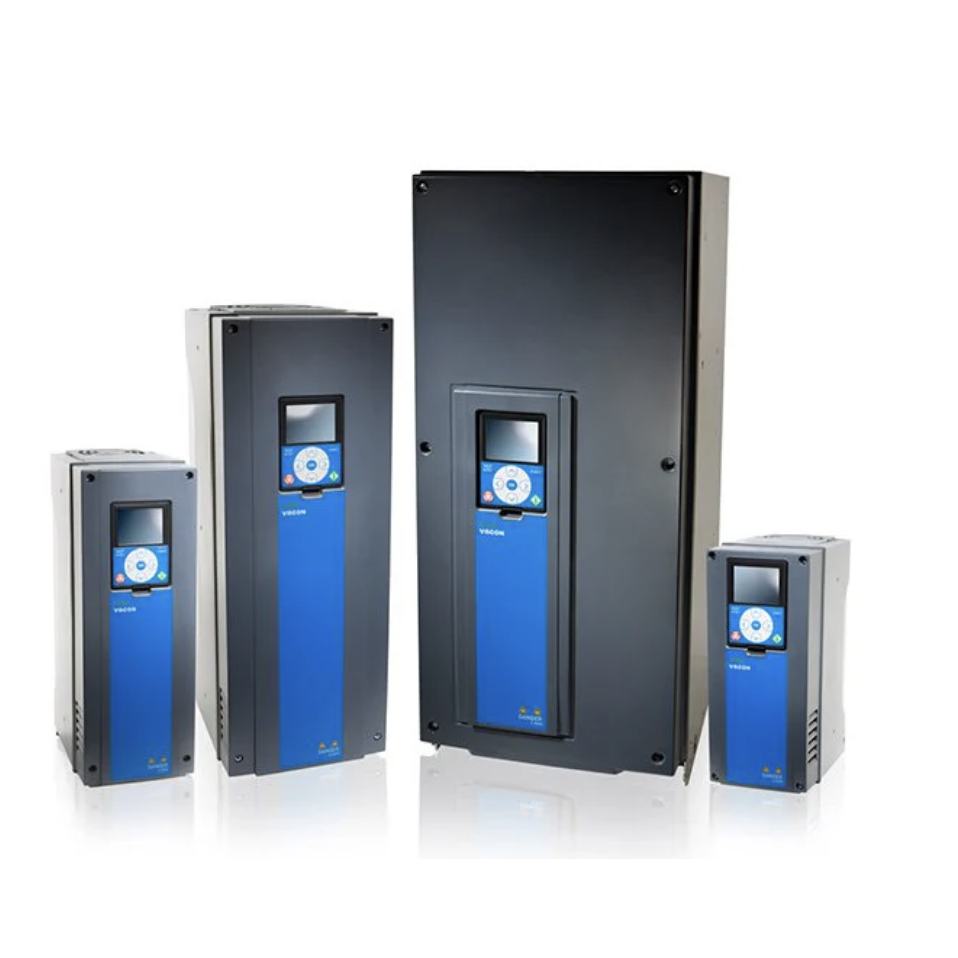

VACON 100 FLOW – kintamosios srovės pavara, skirta srauto valdymui vandens, nuotekų valymo ir pastatų automatikos sistemose, su specialiomis funkcijomis kelių siurblių valdymui.
Savybės
Efektyvi integracija siurbliams, ventiliatoriams ir kompresoriams
Ilgas tarnavimo laikas dėka plėvelinio kondensatoriaus
Paprastas paleidimas su grafiniu programavimo vedliu
Integruotas Ethernet ir RS485 ryšys automatikai
Dokumentacija
VACON 100 FLOW BrošiūraPaskirtis
skirti siurblių ventiliatorių, kompresorių, orapūčių valdymui
Meniu atvaizdavimas
grafinis
Galia
0,55kW ÷ 800 kW
Įėjimo Įtampa
208 ÷ 240VAC / 380 ÷ 500VAC / 525 ÷ 600VAC
Srovė
3.4 ÷ 386A
Įėjimas
2 x AI
6 x DI
10V, ref.
24V in
Išėjimas
1 x AO
3 x RO
2 x RO + TI
2 x 24V out
integruoti moduliai: Modbus TCP/IP, BACnet IP, PROFINET, EtherNet/IP
Dinaminis valdymas
be stabdžių rezistoriaus
Išėjimo dažnis
0 ÷ 320Hz, skiriamoji geba: 0.01Hz
Leistina perkrova
Inom x 1.1 maks. 1min/10min
Valdymas
vietinis, nuotolinis, PID kontroleris, “miego” režimas (SW)
Aplinkos temperatūra
-10 ÷ 40°C, 95% RH
Apsaugos klasė
IP21, IP54
Elektromagnetinis suderinamumas
RFI filtras, C2 kategorija pagal EN61800-3
Komunikacijos
ModBus RS485 (standartas), Ethernet (standartas) CANopen, Device NET, Profibus DP
Sertifikatai
SIL3, DNV -GL, BV, LR, ABS and RINA
| Prekės kodas | IP klasė | Įtampa | Galia | Srovė | Kaina |
|---|---|---|---|---|---|
| VACON0100-3L-0310-5-FLOW | IP21 | 380 ÷ 500 V | 160kW | 310A | |
| VACON0100-3L-0310-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 160kW | 310A | |
| VACON0100-3L-0310-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 160kW | 310A | |
| VACON0100-3L-0325-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 315kW | 325A | |
| VACON0100-3L-0385-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 355kW | 385A | |
| VACON0100-3L-0386-5-FLOW | IP21 | 380 ÷ 500 V | 200kW | 386A | |
| VACON0100-3L-0386-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 200kW | 386A | |
| VACON0100-3L-0416-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 400kW | 416A | |
| VACON0100-3L-0460-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 250kW | 460A | |
| VACON0100-3L-0461-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 450kW | 461A | |
| VACON0100-3L-0520-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 250kW | 520A | |
| VACON0100-3L-0521-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 500kW | 520A | |
| VACON0100-3L-0590-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 315kW | 590A | |
| VACON0100-3L-0590-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 560kW | 590A | |
| VACON0100-3L-0650-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 630kW | 650A | |
| VACON0100-3L-0651-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 355kW | 651A | |
| VACON0100-3L-0731-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 400kW | 730A | |
| VACON0100-3L-0750-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 710kW | 750A | |
| VACON0100-3L-0820-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 450kW | 820A | |
| VACON0100-3L-0820-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 800kW | 820A | |
| VACON0100-3L-0920-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 500kW | 920A | |
| VACON0100-3L-1040-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 560kW | 1040A | |
| VACON0100-3L-1180-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 630kW | 1180A | |
| VACON0100-3L-0140-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 75kW | 140A | |
| VACON0100-3L-0140-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 75kW | 140A | |
| VACON0100-3L-0144-7-FLOW | IP21 | 525 ÷ 690 V | 132kW | 144A | |
| VACON0100-3L-0144-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 132kW | 144A | |
| VACON0100-3L-0144-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 132kW | 144A | |
| VACON0100-3L-0170-2-FLOW | IP21 | 208 ÷ 240 V | 45kW | 170A | |
| VACON0100-3L-0170-2-FLOW+IP00 | IP00 | 208 ÷ 240 V | 45kW | 170A | |
| VACON0100-3L-0170-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 45kW | 170A | |
| VACON0100-3L-0170-5-FLOW | IP21 | 380 ÷ 500 V | 90kW | 170A | |
| VACON0100-3L-0170-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 90kW | 170A | |
| VACON0100-3L-0170-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 90kW | 170A | |
| VACON0100-3L-0170-7-FLOW | IP21 | 525 ÷ 690 V | 160kW | 170A | |
| VACON0100-3L-0170-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 160kW | 170A | |
| VACON0100-3L-0170-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 160kW | 170A | |
| VACON0100-3L-0205-2-FLOW | IP21 | 208 ÷ 240 V | 55kW | 205A | |
| VACON0100-3L-0205-2-FLOW+IP00 | IP00 | 208 ÷ 240 V | 55kW | 205A | |
| VACON0100-3L-0205-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 55kW | 205A | |
| VACON0100-3L-0205-5-FLOW | IP21 | 380 ÷ 500 V | 110kW | 205A | |
| VACON0100-3L-0205-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 110kW | 205A | |
| VACON0100-3L-0205-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 110kW | 205A | |
| VACON0100-3L-0208-7-FLOW | IP21 | 525 ÷ 690 V | 200kW | 208A | |
| VACON0100-3L-0208-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 200kW | 208A | |
| VACON0100-3L-0208-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 200kW | 208A | |
| VACON0100-3L-0261-2-FLOW | IP21 | 208 ÷ 240 V | 75kW | 261A | |
| VACON0100-3L-0261-2-FLOW+IP00 | IP00 | 208 ÷ 240 V | 75kW | 261A | |
| VACON0100-3L-0261-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 75kW | 261A | |
| VACON0100-3L-0261-5-FLOW | IP21 | 380 ÷ 500 V | 132kW | 261A | |
| VACON0100-3L-0261-5-FLOW+IP00 | IP00 | 380 ÷ 500 V | 132kW | 261A | |
| VACON0100-3L-0261-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 132kW | 261A | |
| VACON0100-3L-0262-7-FLOW | IP21 | 525 ÷ 690 V | 250kW | 261A | |
| VACON0100-3L-0262-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 250kW | 261A | |
| VACON0100-3L-0310-2-FLOW | IP21 | 208 ÷ 240 V | 90kW | 310A | |
| VACON0100-3L-0310-2-FLOW+IP00 | IP00 | 208 ÷ 240 V | 90kW | 310A | |
| VACON0100-3L-0310-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 90kW | 310A | |
| VACON0100-3L-0140-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 37kW | 140A | |
| VACON0100-3L-0140-5-FLOW | IP21 | 380 ÷ 500 V | 75kW | 140A | |
| VACON0100-3L-0003-2-FLOW | IP21 | 208 ÷ 240 V | 0,55kW | 3.7A | |
| VACON0100-3L-0003-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 0,55kW | 3.7A | |
| VACON0100-3L-0003-5-FLOW | IP21 | 380 ÷ 500 V | 1,1kW | 3.4A | |
| VACON0100-3L-0003-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 1,1kW | 3.4A | |
| VACON0100-3L-0004-2-FLOW | IP21 | 208 ÷ 240 V | 0,75kW | 4.8A | |
| VACON0100-3L-0004-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 0,75kW | 4.8A | |
| VACON0100-3L-0004-5-FLOW | IP21 | 380 ÷ 500 V | 1,5kW | 4.8A | |
| VACON0100-3L-0004-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 1,5kW | 4.8A | |
| VACON0100-3L-0005-5-FLOW | IP21 | 380 ÷ 500 V | 2,2kW | 5.6A | |
| VACON0100-3L-0005-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 2,2kW | 5.6A | |
| VACON0100-3L-0007-2-FLOW | IP21 | 208 ÷ 240 V | 1,1kW | 6.6A | |
| VACON0100-3L-0007-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 1,1kW | 6.6A | |
| VACON0100-3L-0007-7-FLOW | IP21 | 525 ÷ 690 V | 5,5kW | 7.5A | |
| VACON0100-3L-0007-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 5,5kW | 7.5A | |
| VACON0100-3L-0011-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 2,2kW | 11A | |
| VACON0100-3L-0008-2-FLOW | IP21 | 208 ÷ 240 V | 1,5kW | 8A | |
| VACON0100-3L-0018-2-FLOW | IP21 | 208 ÷ 240 V | 4kW | 18A | |
| VACON0100-3L-0008-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 1,5kW | 8A | |
| VACON0100-3L-0008-5-FLOW | IP21 | 380 ÷ 500 V | 3kW | 8A | |
| VACON0100-3L-0018-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 4kW | 18A | |
| VACON0100-3L-0008-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 3kW | 8A | |
| VACON0100-3L-0018-7-FLOW | IP21 | 525 ÷ 690 V | 15kW | 18A | |
| VACON0100-3L-0012-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 3kW | 12.5A | |
| VACON0100-3L-0018-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 15kW | 18A | |
| VACON0100-3L-0009-5-FLOW | IP21 | 380 ÷ 500 V | 4kW | 9A | |
| VACON0100-3L-0022-7-FLOW | IP21 | 525 ÷ 690 V | 18,5kW | 22A | |
| VACON0100-3L-0012-5-FLOW | IP21 | 380 ÷ 500 V | 5,5kW | 12A | |
| VACON0100-3L-0022-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 18,5kW | 22A | |
| VACON0100-3L-0009-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 4kW | 9A | |
| VACON0100-3L-0023-5-FLOW | IP21 | 380 ÷ 500 V | 11kW | 23A | |
| VACON0100-3L-0012-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 5,5kW | 12A | |
| VACON0100-3L-0023-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 11kW | 23A | |
| VACON0100-3L-0010-7-FLOW | IP21 | 525 ÷ 690 V | 7,5kW | 10A | |
| VACON0100-3L-0024-2-FLOW | IP21 | 208 ÷ 240 V | 5,5kW | 24A | |
| VACON0100-3L-0013-7-FLOW | IP21 | 525 ÷ 690 V | 11kW | 13.5A | |
| VACON0100-3L-0031-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 15kW | 31A | |
| VACON0100-3L-0016-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 7,5kW | 16A | |
| VACON0100-3L-0024-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 5,5kW | 24A | |
| VACON0100-3L-0010-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 7,5kW | 10A | |
| VACON0100-3L-0034-7-FLOW | IP21 | 525 ÷ 690 V | 30kW | 34A | |
| VACON0100-3L-0027-7-FLOW | IP21 | 525 ÷ 690 V | 22kW | 27A | |
| VACON0100-3L-0013-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 11kW | 13.5A | |
| VACON0100-3L-0027-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 22kW | 27A | |
| VACON0100-3L-0038-5-FLOW | IP21 | 380 ÷ 500 V | 18,5kW | 38A | |
| VACON0100-3L-0011-2-FLOW | IP21 | 208 ÷ 240 V | 2,2kW | 11A | |
| VACON0100-3L-0038-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 18,5kW | 38A | |
| VACON0100-3L-0031-2-FLOW | IP21 | 208 ÷ 240 V | 7,5kW | 31A | |
| VACON0100-3L-0041-7-FLOW | IP21 | 525 ÷ 690 V | 37,5kW | 41A | |
| VACON0100-3L-0016-5-FLOW | IP21 | 380 ÷ 500 V | 7,5kW | 16A | |
| VACON0100-3L-0041-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 37,5kW | 41A | |
| VACON0100-3L-0061-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 30kW | 61A | |
| VACON0100-3L-0031-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 7,5kW | 31A | |
| VACON0100-3L-0062-2-FLOW | IP21 | 208 ÷ 240 V | 15kW | 62A | |
| VACON0100-3L-0046-5-FLOW | IP21 | 380 ÷ 500 V | 22kW | 46A | |
| VACON0100-3L-0062-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 15kW | 62A | |
| VACON0100-3L-0031-5-FLOW | IP21 | 380 ÷ 500 V | 15kW | 31A | |
| VACON0100-3L-0062-7-FLOW | IP21 | 525 ÷ 690 V | 55kW | 62A | |
| VACON0100-3L-0046-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 22kW | 46A | |
| VACON0100-3L-0048-2-FLOW | IP21 | 208 ÷ 240 V | 11kW | 48A | |
| VACON0100-3L-0062-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 55kW | 62A | |
| VACON0100-3L-0072-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 37kW | 72A | |
| VACON0100-3L-0072-5-FLOW | IP21 | 380 ÷ 500 V | 37kW | 72A | |
| VACON0100-3L-0048-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 11kW | 48A | |
| VACON0100-3L-0075-2-FLOW | IP21 | 208 ÷ 240 V | 18,5kW | 75A | |
| VACON0100-3L-0088-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 22kW | 88A | |
| VACON0100-3L-0012-2-FLOW | IP21 | 208 ÷ 240 V | 3kW | 12.5A | |
| VACON0100-3L-0100-7-FLOW | IP21 | 525 ÷ 690 V | 90kW | 100A | |
| VACON0100-3L-0075-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 18,5kW | 75A | |
| VACON0100-3L-0100-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 90kW | 100A | |
| VACON0100-3L-0052-7-FLOW | IP21 | 525 ÷ 690 V | 45kW | 52A | |
| VACON0100-3L-0100-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 90kW | 100A | |
| VACON0100-3L-0080-7-FLOW | IP21 | 525 ÷ 690 V | 75kW | 80A | |
| VACON0100-3L-0105-2-FLOW | IP21 | 208 ÷ 240 V | 30kW | 105A | |
| VACON0100-3L-0052-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 45kW | 52A | |
| VACON0100-3L-0105-2-FLOW+IP54 | IP54 | 208 ÷ 240 V | 30kW | 105A | |
| VACON0100-3L-0080-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 75kW | 80A | |
| VACON0100-3L-0105-5-FLOW | IP21 | 380 ÷ 500 V | 55kW | 105A | |
| VACON0100-3L-0034-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 30kW | 34A | |
| VACON0100-3L-0105-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 55kW | 105A | |
| VACON0100-3L-0080-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 75kW | 80A | |
| VACON0100-3L-0125-7-FLOW | IP21 | 525 ÷ 690 V | 110kW | 125A | |
| VACON0100-3L-0087-5-FLOW | IP21 | 380 ÷ 500 V | 45kW | 87A | |
| VACON0100-3L-0125-7-FLOW+IP00 | IP00 | 525 ÷ 690 V | 110kW | 125A | |
| VACON0100-3L-0061-5-FLOW | IP21 | 380 ÷ 500 V | 30kW | 61A | |
| VACON0100-3L-0125-7-FLOW+IP54 | IP54 | 525 ÷ 690 V | 110kW | 125A | |
| VACON0100-3L-0087-5-FLOW+IP54 | IP54 | 380 ÷ 500 V | 45kW | 87A | |
| VACON0100-3L-0140-2-FLOW | IP21 | 208 ÷ 240 V | 37kW | 140A | |
| VACON0100-3L-0088-2-FLOW | IP21 | 208 ÷ 240 V | 22kW | 88A | |
| VACON0100-3L-0140-2-FLOW+IP00 | IP00 | 208 ÷ 240 V | 37kW | 140A |
