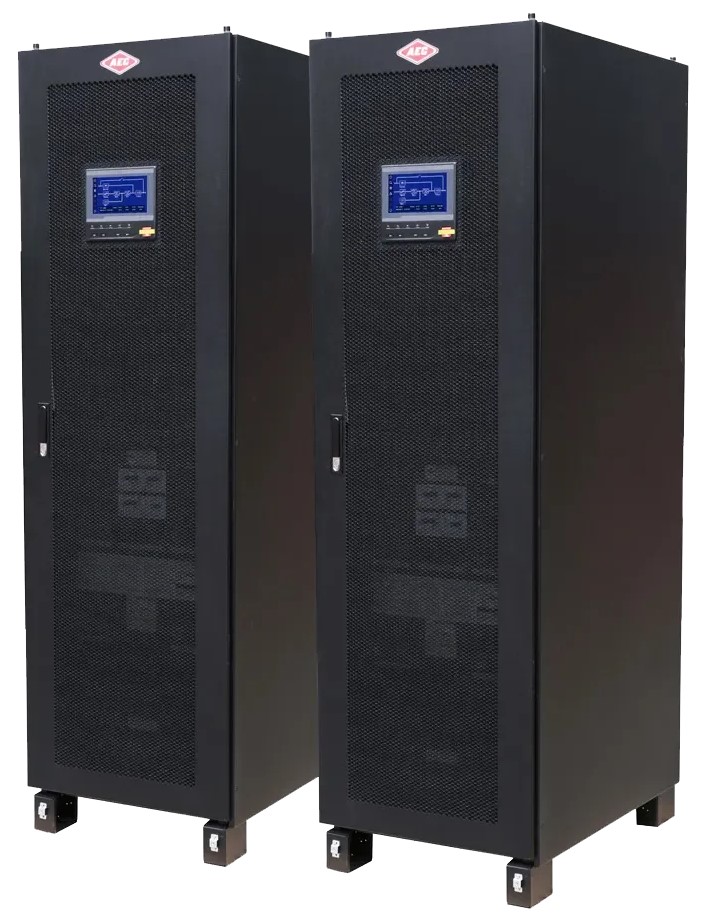

Models
IST6-120 - Power supply modules IST6-30-J,
IST6-200, IST6-300, IST6-600 - Power supply modules IST6-50-J,
IST6-800, IST6-1000, IST6-1200 - Power modules IST6-100-J
Input — Voltage (VAC)
380/400/415
Input — Voltage deviations (VAC)
L:L 138~485
Input — Frequency (Hz)
40-70
Input — Operating voltage (VAC)
–15 % (optional –20 % / –30 %) ~ +15 % (optional +10 % / +20 %)
Input — Power Factor
≥0.99
Entrance — THDI
<5 % (non-linear at full load)
Input — Phases
3+N+PE
Input — Batteries (VDC)
IST6-120, IST6-200, IST6-300, IST6-600: ±192 (adjustable within ±180 ~ ±276)
IST6-800, IST6-1000, IST6-1200: ±240 (adjustable within ±180~ ±276)
Input — Charging current (A)
N×10 maximum (N – number of power modules)
Output — Power (kVA)
IST6-120: 120
IST6-200, IST6-300: : 300
IST6-600: 600
IST6-800: 800
IST6-1000: 1000
IST6-1200: 1200
Output — Power Factor
1
Output — Phases
3+N+PE
Output — Waveform
Sinusoidal
Output — Voltage (VAC)
LL:380,400,415 ±1%
Output — Frequency (Hz)
50/60± 0.2%
Output — Difference between 3 phases
≤2 degrees
Output — THD
≤1 % (linear loads at full load), ≤4 % (non-linear loads at full load)
Output — Max system efficiency
above 97%
Exit – Parallel
N+1 redundancy
Exit — Overload
105–115 % overload – up to 60 min., 116–130 % overload – up to 10 min.,
131–150 % overload – up to 1 min., more than 150 % – the load is switched to bypass.
Temperature (°C)
0~40
Humidity
0 ~ 95 %
Communication
RS485, MODBUS, free contact card (optional SNMP)
Noise (DB)
IST6-120: <65
IST6-200, IST6-300, IST6-600, IST6-800, IST6-1000, IST6-1200: <70
Power module (kVA)
IST6-30-J: 30
IST6-50-J: 50
IST6-100-J: 100
Power module weight (kg)
IST6-30-J: 32
IST6-50-J: 33
IST6-100-J: 33
Dimensions (L×W×H) (mm)
IST6-120, IST6-200, IST6-300: 600×860×2000
IST6-600: 1200×860×2000
IST6-800: 1400*1000*2000
IST6-1000, IST6-1200: 1800*1000*2000
Weight (KG)
IST6-120: UPS: 180, Ritual module: 17
IST6-200, IST6-300UPS: 224, Ritual Module: 25
IST6-600UPS: 427, Ritual Module: 27
Power module 30/50kW: 27/33
IST6-800: UPS: 580, Ritual module: 60
IST6-1000: UPS: 650, Ritual module: 80
IST6-1200: UPS: 740, Ritual module: 80
Power module 100kW: 55
Standards and certificates
CE (reference standards: safety IEC EN 62040-1; EMC IEC EN 62040-2; classification IEC EN 62040-3)
