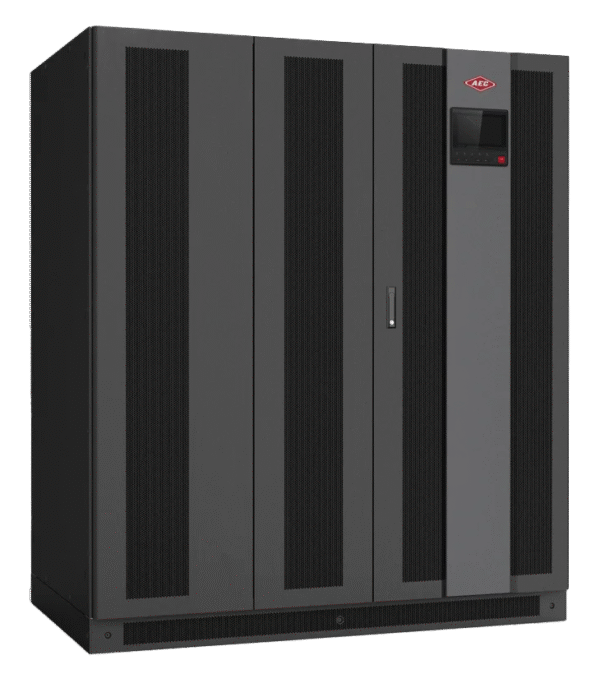

Models
IST7T-80, IST7T-100, IST7T-120, IST7T-160, IST7T-200, IST7T-250, IST7T-300, IST7T-400, IST7T-500, IST7T-600
Input — Voltage (VAC)
380/400/415
Input — Frequency (Hz)
40-70
Input — Power Factor
≥0.99
Entrance — THDI
<5 % (non-linear at full load)
Input — Phases
3+N+PE
Output — Power (kVA)
IST7T-80: 80, IST7T-100: 100, IST7T-120: 120, IST7T-160: 160, IST7T-200: 200, IST7T-250: 250, IST7T-300: 300, IST7T-400: 400, IST7T-500: 500, IST7T-600: 600
Output — Frequency (HZ)
50/60± 0.2%
Output — Power Factor
0.9 (1.0 optional)
Difference between 3 phases
≤2 %, 100 % unbalance allowed
Output — Waveform
Sinusoidal
Output — Voltage (VAC)
LL:380,400,415 ±1%
Output — THD
IST7T-80, IST7T-100, IST7T-120, IST7T-160: THD <2% (linear load)
IST7T-200,. IST7T-250, IST7T-300, IST7T-400. IST7T-500, IST7T-600: ≤1 % (linear loads at full load), ≤4 % (non-linear loads at full load)
Output — Max system efficiency
94 %
Exit – Parallel
Up to 8 units
Exit — Overload
125 % load for 10 min., 150 % load for 1 min.
Temperature (°C)
0~40
Humidity
0 ~ 95 %
Communication
RS485, MODBUS, free contact card (SNMP – optional)
Noise
IST7T-80, IST7T-100, IST7T-120, IST7T-160: <65 (dB)
IST7T-200,. IST7T-250, IST7T-300, IST7T-400. IST7T-500, IST7T-600: <70 (dB)
Dimensions (L×W×H) (mm)
IST7T-80: 500x800x1600
IST7T-100, IST7T-120, IST7T-160: 700×800×1800
IST7T-200, IST7T-250: 1400x1000x1850
IST7T-300, IST7T-400: 1600×1000×1850
IST7T-500, IST7T-600: 3000×1000×1850
Weight (KG)
IST7T-80: 520, IST7T-100: 600, IST7T-120: 650, IST7T-160: 825, IST7T-200: 1280, IST7T-250: 1568, IST7T-300: 1830, IST7T-400: 2050, IST7T-500, IST7T-600: 4500
Standards and certificates
CE (reference standards: safety IEC EN 62040-1; EMC IEC EN 62040-2; classification IEC EN 62040-3)
