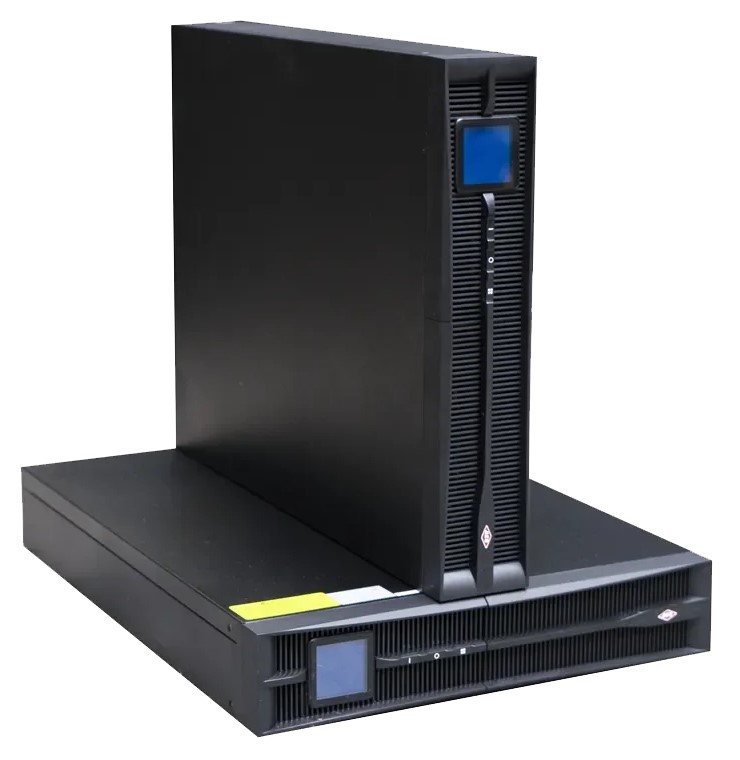

AEC UPS with lithium batteries | IST8 | 1-3 kVA

SPECIFICATIONS

• Models

  IST8-1-LI, IST8-2-LI, IST8-3-LI

• Input — Voltage (VAC)

  120 - 295

• Input — Frequency (Hz)

  50/60± 10% (50/60Hz)

• Input — Power Factor

  ≥0.99

• Entrance — THDI

  <5 %

• Output — Power (kVA)

  IST8-1-LI: 1000/1000
  IST8-2-LI: 2000/2000
  IST8-3-LI: 3000/3000

• Output — Max AC/AC performance

  IST8-1-LI: 92.7 %
  IST8-2-LI: 93.5 %
  IST8-3-LI: 96 %

• Output — Power Factor

  1

• Output — Voltage (VAC)

  208/220/230/240±1%

• Output — Frequency (Hz)

  50/60 ±0.1 (Hz)

• Output — THD

  <3 %

• Output — Switching time (ms)

  0 (ms)

• Exit — Eco mode

  Yes

• Exit — Overload

  101 %~115 % 1 min., 116 %~133 % 1 s, <134 % 200 ms

• Lithium batteries - Voltage

  IST8-1-LI: 24 (VDC)
  IST8-2-LI: 48 (VDC)
  IST8-3-LI: 72 (VDC)

• Lithium batteries - Operating time

  11 (minutes)

• Lithium batteries - Max. charging current

  4 (A)

• Communication

  USB and SNMP (socket) (RS232 + optional dry contact card)

• Outlets

  IST8-1-LI: (8) 5-15R
  IST8-2-LI: (6) 5-20R
  IST8-3-LI: (4) 5-20R + (1) L5-30R

• Display

  LCD

• Protection

  Low charge, overload, short circuit, overheating, etc.

• Noise

  <55 (dB)

• Temperature

  0°C~60°C

• Humidity

  0 ~ 95 %

• Dimensions

  IST8-1-LI: 438×420×87 (W×D×H) (mm)
  IST8-2-LI: 438×570×87 (W×D×H) (mm)
  IST8-3-L: 438×570×87 (W×D×H) (mm)

• Weight

  IST8-1-LI: 8.9 (kg)
  IST8-2-LI: 13.6 (kg)
  IST8-3-L: 19.6 (kg)

• Standards and certificates

  CE (reference standards: safety IEC EN 62040-1; EMC IEC EN 62040-2; classification IEC EN 62040-3)
