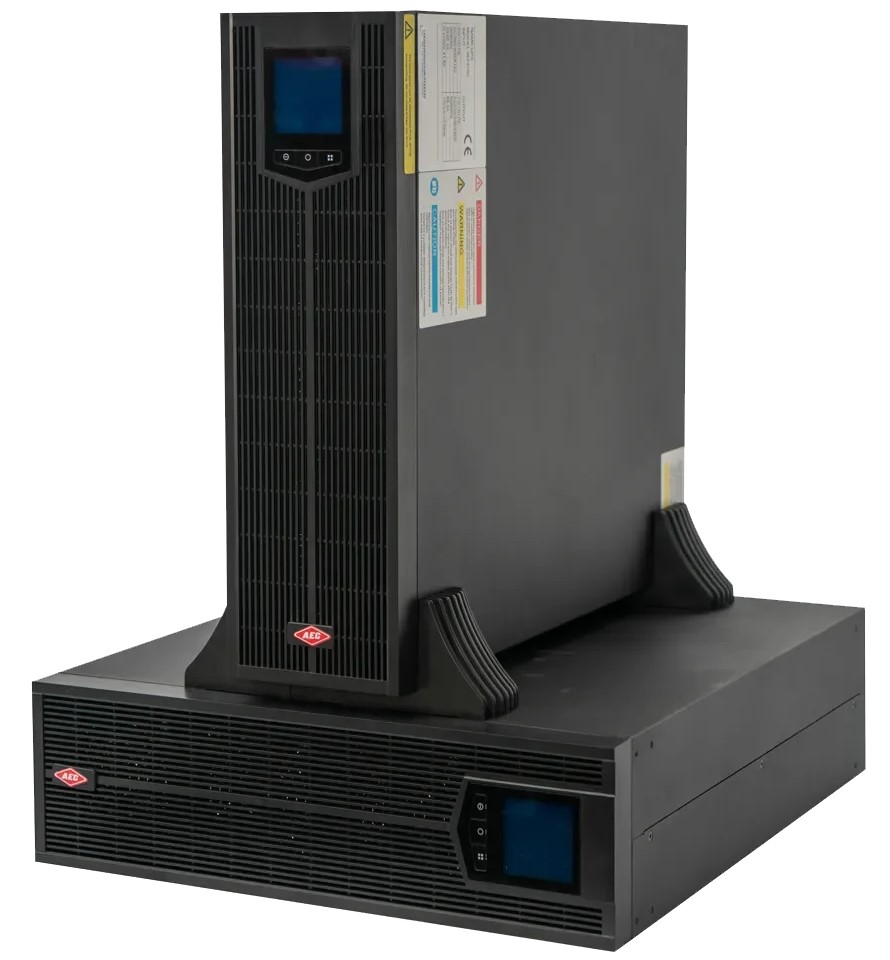

Uninterruptible power supplies for 19″ rack IST9 (10–20 kVA) is AEC’s three-phase rack-mounted on-line UPS series from 10 kVA to 20 kVA. The IST9 series uses the latest 3-level IGBT technology, ensuring up to 97 % efficiency and unity output power factor.

IST9 can be configured with input/output modes 1 | 1, 3 | 1 or 3 | 3 directly from the screen. Compact 19″ rack-mountable UPS, only 3U high in a rack cabinet. The system includes a distribution module and manual bypass disconnection for convenient maintenance.

UPS 10-20 kVA for racks, data centers and IT

  • 19″ rack-mountable UPS with 3-level IGBT technology;
  • High flexibility, advanced technology and space saving;
  • Flexible configuration 1:1, 3:1, 3:3 set from the screen;
  • UPS for rack cabinets with 97 % efficiency;
  • Max. 10 A charging current and high AC/AC efficiency up to 97 %;
  • Output power factor up to 1 and THDi <3 %, less energy pollution;
  • UPS can be connected in parallel up to 4 units, supports up to 80 kVA single-phase or three-phase load;
  • Smart RS485 + EPO and ECO mode, locally configurable;
  • Easy to transport and install;
  • The UPS is suitable for both tower and rack installations;
  • The number of batteries (24–40) and charging current are adjustable.
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Models

    IST9-10, IST9-15, IST9-20

  • Input — Voltage (VAC)

    80-280 (L-N) or 138-485 (L-L)

  • Input — Frequency (Hz)

    40–70

  • Input — Power Factor

    ≥0.99

  • Entrance — THDI

    <3 %

  • Output — Power (kVA)

    IST9-10:10
    IST9-15:15
    IST9-20:20

  • Output — Max AC/AC performance

    97 %

  • Output — Power Factor

    1

  • Output — Voltage (VAC)

    220/230/240±1 % (L–N) • 380/400/415±1 % (L–L) (configurable)

  • Output — Frequency (Hz)

    50/60 ±0.1 (Hz)

  • Output — THD

    <2 % (linear loads), <4 % (non-linear loads)

  • Output — Switching time (ms)

    0 (ms)

  • Exit — Eco mode

    Yes

  • Exit — Overload

    115–130 % 15 min • 130–150 % 1 min • >150 % 200 ms

  • Batteries — Voltage (VDC)

    ±192 (±14×→±240 configurable)

  • Batteries — Max charging current (A)

    4 (1-10 configurable)

  • Connections

    RS485 + EPO (RS232 + dry contact card, SNMP optional)

  • Display

    LCD

  • Warnings

    Low batteries, abnormal input, overload, lock/fault, etc.

  • Protection

    Weak batteries, overload, short circuit, overheating, etc.

  • Noise

    <55 (dB)

  • Temperature (°C)

    -5 – 40

  • Humidity

    0 ~ 95 %

  • Dimensions (L×W×H) mm

    UPS - 438×500×130 (3U)
    Distribution box - 438×500×130 (3U)

  • Weight (kg)

    UPS - 20
    Distribution box - 8

  • Standards and certificates

    CE (Safety IEC EN 62040-1; EMC IEC EN 62040-2; Classification IEC EN 62040-3)

AVAILABLE MODELS

Product code Description Price
IST9-10
IST9-10-24X9
IST9-10-32X9
IST9-10-64X9
IST9-10-96X9
IST9-10-128X9
IST9-10-160X9
IST9-15
IST9-15-24X9
IST9-15-32X9
IST9-15-64X9
IST9-15-96X9
IST9-15-128X9
IST9-15-160X9
IST9-20

UPS on-line rack 1:1 3:1 3:3 IST9 20 kVA only with external batteries | 500(L)×438(W)×130(H)(3U) mm | 22 kg

Power distribution box with maintenance switch | 500(W)×438(D)×130(H)(3U) mm | 22 kg
IST9-20-32X9

UPS on-line rack 1:1 3:1 3:3 IST9 20 kVA only with external batteries | 500(L)×438(W)×130(H)(3U) mm | 22 kg

Power distribution box with maintenance switch | 500(W)×438(D)×130(H)(3U) mm | 12 kg

2× battery cabinet rack BBJ2 with a total of 32 × 12V 9Ah batteries | 2× 500(W)×438(D)×130(H)(3U) mm | 100 kg
IST9-20-64X9

UPS on-line rack 1:1 3:1 3:3 IST9 20 kVA only with external batteries | 500(L)×438(W)×130(H)(3U) mm | 22 kg

Power distribution box with maintenance switch | 500(W)×438(D)×130(H)(3U) mm | 12 kg

4× battery cabinet rack BBJ2 with a total of 64 × 12V 9Ah batteries | 4× 500(W)×438(D)×130(H)(3U) mm | 200 kg
IST9-20-96X9

UPS on-line rack 1:1 3:1 3:3 IST9 20 kVA only with external batteries | 500(L)×438(W)×130(H)(3U) mm | 22 kg

Power distribution box with maintenance switch | 500(W)×438(D)×130(H)(3U) mm | 12 kg

6× battery cabinet rack BBJ2 with a total of 96 × 12V 9Ah batteries | 6× 500(W)×438(D)×130(H)(3U) mm | 300 kg
IST9-20-128X9

UPS on-line rack 1:1 3:1 3:3 IST9 20 kVA only with external batteries | 500(L)×438(W)×130(H)(3U) mm | 22 kg

Power distribution box with maintenance switch | 500(W)×438(D)×130(H)(3U) mm | 12 kg

8× battery cabinet rack BBJ2 with a total of 128 × 12V 9Ah batteries | 8× 500(W)×438(D)×130(H)(3U) mm | 400 kg
IST9-20-160X9

UPS on-line rack 1:1 3:1 3:3 IST9 20 kVA only with external batteries | 500(L)×438(W)×130(H)(3U) mm | 22 kg

Power distribution box with maintenance switch | 500(W)×438(D)×130(H)(3U) mm | 12 kg

10× battery cabinet rack BBJ2 with a total of 160 × 12V 9Ah batteries | 10× 500(W)×438(D)×130(H)(3U) mm | 500 kg
BBJ2

Battery cabinet rack, maximum 16 × 12V 9Ah | 500(L)×438(W)×3U(H) mm | 10 kg
RLKT

Rail set, max. 50 kg
DRYCNT-IST3/9

Free contact relay board
SNMP

Internal SNMP board
PAR-IST9

Parallel plate for IST9

DOCUMENTS

  • IST9 – Technical specifications

    113.77 KB

    Download

  • Instruction - UPS IST9-1

    4.7 MB

    Download

  • Catalog - UPS on-line three-phase rack IST9-1

    1.88 MB

    Download
