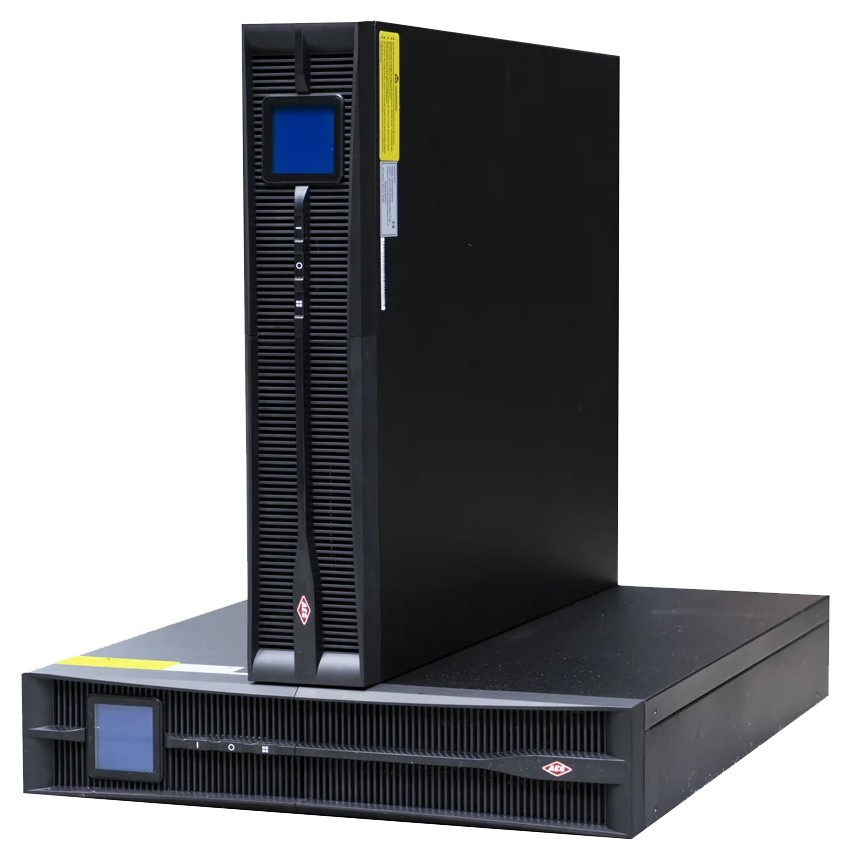

Stelažinis on-line UPS | IST3-J

SPECIFICATIONS
AVAILABLE MODELS
DOCUMENTS

SPECIFICATIONS

Models
IST3J-1-3X9 IST3J-1, IST3J-2-4X9 IST3J-2, IST3J-3-6X9 IST3J-3, IST3J-6-16X9 IST3J-6, IST3J-10-16X9 IST3J-10
Input — Voltage (VAC)
IST3J-1-3X9 IST3J-1, IST3J-2-4X9 IST3J-2, IST3J-3-6X9 IST3J-3: 120-295

IST3J-6-16X9 IST3J-6, IST3J-10-16X9 IST3J-10: 80-275
Input — Frequency (Hz)
50/60 Hz ±10 % (automatic 50/60 Hz frequency adjustment)
Input — Power Factor
≥0.99
Entrance — THDI
<5 %
Output — Power (kVA)
IST3J-1-3X9 IST3J-1: 1000
IST3J-2-4X9 IST3J-2: 2000
IST3J-3-6X9 IST3J-3: 3000
IST3J-6-16X9 IST3J-6: 6000
IST3J-10-16X9 IST3J-10: 10000
Output — Max AC/AC performance
IST3J-1-3X9 IST3J-1: 92%
IST3J-2-4X9 IST3J-2: 92.5%
IST3J-3-6X9 IST3J-3: 93.3%
IST3J-6-16X9 IST3J-6: 96%
IST3J-10-16X9 IST3J-10: 96%
Output — Power Factor
1
Output — Voltage (VAC)
208/220/230/240 V ±1 % (configurable via display)
Output — Frequency (Hz)
50/60 Hz ±0.2 % (battery mode)
Output — THD
IST3J-1-3X9 IST3J-1, IST3J-2-4X9 IST3J-2, IST3J-3-6X9 IST3J-3:
THD < 2 % (linear load)
THD < 5 % (non-linear load)

IST3J-6-16X9 IST3J-6, IST3J-10-16X9 IST3J-10:
THD < 1 % (linear load)
THD < 4 % (non-linear load)
Output — Switching time (ms)
0 (ms)
Batteries - Voltage (VDC)
IST3J-1-3X9 IST3J-1: 36
IST3J-2-4X9 IST3J-2: 40
IST3J-3-6X9 IST3J-3: 72
IST3J-6-16X9 IST3J-6: 192-240
IST3J-10-16X9 IST3J-10: 192-240
Weight (kg)
IST3J-1-3X9 IST3J-1: 11
IST3J-2-4X9 IST3J-2: 19
IST3J-3-6X9 IST3J-3: 24.8
IST3J-6-16X9 IST3J-6: 10.6+45/10.6
IST3J-10-16X9 IST3J-10: 12.2+45/12.2
Batteries - Max. charging current
IST3J-1-3X9 IST3J-1, IST3J-2-4X9 IST3J-2, IST3J-3-6X9 IST3J-3: 1-4

IST3J-6-16X9 IST3J-6, IST3J-10-16X9 IST3J-10: 1/1~8 (Configurable)
Communication
RS232 + EPO + USB (socket)
(SNMP, RS485 + optional dry contact card)
LCD Screen
Input/output voltage and frequency, load level protection, battery charge status, temperature, UPS operation and lockout/error
Alarms
Low batteries, abnormal input, overload, jam/failure, etc.
Protection
Low charge, overload, short circuit, overheating, etc.
Noise (dB)
IST3J-1-3X9 IST3J-1, IST3J-2-4X9 IST3J-2: <50

IST3J-3-6X9 IST3J-3, IST3J-6-16X9 IST3J-6, IST3J-10-16X9 IST3J-10: <55
Temperature (°C)
-5~40
Humidity
0 ~ 95 %
Dimensions (L×W×H) (mm)
IST3J-1-3X9 IST3J-1: 438×413×2U

IST3J-2-4X9 IST3J-2, IST3J-3-6X9 IST3J-3: 438×570×2U

IST3J-6-16X9 IST3J-6, IST3J-10-16X9 IST3J-10: 438 × 500 × 2U (UPS) + 438 × 500 × 3U (battery pack)
Standards and certificates
CE (reference standards: safety IEC EN 62040-1; EMC IEC EN 62040-2; classification IEC EN 62040-3)

AVAILABLE MODELS

Show

Product code	Description	Price
IST3J-1-3X9	Rack-mounted UPS (on-line) IST3J 1kVA with internal batteries 3×12V 9ah \| 413(I)×438(P)×2U(H) mm \| 15 kg
IST3J-1-6X9	Rack-mounted UPS (on-line) IST3J 1kVA with internal batteries 3×12V 9ah \| 413(I)×438(P)×2U(H) mm \| 15 kg Battery cabinet rack BBJ with 3×12V 9Ah batteries \| 413(W)×438(D)×2U(H) mm \| 14 kg
IST3J-1-9X9	Rack-mounted UPS (on-line) IST3J 1kVA with internal batteries 3×12V 9ah \| 413(I)×438(P)×2U(H) mm \| 15 kg Battery cabinet rack BBJ with 6×12V 9ah batteries \| 413(W)×438(D)×2U(H) mm \| 21 kg
IST3J-1-12X9	Rack-mounted UPS (on-line) IST3J 1kVA without internal batteries \| 413(I)×438(W)×2U(H) mm \| 7 kg 2x Battery cabinet rack BBJ with 12×12V 9ah batteries \| 2X 413(L)×438(W)×2U(H) mm \| 42 kg
IST3J-1-15X9	Rack-mounted UPS (on-line) IST3J 1kVA with internal batteries 3×12V 9ah \| 413(I)×438(P)×2U(H) mm \| 15 kg 2x Battery cabinet rack BBJ with 12×12V 9ah batteries \| 2X 413(L)×438(W)×2U(H) mm \| 36 kg
IST3J-2-4X9	Rack-mounted UPS (on-line) IST3J 2kVA with internal batteries 4×12V 9ah \| 570(W)×438(D)×87 (2U)(H) mm \| 21 kg
IST3J-2-8X9	Rack-mounted UPS (on-line) IST3J 2kVA with internal batteries 4×12V 9ah \| 570(W)×438(D)×87 (2U)(H) mm \| 21 kg Battery cabinet rack BBJ with 4×12V 9ah batteries \| 413(W)×438(D)×2U(H) mm \| 16 kg
IST3J-2-12X9	Rack-mounted UPS (on-line) IST3J 2kVA with internal batteries 4×12V 9ah \| 570(W)×438(D)×87 (2U)(H) mm \| 21 kg Battery cabinet rack BBJ with 8×12V 9ah batteries \| 413(W)×438(D)×2U(H) mm \| 26 kg
IST3J-2-16X9	Rack-mounted UPS (on-line) IST3J 2kVA with internal batteries 4×12V 9ah \| 570(W)×438(D)×87 (2U)(H) mm \| 21 kg 2x Battery cabinet rack BBJ with 12×12V 9ah batteries \| 2X 413(L)×438(W)×2U(H) mm \| 42 kg
IST3J-2-20X9	Rack-mounted UPS (on-line) IST3J 2kVA with internal batteries 4×12V 9ah \| 570(W)×438(D)×87 (2U)(H) mm \| 21 kg 2x Battery cabinet rack BBJ with 16×12V 9ah batteries \| 2X 413(L)×438(W)×2U(H) mm \| 52 kg
IST3J-2-24X9	Rack-mounted UPS (on-line) IST3J 2kVA without internal batteries \| 570(W)×439(D)×87 (2U)(H) mm \| 11 kg 3x Battery cabinet rack BBJ with 24×12V 9ah batteries \| 3X 413(L)×438(W)×2U(H) mm \| 78 kg
IST3J-3-6X9	Rack-mounted UPS (on-line) IST3J 3kVA with internal batteries 6×12V 9ah \| 570(W)×438(D)×87 (2U)(H) mm \| 27 kg
IST3J-3-12X9	Rack-mounted UPS (on-line) IST3J 3kVA with internal batteries 6×12V 9ah \| 570(W)×438(D)×87 (2U)(H) mm \| 27 kg Battery cabinet rack BBJ with 6×12V 9ah batteries \| 413(W)×438(D)×2U(H) mm \| 21 kg
IST3J-3-18X9	Rack-mounted UPS (on-line) IST3J 3kVA with internal batteries 6×12V 9ah \| 570(W)×438(D)×87 (2U)(H) mm \| 27 kg 2x Battery cabinet rack BBJ with 12×12V 9ah batteries \| 2X 413(L)×438(W)×2U(H) mm \| 42 kg
IST3J-3-24X9	Rack-mounted UPS (on-line) IST3J 3kVA with internal batteries 6×12V 9ah \| 570(W)×438(D)×87 (2U)(H) mm \| 27 kg 3x Battery cabinet rack BBJ with 18 × 12 V 9 Ah batteries \| 3X 413(W)×438(D)×2U(H) mm \| 63 kg
IST3J-3-30X9	Rack-mounted UPS (on-line) IST3J 3kVA with internal batteries 6 × 12 V 9 Ah \| 570(W)×438(D)×87 (2U)(H) mm \| 27 kg 4x Battery cabinet rack BBJ2 with 24×12V 9ah batteries \| 4X 413(L)×438(W)×2U(H) mm \| 85 kg
IST3J-6	Rack-mounted UPS (on-line) IST3J 6kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 11 kg
IST3J-6-16X9	Rack-mounted UPS (on-line) IST3J 6kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 11 kg Battery cabinet rack BBJ2 with 16×12V 9ah batteries \| 500(L)×438(W)×3U(H) mm \| 50 kg
IST3J-6-32X9	Rack-mounted UPS (on-line) IST3J 6kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 11 kg 2x Battery cabinet rack BBJ2 with 32×12V 9ah batteries \| 2X 500(W)×438(D)×3U(H) mm \| 100 kg
IST3J-6-48X9	Rack-mounted UPS (on-line) IST3J 6kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 11 kg 3x Battery cabinet rack BBJ2 with 48×12V 9ah batteries \| 3X 500(W)×438(D)×3U(H) mm \| 150 kg
IST3J-6-64X9	Rack-mounted UPS (on-line) IST3J 6kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 11 kg 4x Battery cabinet rack BBJ2 with 64×12V 9ah batteries \| 4X 500(W)×438(D)×3U(H) mm \| 200 kg
IST3J-6-80X9	Rack-mounted UPS (on-line) IST3J 6kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 11 kg 5x Battery cabinet rack BBJ2 with 80×12V 9ah batteries \| 5X 500(L)×438(W)×3U(H) mm \| 250 kg
IST3J-6-96X9	Rack-mounted UPS (on-line) IST3J 6kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 11 kg 6x Battery cabinet rack BBJ2 with 96×12V 9ah batteries \| 6X 500(W)×438(D)×3U(H) mm \| 300 kg
IST3J-6-112X9	Rack-mounted UPS (on-line) IST3J 6kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 11 kg 7x Battery cabinet rack BBJ2 with 112×12V 9ah batteries \| 7X 500(L)×438(W)×3U(H) mm \| 350 kg
IST3J-6-128X9	Rack-mounted UPS (on-line) IST3J 6kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 11 kg 8x Battery cabinet rack BBJ2 with 128×12V 9ah batteries \| 8X 500(W)×438(D)×3U(H) mm \| 400 kg
IST3J-10	Rack-mounted UPS (on-line) IST3J 10kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 13 kg
IST3J-10-16X9	Rack-mounted UPS (on-line) IST3J 10kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 13 kg Battery cabinet rack BBJ2 with 16×12V 9ah batteries \| 500(L)×438(W)×3U(H) mm \| 50 kg
IST3J-10-32X9	Rack-mounted UPS (on-line) IST3J 10kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 13 kg 2X Battery cabinet rack BBJ2 with 32×12V 9ah batteries \| 2X 500(W)×438(D)×3U(H) mm \| 100 kg
IST3J-10-48X9	Rack-mounted UPS (on-line) IST3J 10kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 13 kg 3X Battery cabinet rack BBJ2 with 48×12V 9ah batteries \| 3X 500(W)×438(D)×3U(H) mm \| 150 kg
IST3J-10-64X9	Rack-mounted UPS (on-line) IST3J 10kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 13 kg 4X Battery cabinet rack BBJ2 with 64×12V 9ah batteries \| 4X 500(W)×438(D)×3U(H) mm \| 200 kg
IST3J-10-80X9	Rack-mounted UPS (on-line) IST3J 10kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 13 kg 5X Battery cabinet rack BBJ2 with 80×12V 9ah batteries \| 5X 500(L)×438(W)×3U(H) mm \| 250 kg
IST3J-10-96X9	Rack-mounted UPS (on-line) IST3J 10kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 13 kg 6X Battery cabinet rack BBJ2 with 96×12V 9ah batteries \| 6X 500(W)×438(D)×3U(H) mm \| 300 kg
IST3J-10-112X9	Rack-mounted UPS (on-line) IST3J 10kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 13 kg 7X Battery cabinet rack BBJ2 with 112×12V 9ah batteries \| 7X 500(L)×438(W)×3U(H) mm \| 350 kg
IST3J-10-128X9	Rack-mounted UPS (on-line) IST3J 10kVA external batteries only \| 500(L)×438(W)×2U(H) mm \| 13 kg 8X Battery cabinet rack BBJ2 with 128×12V 9ah batteries \| 8X 500(W)×438(D)×3U(H) mm \| 400 kg
BBJ	Battery cabinet rack BBJ maximum 8×12V 9ah \| 413(I)×438(P)×3U(H) mm \| 6 kg
IST3-J	Battery cabinet rack BBJ maximum 16×12V 9ah \| 500(L)×438(W)×3U(H) mm \| 10 kg
IST3-J	Rail set, max. 50 kg
IST3-J	Free contact relay board
IST3-J	Internal SNMP board
MBYP-3K	External manual maintenance bypass (rack-mounted version), up to 3kVA
MBYP-6K	External manual maintenance bypass (rack-mounted version), up to 10kVA
PAR-IST3	Paralleling plate for 6-10 kVA

DOCUMENTS

IST3J - Technical specifications
96.18 KB
Download
Instruction - UPS IST3J 3kVA-1
5.08 MB
Download
Instruction - UPS IST3J 10kVA-2
1.75MB
Download
Catalog - ChatGPT said: UPS on-line single-phase rack IST3J
1.81 MB
Download
