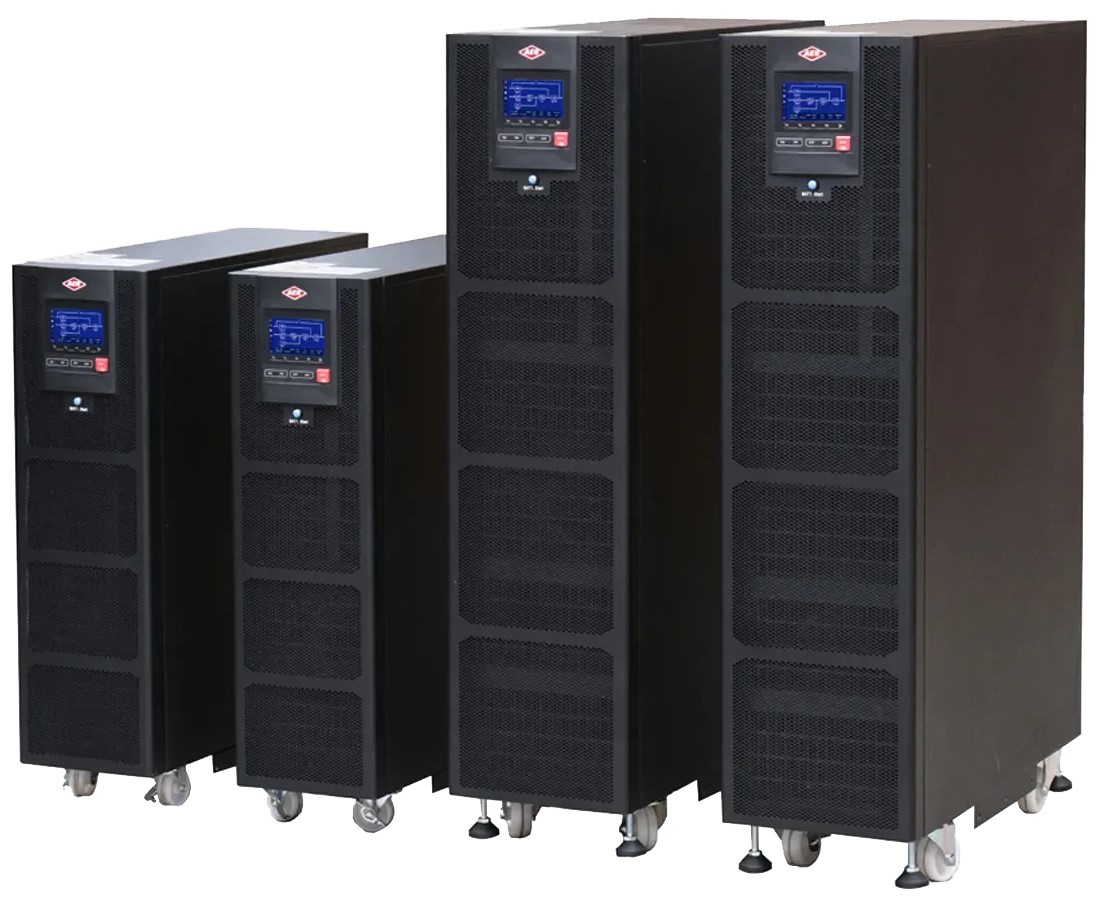

Models
IST7-10-32X9 IST7-10, IST7-20-36X9 IST7-20, IST7-30-72X9 IST7-30, IST7-40-72X9 IST7-40
Input — Voltage (VAC)
80-280 (LN) / 138-485 (LL)
Input — Frequency (Hz)
40~70
Input — Power Factor
≥0.99
Entrance — THDI
<3 %
Input — Phases
IST7-10-32X9 IST7-10, IST7-20-36X9 IST7-20: 3:3 / 3:1 / 1:1
IST7-30-72X9 IST7-30, IST7-40-72X9 IST7-40: 3:3 / 3:1
Output — Power (kVA)
IST7-10-32X9 IST7-10: 10
IST7-20-36X9 IST7-20: 20
IST7-30-72X9 IST7-30: 30
IST7-40-72X9 IST7-40: 40
Output — Power Factor
1
Output — Voltage (VAC)
LN: 220/230/240±1% LL: 380/400/415±1%
Output — Frequency (Hz)
50/60 ±0.1
Output — THD
THD <1% (linear load)
THD <3% (non-linear load)
Output — Waveform
Pure sine wave, THD <1% for linear load
Output — Efficiency
97%
Exit — Overload
110 % overload – 60 min.; 130 % overload – 10 min.;
155 % overload – 1 min.; >155 % overload – 200 ms.
Battery voltage (VCC)
IST7-10-32X9 IST7-10: ±96~±240 configurable
IST7-20-36X9 IST7-20: ±144~±240 configurable
IST7-30-72X9 IST7-30: ±144~±240 configurable
IST7-40-72X9 IST7-40: ±144~±240 configurable
Battery Configurations Standard
IST7-10-32X9 IST7-10: 32*9AH/12V
IST7-20-36X9 IST7-20: 36*9AH/12V
IST7-30-72X9 IST7-30: 72*9AH/12V
IST7-40-72X9 IST7-40: 72*9AH/12V

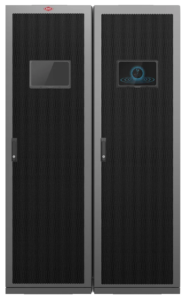

Lithium batteries - Max. charging current
IST7-10-32X9 IST7-10, IST7-20-36X9 IST7-20: 1-10 (configurable)
IST7-30-72X9 IST7-30., IST7-40-72X9 IST7-40: 1-20 (configurable)
Communication
RS485, MODBUS, free contact card (RS232 and SNMP - optional)
Display
Touch screen + LED
Alarms
Low batteries, abnormal input, overload, jam/failure, etc.
Protection
Low charge, overload, short circuit, overheating, etc.
Noise
<55 (dB)
Temperature (°C)
-5~40
Humidity
0 ~ 95 %
Dimensions (L×W×H) (mm)
IST7-10-32X9 IST7-10, IST7-20-36X9 IST7-20: 250×755x880
IST7-30-72X9 IST7-30., IST7-40-72X9 IST7-40: 300x785x1250
Weight
IST7-10-32X9 IST7-10: 132 with batteries - 50 without
IST7-20-36X9 IST7-20: 140 with batteries - 50 without
IST7-30-72X9 IST7-30: 270 with batteries - 85 without
Standards and certificates
CE (reference standards: safety IEC EN 62040-1; EMC IEC EN 62040-2; classification IEC EN 62040-3)
