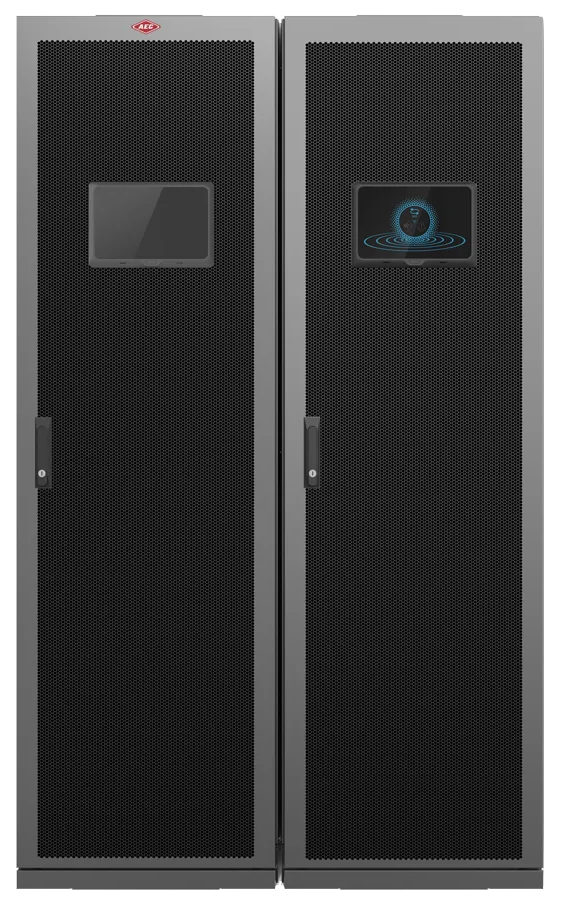

AEC modular lithium-ion battery system LFP

SPECIFICATIONS

• Battery

  ‎

• Type

  LFP (40Ah, 50Ah, 100Ah)

• Dimensions (mm)

  27.0×148.5×133.0 (40Ah/50Ah), 50.5×160.3×120.0 (100Ah)

• Nominal capacity (Ah)

  40, 50, 100

• Discharge rate (C)

  6 (40Ah), 4 (50Ah), 1 (100Ah)

• Charging speed (C)

  1 (40Ah), 1 (50Ah), 0.5 (100Ah)

• Rated voltage (V)

  3.2 (40Ah, 50Ah, 100Ah)

• Number of cycles

  5,000 cycles (at 50 % DOD) (40Ah, 50Ah, 100Ah)

• Battery module

  ‎

• Battery nominal voltage (V)

  57.6 (S3M040-6C-240-X, S3M050-4C-240-X, S3M100-1C-240-X)

• Battery capacity (Ah)

  40 (S3M040-6C-240-X), 50 (S3M050-4C-240-X), 100 (S3M100-1C-240-X)

• Max. energy (kWh)

  2.3 (S3M040-6C-240-X), 2.7 (S3M050-4C-240-X), 5.7 (S3M100-1C-240-X)

• DC/DC nominal output voltage (V)

  240×2 (serial or parallel)

• DC/DC rated output power (kW)

  10 (S3M040-6C-240-X, S3M050-4C-240-X), 5 (S3M100-1C-240-X)

• Battery cabinet

  ‎

• Max. battery energy (kWh)

  46 (S3C040-6C-20-MX), 58 (S3C050-4C-20-MX), 69 (S3C100-1C-10-MX)

• Rated output voltage (V)

  240 / ±240 / 480 (depending on model)

• System nominal output power (kW)

  200 (S3C040-6C-20-MX, S3C050-4C-20-MX), 60 (S3C100-1C-10-MX)

• Number of battery modules

  20 (S3C040-6C-20-MX, S3C050-4C-20-MX), 12 (S3C100-1C-10-MX)

• Current imbalance

  ≤ 5 %

• SOC accuracy (state of charge)

  ≥ 95 %

• Communication

  RS485, CAN, TCP/IP and dry contacts

• Operating temperature (°C)

  0–40 (+15–+30 recommended)

• Altitude above sea level (m)

  0–4000; power reduction applies above 2000 m

• Dimensions (w×d×h) (mm)

  600×860×2000

• Weight (kg)

  960 ± 10 (S3C040-6C-20-MX), 1000 ± 10 (S3C050-4C-20-MX), 860 ± 10 (S3C100-1C-10-MX)

• Max. number of parallel cabinets

  8

• Optional equipment

  Distribution cabinet, fire protection cabinet, IT backplane

• Self-slip

  ≤ 3 % (0-30 °C / within 1 month)

• model

  L6, L6-20X50, L6-10X100, L6-40, L6-50, L6-100
