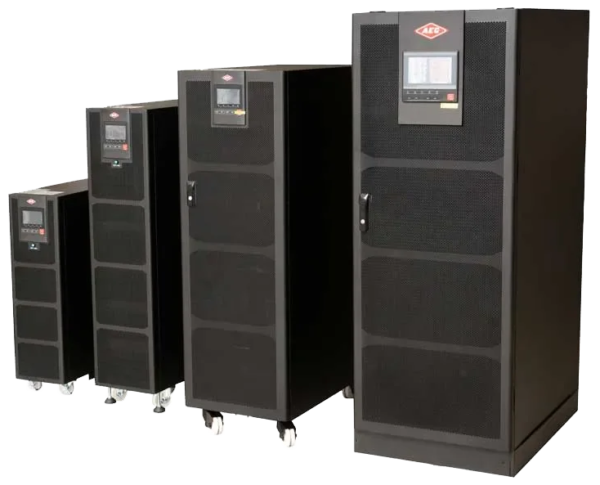

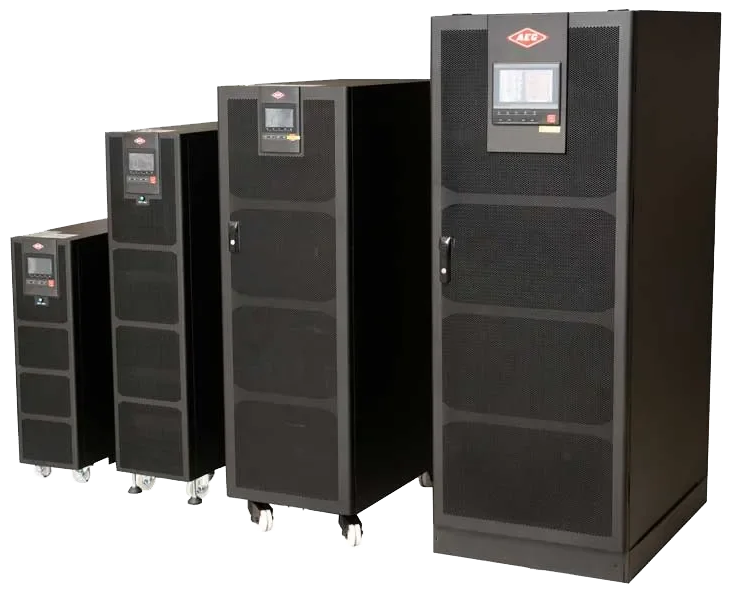

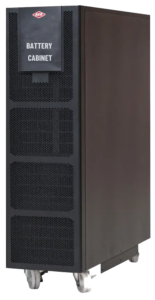

AEC CPSS – Central Power System | 7 Series | 10-200 kVA

SPECIFICATIONS

• Models

  CPSS7-10, CPSS7-20, CPSS7-30, CPSS7-40

• Input — Voltage (VAC)

  80-280 (LN) / 138-485 (LL)

• Input — Frequency (Hz)

  40~70

• Input — Bypass Voltage (VAC)

  380/400/415: -20%~+15%

• Input — Power Factor

  ≥0.99

• Entrance — THDI

  <5 %

• Input — Phases

  3:3 / 3:1 / 1 : 1

• Output — Power (KVA)

  CPSS7-10: 8
  CPSS7-20: 16
  CPSS7-30: 24
  CPSS7-40: 32

• Output — Power Factor

  0.8

• Output — Voltage (VAC)

  LN: 220/230/240±1% LL: 380/400/415±1%

• Output — Frequency (HZ)

  50/60±0.1

• Output — THD

  THD <1% (linear load)
  THD <3% (non-linear load)

• Output — Waveform

  Pure sine wave, THD <1 % linear

• Output — Efficiency

  96%

• Exit — Overload

  Constant up to 120 %

• Batteries - Voltage (VDC)

  CPSS7-10: ±96~±240 configurable
  CPSS7-20, CPSS7-30, CPSS7-40: ±144~±240 configurable

• Batteries - Max. charging current (A)

  1-10 / 1-20 (configurable)

• Batteries - service life

  10-12 years

• Charging time

  <12 hours

• Compliance

  The design complies with CEI EN 62040 requirements

• Noise (DB)

  <65

• Temperature (°C)

  0~40

• Humidity

  0 ~ 95 %

• Dimensions (L×W×H) (mm)

  CPSS7-10, CPSS7-20: 250×755x880

  CPSS7-30, CPSS7-40: 300x785x1250

• Weight (KG)

  CPSS7-10, CPSS7-20: 143

  CPSS7-30, CPSS7-40: 240

• Standards and certificates

  CE (reference standards: safety IEC EN 62040-1; EMC IEC EN 62040-2; classification IEC EN 62040-3)), EN50171

• Model

  CPSS7, CPSS7-10, CPSS7-10-30X40, CPSS7-10-32X40, CPSS7-10-34X40, CPSS7-10-36X40, CPSS7-20, CPSS7-20-30X80, CPSS7-20-32X80, CPSS7-20-34X80, CPSS7-20-36X80, CPSS7-30, CPSS7-30-34X100, CPSS7-30-36X100, CPSS7-30-40X100, CPSS7-40, CPSS7-40-36X100, CPSS7-40-40X100, CPSS7-40-60X80, CPSS7-40-60X100, DRYCNT, SNMP, SE-SA, PAR-CPSS
