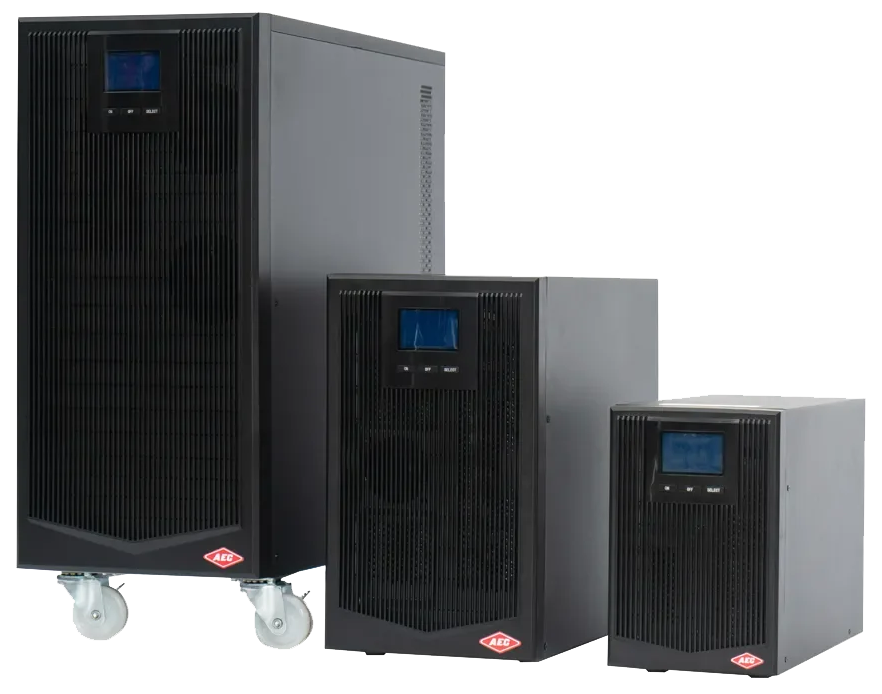

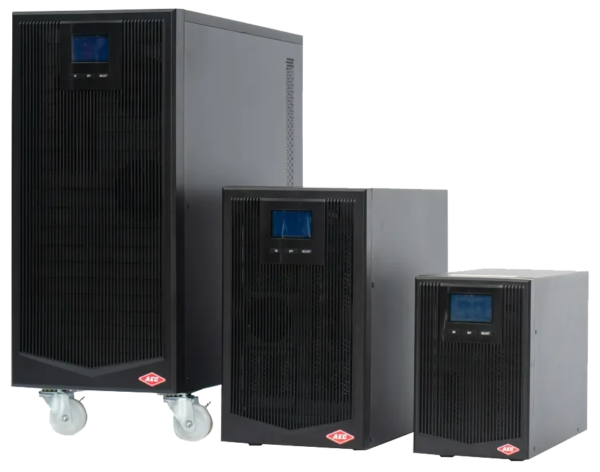

Models
CPSS3-1K, CPSS3-2K, CPSS3-3K, CPSS3-6K, CPSS3-10K
Input — Voltage (VAC)
CPSS3-1K, CPSS3-2K, CPSS3-3K: 120~295
CPSS3-6K, CPSS3-10K: 80~275
Input — Frequency (Hz)
50/60 Hz ±10 % (automatic adjustment)
Input — Power Factor
≥0.99
Entrance — THDI
<5 %
Output — Power (WATT)
CPSS3-1K: 800,
CPSS3-2K: 1600,
CPSS3-3K: 2400,
CPSS3-6K: 4800,
CPSS3-10K: 8000,
Output — Max AC/AC efficiency
CPSS3-1K: 92%,
CPSS3-2K: 93%,
CPSS3-3K: 94%,
CPSS3-6K, CPSS3-10K: 95.5%
Output — Power Factor
0.8
Output — Voltage (VAC)
208/220/230/240 V ±1 % (configurable from display)
Output — Frequency (HZ)
50/60 Hz ±0.2 % (in battery mode)
Output — THDi
CPSS3-1K, CPSS3-2K, CPSS3-3K:
THD <2% (linear load)
THD <5% (non-linear load)
CPSS3-6K, CPSS3-10K:
THD <1% (linear load)
THD <4% (non-linear load)
Exit — Overload
Constant up to 120 %
Batteries - Voltage (VCC)
CPSS3-1K: 36 Vdc
CPSS3-2K: 72 Vdc
CPSS3-3K: 96 Vdc
CPSS3-6K, CPSS3-10K: 192-240Vdc
Batteries - Max. charging current (A)
CPSS3-1K, CPSS3-2K, CPSS3-3K: 1-4,
CPSS3-6K, CPSS3-10K: 1-8
Communication
RS232, EPO, USB (socket)
(SNMP, RS485 + optional dry contact card)
LCD screen
Input/output voltage and frequency, protected load level, battery charge status, temperature, UPS performance and lockout/fault indications.
Alarms
Low batteries, abnormal input, overload, jam/failure, etc.
Protection
Low charge, overload, short circuit, overheating, etc.
Noise (DB)
CPSS3-1K: <50
CPSS3-2K, CPSS3-3K, CPSS3-6K, CPSS3-10K: <55
Temperature (°C)
-5~40
Humidity
0 ~ 95 %
Dimensions (L×W×H) (mm)
CPSS3-1K: 145x360x225,
CPSS3-2K, CPSS3-3K: 190x400x330,
CPSS3-6K, CPSS3-10K: 230x502x553 / 190x422x337 (L)
Weight (KG)
CPSS3-1K: 9.2 or 11.6/4.5
CPSS3-2K: 17.7 or 22.4/8.5
CPSS3-3K: 22.9 or 27.6/9.2
CPSS3-6K: 54.5/10.9
CPSS3-10K: 56.2/12.5
Standards and certificates
CE (reference standards: safety IEC EN 62040-1; EMC IEC EN 62040-2; classification IEC EN 62040-3)), EN50171
Model
CPSS3, CPSS3-6, CPSS3-6-80X9, CPSS3-6-32X24, CPSS3-10, CPSS3-10-32X40, DRYCNT, SNMP, SE-SA, PAR-CPSS
