AEC baterijų spinta | BB4

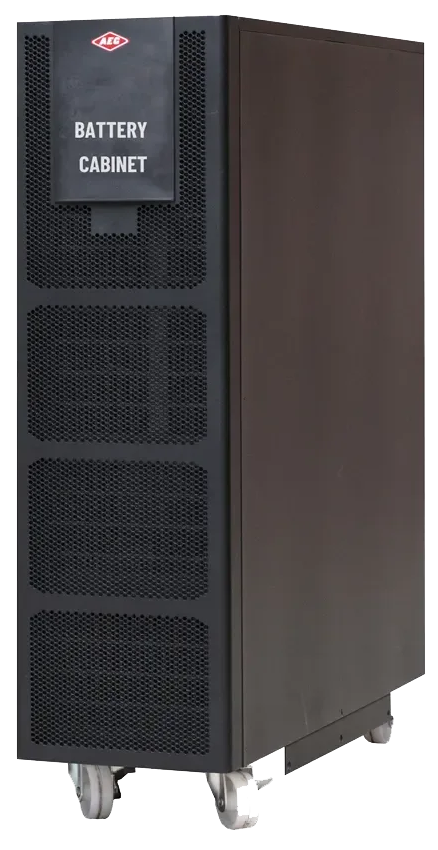

AEC battery cabinet | BB4

UPS

Description

Extend UPS autonomy with AEC BB4 battery cabinet – a device containing batteries that ensure uninterrupted power supply in the event of a power outage.

Advantages:

  • Compatible with IST7 UPS (single-phase and three-phase)
  • Capacity: up to 80× 12 V AGM VRLA 9 Ah batteries
  • Suitable for UPS from 1 to 40 kVA
  • Complies with IEC/EN 62040-1 standard
  • Elegant linear design, RAL 9005 black
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Weight

    40 kg

  • Dimensions

    255 × 755 × 900 cm

  • Number of shelves

    4

  • Max. number of batteries

    80 x 12V 40Ah

  • IP protection

    IP20

  • DC fuses

    32A – 63A

  • Cable entry

    On the right side, top and bottom

  • Color

    RAL9005

  • UPS power compatibility

    From 1 to 40 kVA

  • CE-EC

    IEC-EN 62040-1

AVAILABLE MODELS

DOCUMENTS

  • Catalog – UPS BB4 battery cabinet

    1.89 MB

    Download
