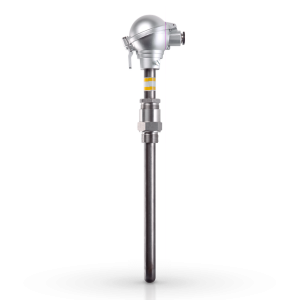

Guenther resistance PT100 temperature sensor 53-WHD

Temperature sensors

Fields of application

53-WHD series resistance thermometers with a protective well are designed for temperature measurement in gases and liquids at high flow rates and pressures up to 700 bar.

Features:

  • Pressure resistance up to 700 bar

  • Suitable for heavy traffic and various media

  • Replaceable mineral insulated measuring input

  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Connection Head

    B (M24 x 1.5), BUSH, BUS, BUZH, BUZ, NA, BBK, DL / MA

  • Neck Tube (Pursuant to DIN 43767)

    With or without threading, made of high grade steel or zinc-plated

  • Thermowell (Pursuant to DIN 43763)

    Cone Length: 40 - 125 mm
    Shaft Length: 50 or 110 mm
    Protective Tube Length: 115 - 260 mm
    Diameter: 18 or 24 mm

  • Mineral-Insulated Gauge Slide

    Mantle Diameter: 1,5 - 8,0 mm
    Tip Diameter: 2,0 - 10,0 mm

    Connection:
    1 x Pt100 up to 3 x Pt100 Ohm
    2-Wire up to 4-Wire

AVAILABLE MODELS

Product codePrice
53-WHD

DOCUMENTS

  • Documentation: Mineral insulated resistance thermometers with weld-in thermowell 53-WHD

    2.25MB

    Download
