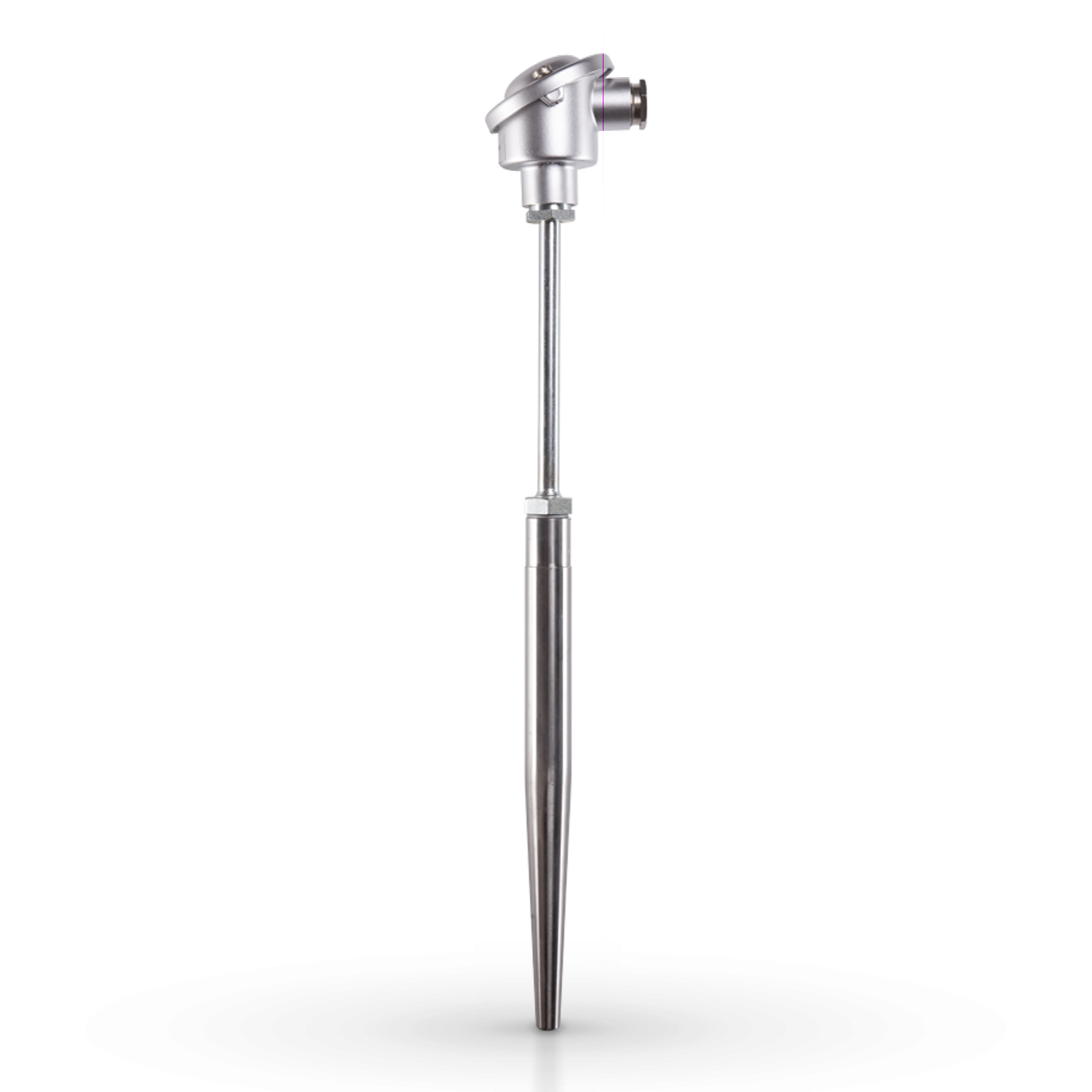

Guenther thermocouple D 12-THD

Temperature sensors

Fields of application

Thermocouples with weld-on protective sleeve (12-THD) are designed for temperature measurement in gaseous and liquid media at high flow rates and pressures up to 700 bar.

Features

  • High pressure resistance

  • Sensor part being replaced

  • Reliable protection and durability

  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Connection Head

    B (M24 x 1.5), BBK, BUS, BUSH,. BUZZ, BUZZ

  • Connection Tube Pursuant to DIN 43767

    With threading:
    M24 x 1,5/M18 x 1,5 Zinc Coated Steel
    M24 x 1,5/M14 x 1,5 or High-Grade Steel

    Also available without thread

  • Thermowell Pursuant to DIN 43772

    Cone Length: 40 - 125 mm
    Shaft Length: 50 or 110 mm
    Thermowell Length: 115 - 260 mm
    Diameter: 18 or 24 mm
    Material: 1.7335, 1.4571, 1.5415

  • Measuring insert

    Sheath Material:
    Inconel 2.4816 Mat. No. 1.4541

    Thermocouple:
    NiCr-Ni / K
    Fe-CuNi / L
    Fe-CuNi / J
    Nicrosil-Nisil / N

    Diameter: 2 - 8 mm Single or Double

AVAILABLE MODELS

Product codePrice
12-THD

DOCUMENTS

  • Documentation: 12-THD - Thermocouples with a weld-in thermowell type D

    2.27 MB

    Download
