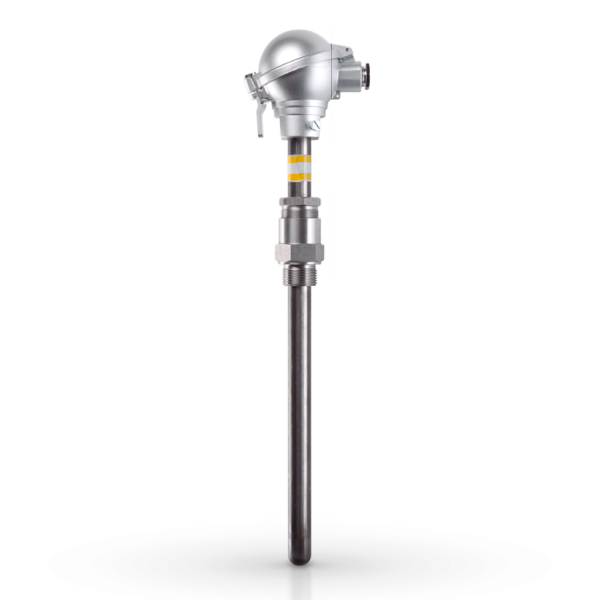

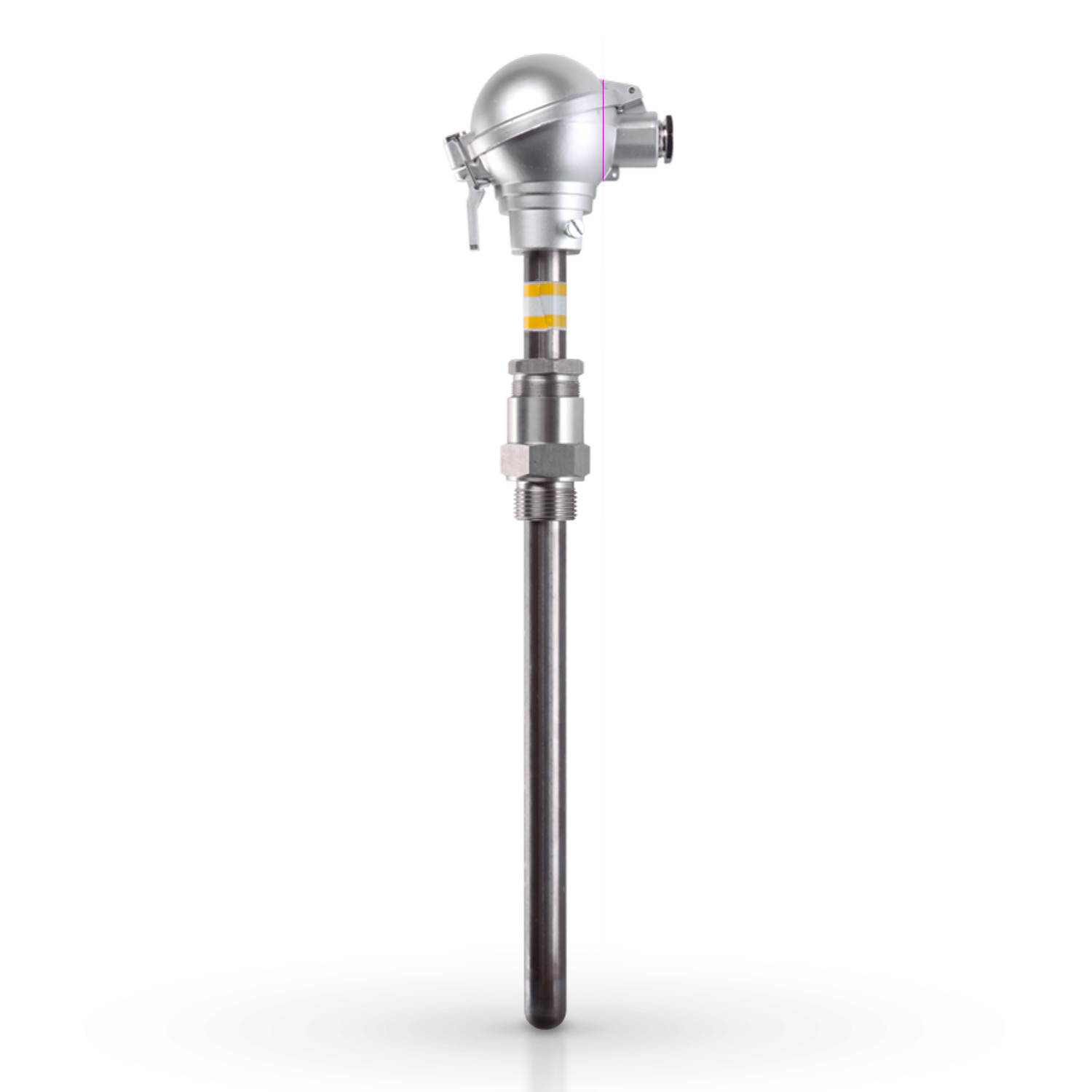

Thermocouples with metal protection tubes and sheathed mineral-insulated gauge slide (10-TMM) are used for general temperature measurement in liquid, gaseous and plastic media up to 1200°C.
Features
Ease of Replacement
Vibration and Impact Resistance
Increased Holding Time
Possibility for Test Bores
SPECIFICATIONS
AVAILABLE MODELS
DOCUMENTS
SPECIFICATIONS
Connection Head
A, B, AUS, BUS, AUZ, BUZ, AUZH, BUZH, AUSH, BBK
Protective Tube (Materials)
St. 35.8 Mat. No. 1.0305
Kanthal AF
Stainless Steel Mat. No. 1.4301
Stainless Steel Mat. No. 1.4571
X18Cr N 28 Mat. No. 1.4749
X10Cr Al 24 Mat. No. 1.4762
X15CrNi Si 25 20 Mat. No. 1.4841
Inconel Mat. No. 2.4816
Heat-Resistant Steel Mat. No. 1.4893
Process Connector (Detachable)
Flange
Threaded Socket
Flange / Counter Flange
Mineral-Insulated Gauge Slide
Sheath Material:
Inconel 2.4816 Mat. No. 1.4541
Thermocouple:
NiCr-Ni / K
Fe-CuNi / L
Fe-CuNi / J
Nicrosil-Nisil / N
Diameter:
1,5 - 8 mm
AVAILABLE MODELS
Product code
Price
10-TMM
DOCUMENTS
Documentation: 10-TMM - Mineral insulated thermocouples with a metal protection tube
