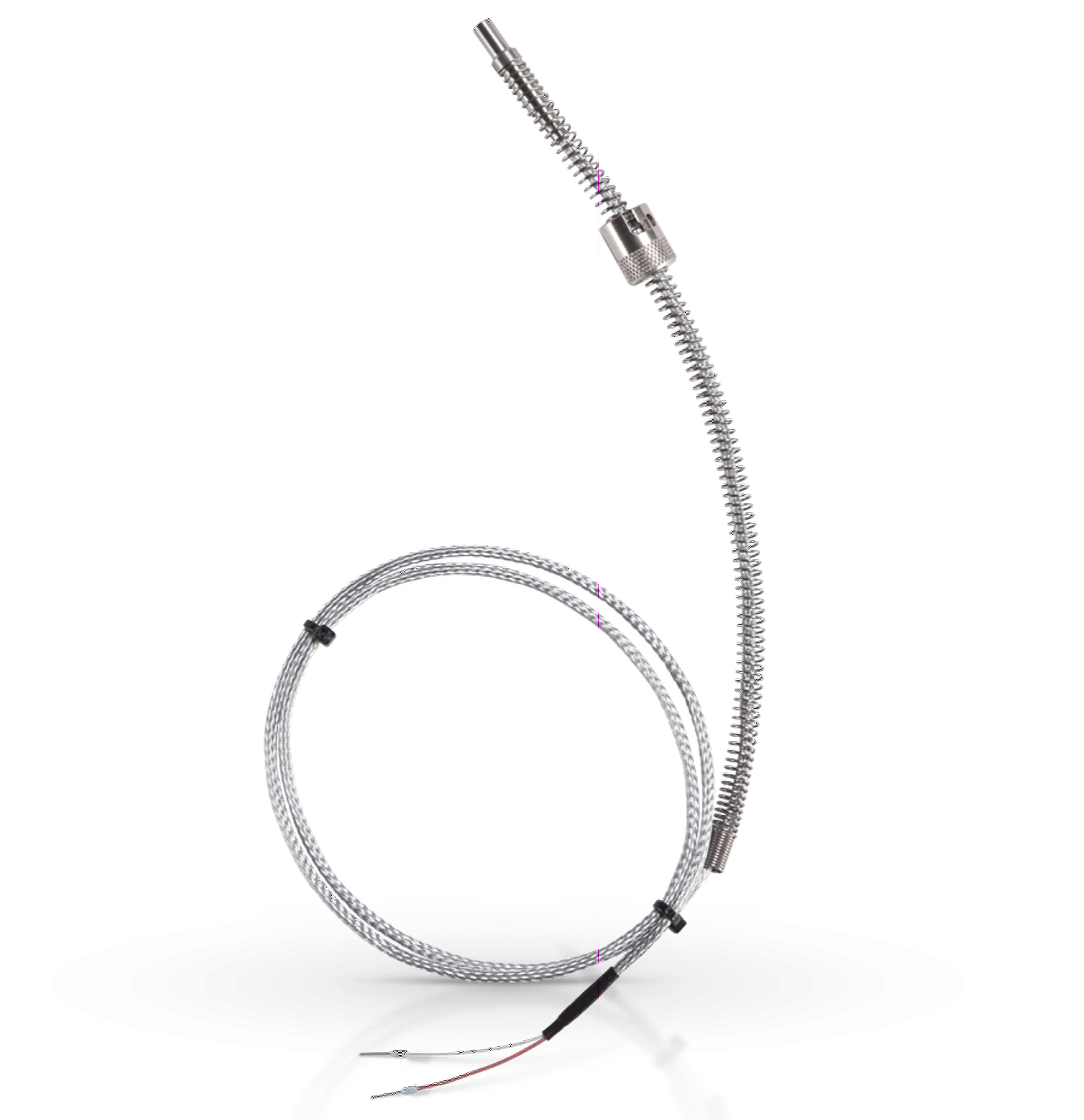

Guenther wired thermocouple 6X-BTF

Temperature sensors

Fields of application

Thermocouples with bayonet connection are used for temperature measurement in machine blocks and molds, mainly in the plastics industry. Available with flat, semi-circular or conical tips.

Features

  • Reliable bayonet connection

  • Stainless steel spring

  • Various measuring tips

  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Measuring element / sensor

    1x Pt100-2 wire
    1x Pt100-3 wire
    1x Pt100-4 wire
    1x NiCr-Ni / Type K
    1x Fe-CuNi / Type J
    1x Fe-CuNi / Type L

  • Measuring tip

    Ø 6 mm flat
    Ø 6 mm cone 118°
    Ø 6 mm rounded
    Ø 8 mm flat
    Ø 8 mm cone 118°
    Ø ...mm other

  • Bayonet lock

    Internal diameter 11 to 16 mm
    Material:
    Nickel plated brass or stainless steel

  • Cable termination

    Free ends
    Free ends (tinned)
    Ferrules
    Plug / socket (Standard)
    Plug / socket (Mini)
    LEMO connector (Plug / socket)

AVAILABLE MODELS

Product codePrice
6X-BTF-2

DOCUMENTS

  • Documentation: 6X-BTF. Temperature probes with bayonet lock

    687.96 KB

    Download
