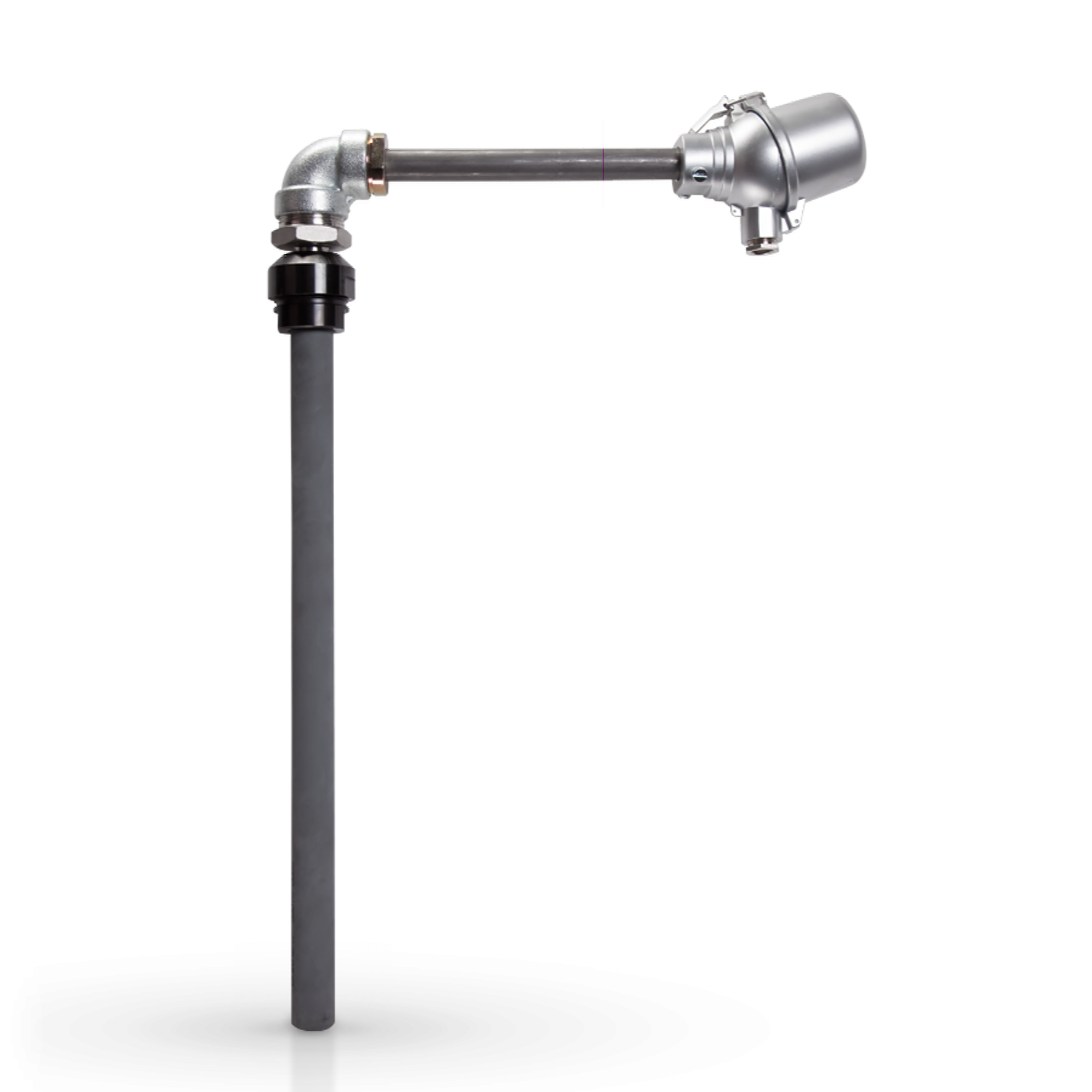

Guenther right angle thermocouple 30-WTE

SPECIFICATIONS

• Connection Head

  A, B, AUS, BUS, AUZ, BUZ, AUZH, BUZH, AUSH, BBK

• Holding Pipe (Materials)

  ST 35.8
  1.4571

• Insertion Tube

  Pure Iron (Techn. Pure) with Prot. Sleeve
  Steel SL 25 Tapered Tip
  Cast Iron GG-22
  Graphite
  Titanium
  Enamelled Steel

  Materials:
  High-Grade Steel 1.4541
  X10CrAl24 1.4762
  X15CrNiSi 25 20 1.4841
  Inconel 2.4816
  SiN (Silicon Nitride)
  SiC (Silicon Carbide)
  Metal-Ceramic
  Quartz Glass

• Inner Tube

  C610
  C799

• Mineral-Insulated Gauge Slide

  NiCr-Ni Typ KI
  Fe-CuNi Typ LV
  Fe-CuNi Typ JV
  Nicrosil-Nisil Typ NI
  Mantle Diameter: 3,0 - 8,0 mm
  Single or Double

• Ceramic Insulated Thermocouple

  NiCr-Ni/K
  Fe-CuNi/L
  Fe-CuNi/J
  Nicrosil-Nisil/N
  PtRh10-Pt/S
  PtRh13-Pt/R
  PtRh30-PtRh6/B
  Single or Double

• Angular Section

  Elbow Pipe 3/4”
  3/8”
  1 1/4”
  1/2”

AVAILABLE MODELS

DOCUMENTS

• Documentation: 30-WTE - Right-angled thermocouples with a threaded right-angled fitting
