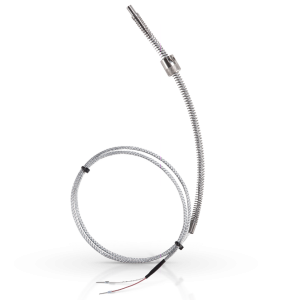

Guenther threaded resistance PT100 temperature sensor 55-WES

Temperature sensors

Fields of application

Threaded mineral insulated resistance thermometers (55-WES) are designed for temperature measurement in low-pressure gaseous, liquid and plastic media up to 800 °C, depending on the protective tube and environmental conditions.

Features

  • Reliable thread mounting design

  • Mineral insulated measuring elements

  • Resistant to high temperatures and various media

  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Connection Head

    B, BUSH, BUS, BUZH, BUZ, NA, BBK, DL / MA

  • Process Connector (Detachable)

    G 1 A
    G 1/2 A
    M18 x 1.5
    G 3/4 A
    M20 x 1.5

    Combined:
    M24 x 1.5 / G 1/2 A
    M10 x 1 / G 1/2 A

  • Outer Protective Tube Materials/Dimensions

    St. 35.8 Mat. No. 1.0305
    Stainless Steel Mat. No. 1.4571
    X10Cr Al 24 Mat. No. 1.4762
    X15CrNi Si 25 20 Mat. No. 1.4841
    Inconel Mat. No. 2.4816
    Kanthal

    Diameter: 6 - 22 mm
    Wall: 0,75 - 3 mm

  • Mineral-Insulated Gauge Slide

    Mantle Diameter: 1,5 - 8,0 mm
    Tip Diameter: 2,0 - 10,0 mm

    Connection:
    1 x Pt100 up to 3 x Pt100 Ohm
    2-Wire up to 4-Wire

  • Configuration

    Straight or Tapered to between 6 and 15 mm

AVAILABLE MODELS

Product codePrice
55-WES

DOCUMENTS

  • Documentation: Threaded mineral Insulated resistance thermometers 55-WES

    2.27 MB

    Download
