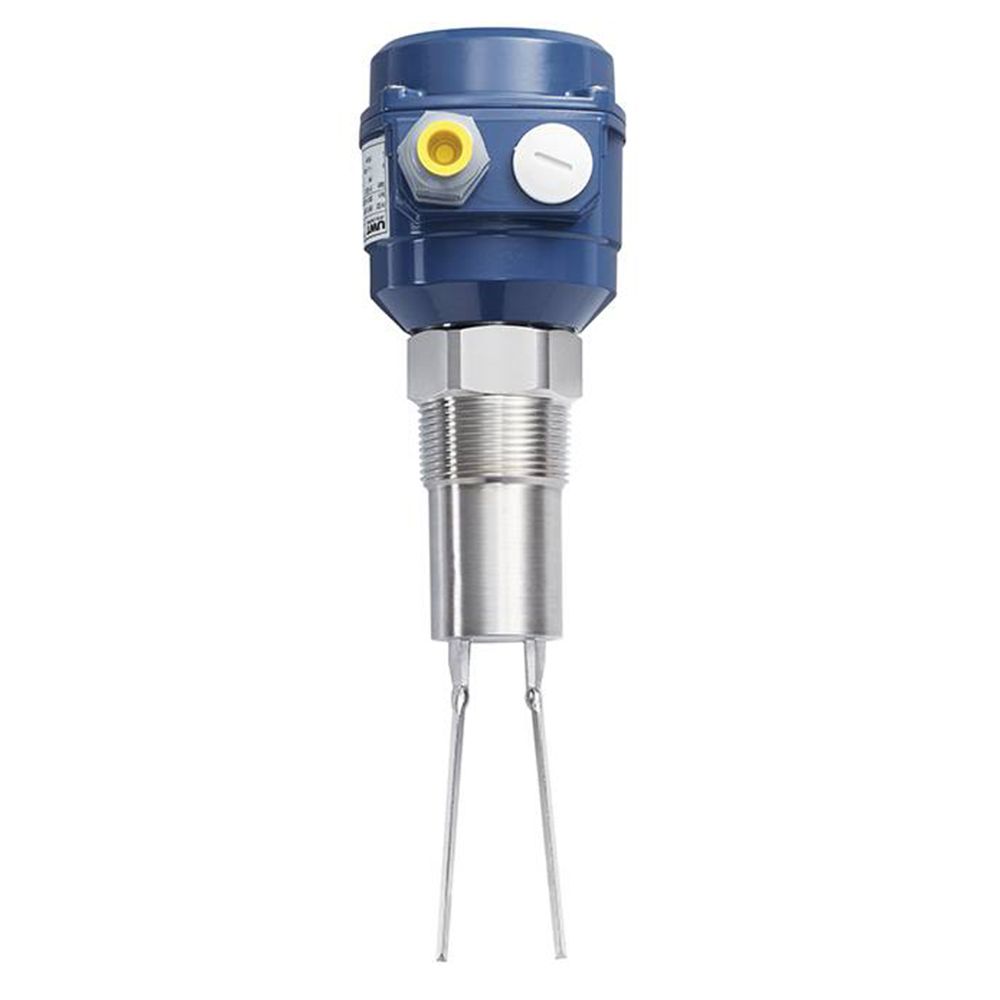

UWT vibrating level sensor Vibranivo® – VN 1020

Level gauges

Application

Vibranivo® VN 1020 – vibrating fork for bulk materials in storage and process vessels, designed to determine fullness, demand and emptiness levels. The short stainless steel extension ensures resistance to high mechanical loads and meets hygiene requirements.

Features

  • Maintenance-free, suitable for a variety of bulk materials
  • Fully stainless steel extension
  • Plug and play, no calibration required
  • SPECIFICATIONS
  • AVAILABLE MODELS
  • DOCUMENTS

SPECIFICATIONS

  • Measuring principle

    Vibration (Fork)
  • Measuring task

    Point level measurement
    Interface level measurement
  • Version

    Short extension
    Interface detection
    Remote version
  • Medium

    Solids
  • Mounting position

    Horizontal
    Angled (in the cone)
    In down Pipes
  • Ambient temperature

    -40°C … +60°C (-40°F … +140°F)
  • Process temperature

    -40°C … +150°C (-40°F … +302°F)
  • Process pressure

    -1 bar … +16 bar (-14.5 psi … +232 psi)
  • Minimum sensitivity

    > 50 g/l (> 3 lbs/ft3)
  • Housing type

    Standart
  • Housing material

    Aluminium
  • Housing protection rating

    IP66
  • Threaded connection

    ≥ R 1 1/2"
    ≥ NPT 1 1/2"
  • Flange connection

    ≥ DN100
    ≥ 2"
  • Hygienic fittings

    ≥ Triclamp 2"
  • Wetted materials

    Stainless steel 1.4305 (303)
    Stainless steel 1.4404 (316L)
    Stainless steel 1.4541 (321)
  • Accuracy

    ---
  • Mechanical load

    Oscillating rods: 0,6 kN
  • Min. immersion length

    165 mm (6.5")
  • Max. immersion length

    165 mm (6.5")
  • Power supply

    19...230V AC
    12.5...36V DC
    Universal voltage (19...55V DC / 19...230V AC)
  • Signal output

    Relay SPDT
    Relay DPDT
    Transistor PNP
    8/16mA
    4-20mA
  • Certificates

    CE
    ATEX
    IEC-Ex
    INMETRO
    TR-CU
  • Ex markings

    Ext
    Ex i
  • Hygienic / Pharma

    EC 1935/2004
    FDA
  • Ship approval

    ---
  • Overfill protection

    ---
  • SIL qualification

    ---
  • Further approvals

    ---
  • User Interface

    ---
  • Optical indicator

    LED
  • Features

    Adjustable sensitivity
    Adjustable output delay
    Switchable logic (Fail Safe High - Fail Safe Low)

AVAILABLE MODELS

Product code Price
MS 1020

DOCUMENTS

  • Instruction manual

    506.64 KB

    Download
  • Product Configuration - Technical Notes

    1.58 MB

    Download
  • Product information sheet

  • Product information sheet Interface

    2.27 MB

    Download
  • Spare Parts and Accessories

    1.65MB

    Download
  • Technical information

    2.01 MB

    Download
